| Amperage Rating | : | 2 A |
| Bearing Type | : | Ball |
| Enclosure Type | : | NEMA 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/3 hp |
| Insulation Class | : | Class B |
| Number of Speeds | : | 1 |
| Overall Width | : | 11.4 in |
| Phase | : | 1 ph |
| Shaft Size | : | 1/2 in Dia x 6 in L |
| Speed Rating | : | 1075 rpm |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 208 to 230 V |
FAST® Parts Condenser Fan Motors are designed as a universal PSC replacement for vertical shaft- up or shaft-down applications. Shell and end shields are closed for protection against weather. All FAST® Parts Condenser Fan Motors feature reversible rotation and thru bolt or band mounting for air conditioning or heat pump applications.

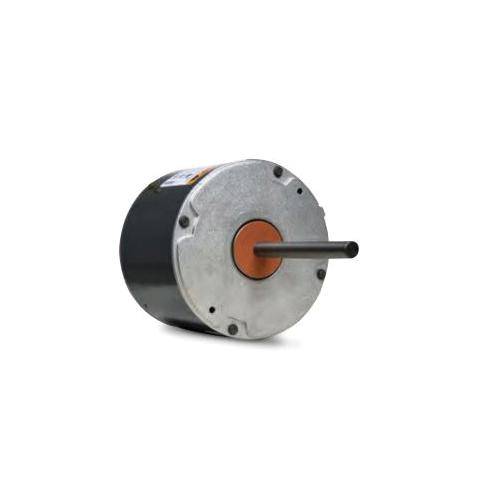

ICP™ Condenser Fan Motor, 1/3 hp HP Rating, 208 to 230 V, 2 A, 60 Hz, 1 ph, 1075 rpm Speed Rating, 1 Speed, NEMA 48, 1/2 in Dia x 6 in L Shaft, Ball Bearing, 140 deg F, Insulation Class: Class B, 11.4 in Overall Width
- 5.6 in Dia totally enclosed air over TEAO
- Extended studs, all angle-mount
- 30 in leads
- Rheem® shell mounting holes
- Reversible rotation
- Automatic reset thermal overload protector
- Continuous-duty
