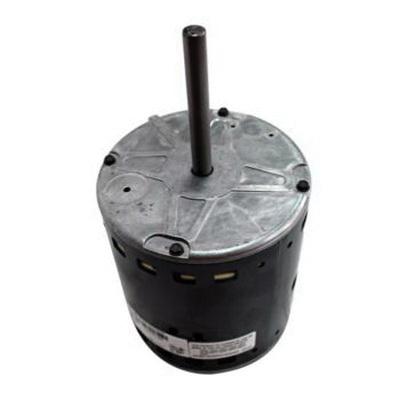

ICP™ 1177999 Blower Motor, 208/230 V, 6 A, 3/4 hp, 1200 rpm Speed, 1 ph -Phase, 60 Hz, 48 Frame

ICP™ 1177999 Blower Motor, 208/230 V, 6 A, 3/4 hp, 1200 rpm Speed, 1 ph -Phase, 60 Hz, 48 Frame

Brand: ICP™
Part #: 14912
Customer Part #:
Amperage Rating      :      6 A
Bearing Type      :      Ball
Dimensions      :      3-59/64 in L
Drive Type      :      Direct
Frame Size      :      48
Frequency Rating      :      60 Hz
HP Rating      :      3/4 hp
Mounting Type      :      Band
Number of Speeds      :      5
Phase      :      1 ph
Rotation Type      :      Counter-Clockwise
Service Factor      :      1
Shaft Size      :      1/2 in Dia
Speed Rating      :      1200 rpm
Voltage Rating      :      208/230 V

ICP™ Blower Motor, 208/230 V, 6 A, 3/4 hp, 1200 rpm, 1 ph Phase, 60 Hz, 48 Frame, 1/2 in Dia Shaft, Counter-Clockwise Rotation, 5 Speed, Ball Bearing, Band Mounting, Direct Drive, 1 Service Factor, 3-59/64 in L
