| Additional Information | : | 150 kA Maximum Surge Current, TFMOV Surge Protection, 50/60 Hz Frequency, -40 to 185 deg F Temperature Rating, NEMA 4X Enclosure |
| Normal Discharge Current | : | 20 kA |
| Overall Depth | : | 2.3 in |
| Overall Length | : | 4.3 in |
| Overall Width | : | 4.1 in |
| Short Circuit Rating | : | 200 kA |
| Voltage Rating | : | 120/208/240 VAC |

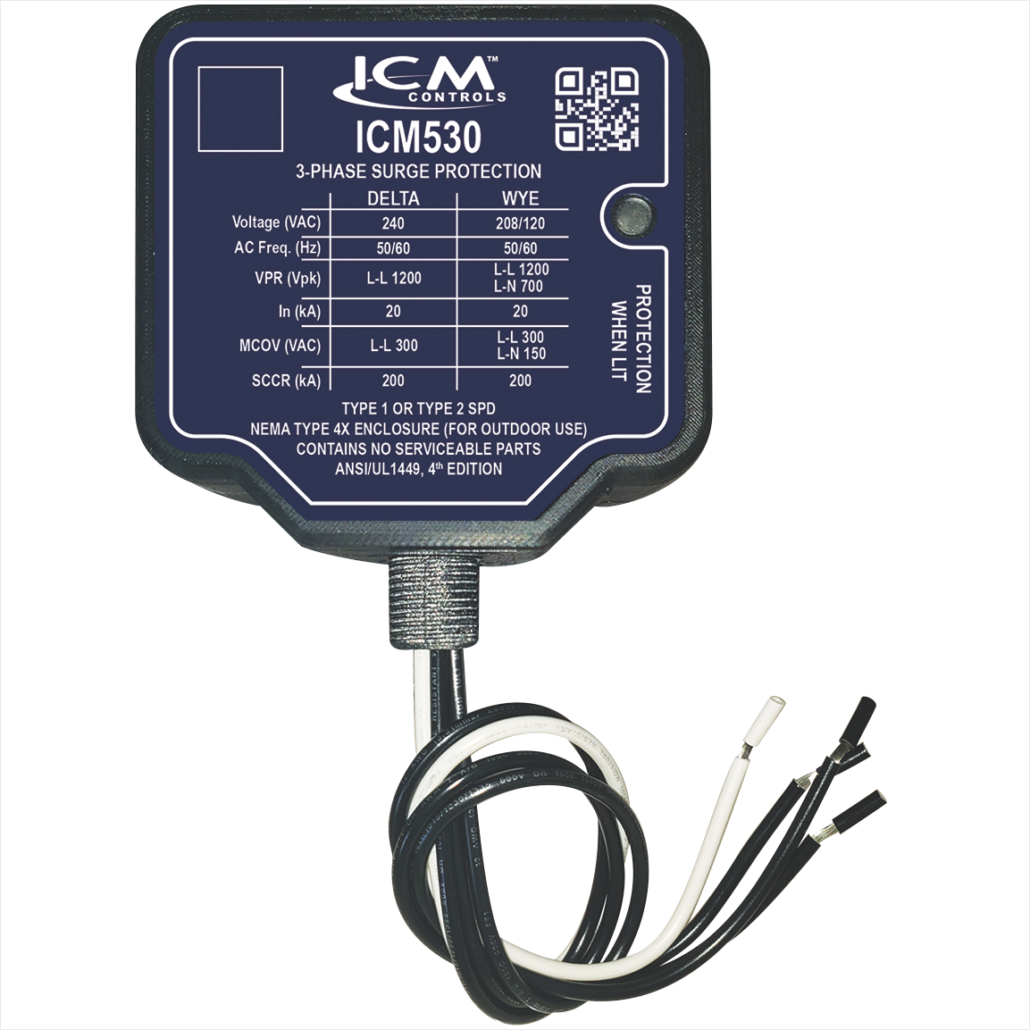

The ICM530 Series is 4 models of Type 1 and Type 2 three-phase Surge Protective Devices for three-phase Delta and three-phase Wye configurations. When a surge occurs, the ICM three-phase surge suppressor will absorb the surge up to the specified limitations of the device. ICM incorporates superior thermally protected metal oxide varistor technology into the three-phase surge suppressors, which allows for safe disabling of the surge elements when a surge exceeds the thermal limits of the device. There is a single status light on the controls which identifies operational status when illuminated. The ICM 3-phase surge suppressors can be installed as a Type 1 or Type 2 device for both indoor and outdoor applications.
ICM™ Surge Protector, 120/208/240 VAC, 20 kA Normal Discharge Current, 200 kA Short Circuit, 4.3 in Overall Length, 4.1 in Overall Width, 2.3 in Overall Depth, Additional Information: 150 kA Maximum Surge Current, TFMOV Surge Protection, 50/60 Hz Frequency, -40 to 185 deg F Temperature Rating, NEMA 4X Enclosure
- Delta or Wye Configuration
- NEMA Type 4X watertight plastic enclosure for outdoor and indoor installation
- Green LED indicates surge protection present
- Easily connects to electrical panel or disconnect for indoor and outdoor applications
- UL Listed Type 1 or Type 2 SPD
