| Additional Information | : | 0.5 to 10 min Anti-Short Cycle Delay, 1 to 5 and Auto Number of Retries, 195/264 VAC Line Voltage, +/-2% Accuracy, 60 FLA, 360 LRA Contactor Rating, NEMA 3R Enclosure, -40 to 167 deg F Operating Temperature |
| Dimensions | : | 8.25 in L x 10.25 in W x 6.37 in H |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Hole |
| Voltage Rating | : | 200/240 VAC |

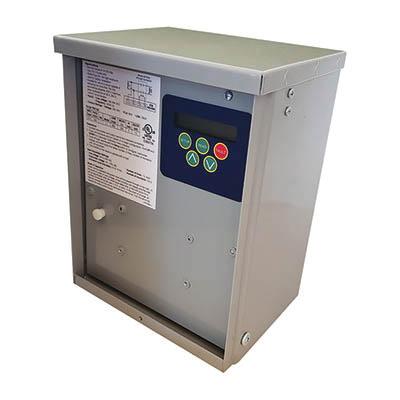

The ICM493-60A is an advanced, single-phase line voltage monitor with a bank of surge arresters for added protection against brownouts, lightning strikes, power outages & recoveries, startup of larger equipment, power grid faults, short circuits and more. Includes a built-in 60A contactor to support larger systems. Housed in a NEMA Rated 3R enclosure for outdoor installations. UL Listed. Installs easily between the service disconnect and the condensing unit.
ICM™ Single-Phase Line Voltage Monitor, 200/240 VAC, 50/60 Hz, Hole Mounting, 8.25 in L x 10.25 in W x 6.37 in H, Additional Information: 0.5 to 10 min Anti-Short Cycle Delay, 1 to 5 and Auto Number of Retries, 195/264 VAC Line Voltage, +/-2% Accuracy, 60 FLA, 360 LRA Contactor Rating, NEMA 3R Enclosure, -40 to 167 deg F Operating Temperature
- Protects against over and under voltage, rapid short cycling caused by transients, and high-power surges
- Programmable set points to determine cutoff
- Fault history feature records and retains the most recent occurred faults in non-volatile memory
- Bank of five L-L Surge Arresters
- Built-in 60A Contactor
- Easy to view, backlit digital display
- Waterproof, NEMA-Rated 3R enclosure for outdoor use
- Easy installation and setup
