| Amperage Rating | : | 1 A |
| Dimensions | : | 2-7/8 in L x 3-1/2 in W x 1 in H |
| Frequency Rating | : | 50/60 Hz |
| Temperature Rating | : | -40 to 167 deg F |
| Time Delay | : | 10 min Defrost, 0 to 5 s Power on Reset |
| Voltage Rating | : | 18-30 VAC, 24 VAC Output |

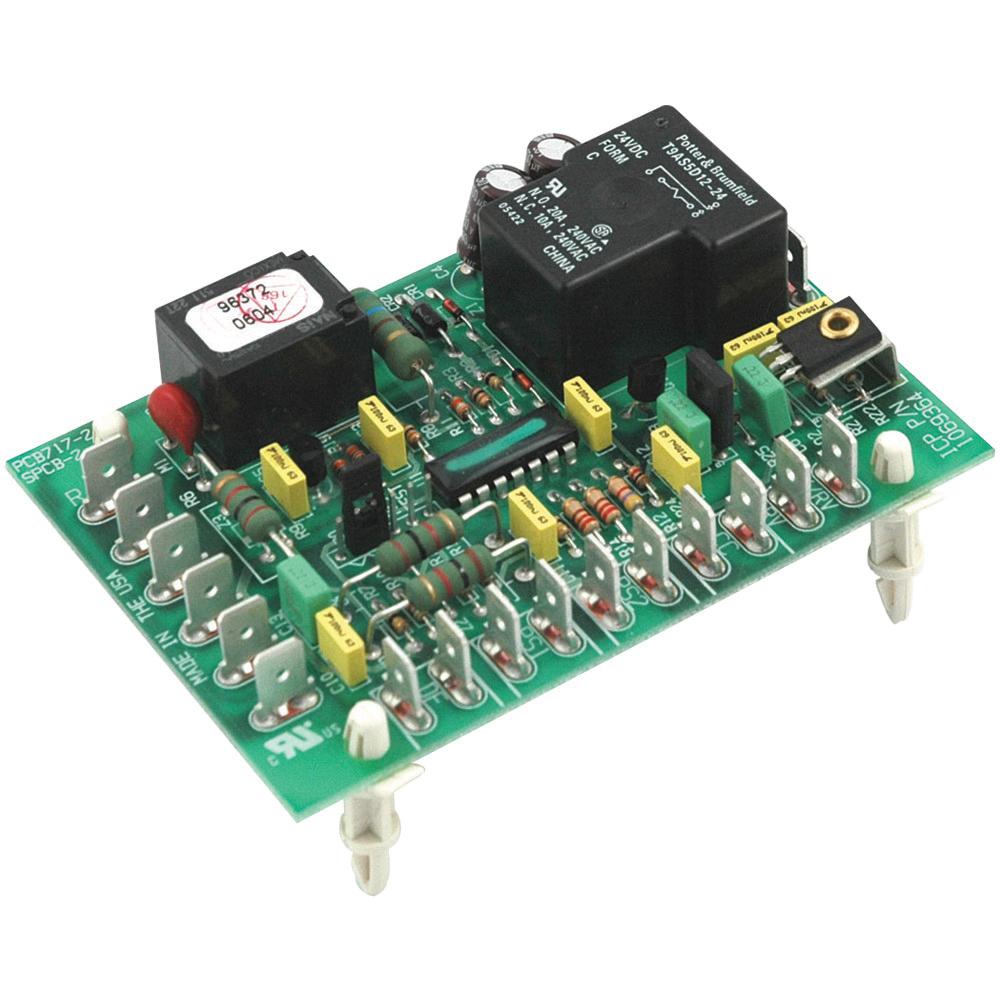

ICM™ Defrost Control Board, 18-30 VAC, 24 VAC Output, 1 A, 50/60 Hz, 10 min Defrost, 0 to 5 s Power on Reset Time Delay, -40 to 167 deg F, 2-7/8 in L x 3-1/2 in W x 1 in H
- Replacement for ICP 1069364
- Sensor input for defrost terminate
- Time and temperature terminate
- Integral short cycle protection
- Y input tracks compressor run times
- Cool active reversing valve
- 30/60/90 min interval time between defrost
- Surface-mount using (4) #6 or #8 screws
- Three min anti-short cycle
- Short across test terminals (before applying power) reduces test time by 256x
