| Dimensions | : | 4-1/2 in L x 1-3/4 in H |
| Material | : | Silicon Carbide |
| Suitable For Use With | : | B1370735S, PCBFM131S Blowers |
| Temperature Rating | : | -20 to 200 deg F |
Upon application of power to the G terminal, the ICM277 recognizes a call for the blower and a 7 s delay on make period begins. After the 7 s on delay, the control energizes the blower motor. Upon removal of power from the G terminal, the board will keep the blower on for an additional 65 s. At the end of the 65 s off delay, the blower will shut off.

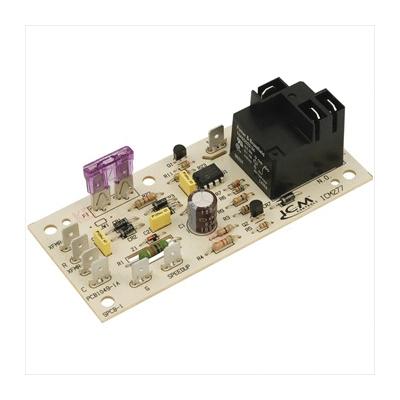

ICM™ Fan Blower Control Board, Material: Silicon Carbide, Suitable For Use With: B1370735S, PCBFM131S Blowers, Temperature Rating: -20 to 200 deg F, Dimensions: 4-1/2 in L x 1-3/4 in H
- Microprocessor based design for precise timing
- Dual function 7 s on delay/65 s off delay
- Speed up terminals for test mode
- Fuse protected control voltage
- High power relay output
