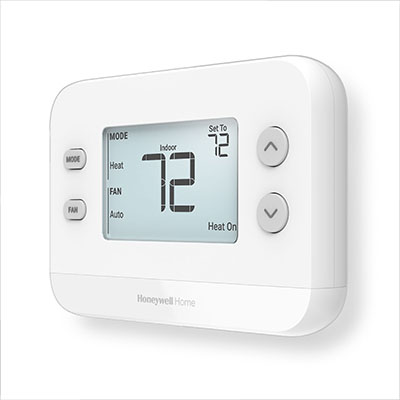

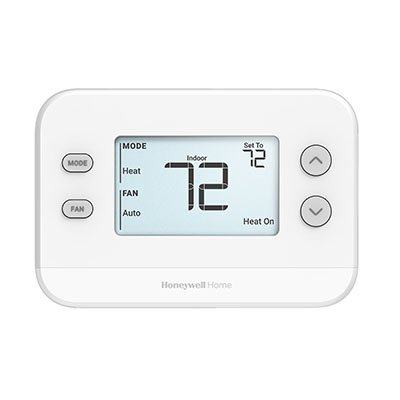

Honeywell FocusPRO® N100 Series TH1110U4000/U Non-Programmable Thermostat, 20 to 30 V, 0.02 to 1 A, 1
Honeywell FocusPRO® N100 Series TH1110U4000/U Non-Programmable Thermostat, 20 to 30 V, 0.02 to 1 A, 1
| Accuracy | : | 1 deg F |
| Additional Information | : | 4.09 sq-ft Display Area |
| Amperage Rating | : | 0.02 to 1 A |
| Changeover | : | Auto/Manual |
| Color | : | White |
| Cool Current | : | 0.02 to 1 A |
| Differential Temperature | : | +/-1 deg F |
| Dimensions | : | 3.438 in H x 5.125 in W x 1.188 in D |
| Display Type | : | Digital |
| Fan Current | : | 0.02 to 0.05 A |
| Frequency Rating | : | 60 Hz |
| Heat Current | : | 0.02 to 1 A |
| Humidity Rating | : | 5 to 90 % |
| Power Source | : | Battery/Hardwired |
| Series | : | N100 Series |
| Stages | : | 1 |
| Switch Position | : | HEAT-OFF-COOL-AUTO (System) |
| Switch Type | : | Relay |
| Temperature Rating | : | 32 to 120 deg F |
| Temperature Settings | : | 50 to 99 deg F Cooling, 32 to 90 deg F Heating |
| Voltage Rating | : | 20 to 30 V |
The Honeywell Home FocusPRO® N100 is designed for pro ease-of-use and profitability. It reduces job complexities and time on-site while supporting recurring business thanks to its broad system compatibility, UWP® wall plate, large display and clear font, snap-on private label and competitive price.
Honeywell Non-Programmable Thermostat, Series: N100 Series, 20 to 30 V, 0.02 to 1 A, 60 Hz, Auto/Manual Changeover, 1 Stages, HEAT-OFF-COOL-AUTO (System) Switch Position, Relay Switch, Digital, +/-1 deg F Differential, 50 to 99 deg F Cooling, 32 to 90 deg F Heating Temperature Settings, 32 to 120 deg F, 5 to 90 % Humidity Rating, 0.02 to 1 A Cool Current, 0.02 to 0.05 A Fan Current, 1 deg F Accuracy, 0.02 to 1 A Heat Current, Battery/Hardwired, 3.438 in H x 5.125 in W x 1.188 in D, White, Additional Information: 4.09 sq-ft Display Area
- Supports single-stage 1H/1C for TH1110U4000/U or up to 3H/2C heat pump and 2H/2C conventional for TH1320U4002/U
- UWP® wall plate supports speedy installation and easy upgrade
- Private label with customized snap-on accent piece
- Large display with clear font
- Optional always-on backlight when hardwired
- Customizable display settings
- Intuitive interface for easy navigation
- Choose to receive filter reminders
- Heat low limit defaults to 40degF (4degC) but configurable to 32degF (0degC) for garage applications
- Dual fuel compatible
- Wired outdoor sensor compatibile
- Fan lockout after cool call option
- 5-year warranty
