| Alarm Load Rating | : | Pilot Duty:75 V-A at 120/240 VAC, 25 V-A at 24 V, Resistive:1.5 A at 120/240 V, 3 A at 24 V 50/60 Hz |
| Contact Rating | : | Full Load: 7.4 A at 120 VAC, 3.7 A at 240 VAC, Locked Rotor: 44.4 A at 120 VAC, 22.2 A at 240 VAC |
| Dimensions | : | 4-3/8 in W x 4-1/8 in H x 2-1/2 in D |
| Frequency Rating | : | 50/60 Hz |
| Temperature Rating | : | -40 to 130 deg F |
| Voltage Rating | : | 120/220/240 V |

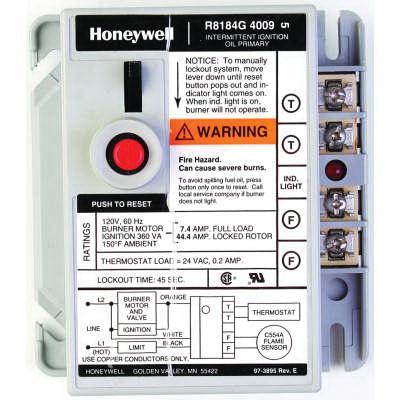

Honeywell Oil Burner Control with Safety Timing, 120/220/240 V, Pilot Duty:75 V-A at 120/240 VAC, 25 V-A at 24 V, Resistive:1.5 A at 120/240 V, 3 A at 24 V 50/60 Hz Alarm Load, Full Load: 7.4 A at 120 VAC, 3.7 A at 240 VAC, Locked Rotor: 44.4 A at 120 VAC, 22.2 A at 240 VAC Contact, 50/60 Hz, -40 to 130 deg F, 4-3/8 in W x 4-1/8 in H x 2-1/2 in D
- Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat
- Solid state flame sensing circuit
- LED on terminal strip indicates system lockout
- Remote lockout indication
- Enclosed safety switch with external reset button
- Manual trip lever opens safety switch for system maintenance
- Mounts on standard 4 x 4 in junction box
- C554A cadmium sulfide flame detector and 24 VAC thermostat required
- With 30 sec safety timing, alarm outputs and manual safety switch
