| Body Material | : | ABS |
| Dimensions | : | 11-1/4 in H x 5-5/16 in W x 6-5/16 in D |
| Electrical Connection | : | Screw Terminal |
| Enclosure Type | : | IP54 |
| Frequency Rating | : | 50/60 Hz |
| Stroke | : | 3/4 in |
| Temperature Rating | : | 14 to 122 deg F |
| Timing Range | : | 90 s |
| Torque Rating | : | 135 ft-lb |
| VA Rating | : | 12 VA |
| Valve Design | : | Spring Return |
| Voltage Rating | : | 24 V |

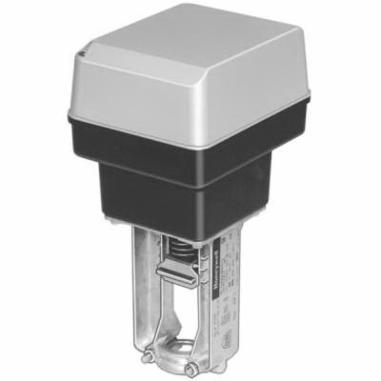

The ML6425 spring return electric linear valve actuators are floating control actuators used with controllers that provide a switched or floating SPDT output. These actuators operate standard Honeywell valves in heating, ventilating and air conditioning (HV) applications. The ML7425 spring return electric linear valve actuators are modulating control actuators used with controllers that provide an analog output of 0 to 10 VDC or 2 to 10 VDC. These actuators operate standard Honeywell valves in heating, ventilating and air conditioning (HV) applications. An internal selector can be used to reverse the direction of action.
Honeywell Electric Linear Valve Actuator, 24 V, 50/60 Hz, VA Rating: 12 VA, Screw Terminal Electrical Connection, 90 s Timing, 135 ft-lb Torque, 3/4 in Stroke, IP54 Enclosure, Spring Return Valve Design, ABS Body, 14 to 122 deg F, 11-1/4 in H x 5-5/16 in W x 6-5/16 in D
- Easy and quick installation on valves with 1-3/8 in bonnet and 3/4 in stroke
- No separate linkage required
- Conduit connector standard
- No adjustments required on linkage
- Accurate valve positioning
- Low power consumption
- High close off ratings
- Force limiting end switches
- Internal manual operator
- Synchronous motor
- Maintenance-free design
- Directly on V5011/V5013 globe valves and VGF flanged globe valves (3/4 in stroke) mounting
- IP54, class i insulation environmental, electrical or ingress protection rating
- Valve actuator type
- 0 to 10 VDC, 2 to 10 VDC control signal
- Stem-down on power failure fail safe mode or spring return direction
- Conduit connector and one knockout on actuator case cable
- Manual override winding operation
