| Dimensions | : | 5-1/2 in W x 8-3/4 in D x 6-7/16 in H |
| Electrical Connection | : | Quick-Connect Terminal |
| Enclosure Type | : | NEMA 3 |
| Frequency Rating | : | 50/60 Hz |
| Material | : | Die-Cast Aluminum |
| Mounting Type | : | Foot |
| Temperature Rating | : | -40 to 60 deg C Ambient |
| Timing Range | : | 30 to 60 s Nominal Travel |
| Torque Rating | : | 6.8 N-m |
| VA Rating | : | 20 VA |
| Voltage Rating | : | 24 V |

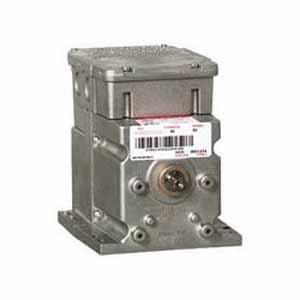

Honeywell Electric Actuator, 24 V, 50/60 Hz, 20 V-A VA, Quick Connect Terminal Electrical Connection, 30 - 60 sec (Nominal) Travel Timing, Die-Cast Aluminum, 6.8 N-m Torque, -40 to 60 deg C Ambient, NEMA 3 Enclosure, 5-1/2 in W x 6-7/16 in H x 8-3/4 in D, Foot Mounting
- Clockwise (as viewed from power end) (normally closed) shaft rotation
- 160 deg factory stroke setting
- Dual ended shaft
- Oil immersed motor and gear train for reliable performance and long life
- Fixed 90 or 160 deg symmetrical stroke
