| Accuracy | : | +/-1.5 deg F Temperature, +/-5% RH Humidity |
| Additional Information | : | For use with RedLINK™ Enabled Thermostats and Accessories |
| Amperage Rating | : | 0.5 to 1 A |
| Color | : | Arctic White |
| Display Type | : | TFT |
| Frequency Rating | : | 50/60 Hz |
| Humidity Rating | : | 5 to 90 % |
| Programmability | : | 7-Day Programming |
| Series | : | Prestige® Series |
| Stages | : | 3 Heat/2 Cool Heat Pump, 4 Heat/2 Cool Conventional |
| Temperature Rating | : | 32 to 120 deg F |
| Temperature Settings | : | 40 to 90 deg F Heat, 50 to 99 deg F Cool |
| Voltage Rating | : | 18-30 VAC |
The Prestige® IAQ 2.0 thermostat is a 2 wire high definition color touch screen thermostat, 7 day programmable, configurable for residential and light commercial, up to 4 heat / 2 cool heat pump and up to 3 heat / 2 cool conventional, controls humidification, dehumidification and ventilation, provides Delta T Alerts and Diagnostics, works with the Equipment Interface Module and RedLINK™ accessories including the RedLINK™ Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor and Wireless Indoor Sensor.

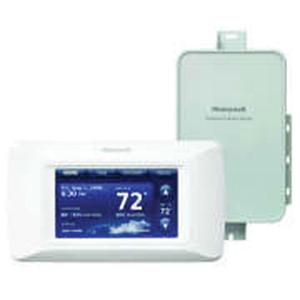

Honeywell Home SD Comfort System Kit, Prestige® Series, 18-30 VAC, 0.5 to 1 A, Arctic White, 5 to 90 % Humidity Rating, +/-1.5 deg F Temperature, +/-5% RH Humidity Accuracy, TFT Display, 50/60 Hz, 40 to 90 deg F Heat, 50 to 99 deg F Cool Temperature Settings, 3 Heat/2 Cool Heat Pump, 4 Heat/2 Cool Conventional Stages, 7-Day Programming Programmability, 32 to 120 deg F, Additional Information: For use with RedLINK™ Enabled Thermostats and Accessories
- Control heating, cooling and IAQ equipment with only 2 wires at the thermostat. Heating, cooling and IAQ equipment wires to the Equipment Interface Module
- Patented interview based programming and installer setup
- RedLINK™ wireless communication
- Increase profit per job by including RedLINK™ accessories that provide comfort and convenience. RedLINK™ accessories include the RedLINK™ Internet Gateway, Portable Comfort Control (PCC), Wireless Outdoor Sensor, Wireless Indoor Sensor, TrueSTEAM™ humidifier with Wireless Adapter and TrueZONE® zoning panel with Wireless Adapter
- Configurable for residential and light commercial applications. Meets commercial code and is title 24 compliant
- Light commercial - commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback, economizer and time of day
- Delta T Alerts and Diagnostics informs customers when their system is not operating as expected with instructions to contact the dealer. Provides a sense of security and greater comfort while generating repeat business
- All Prestige® IAQ 2.0 systems come standard with a return and discharge air temperature sensor to measure Delta T
- Alerts and User Interactions Log - Keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by user error. Saves time in troubleshooting and points the technician in the right direction
- Customizable Service Reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts
- USB port for transferring Installer Setup, Customizable Reminders, Custom Events and Holidays to multiple thermostats
- 3 assignable outputs to control humidification, dehumidification, ventilation and a stage of heating or cooling
- 2 assignable inputs can be used with wired sensors, remote setback or dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak
- Tri-lingual - English, French and Spanish display options
- Precise temperature control (+/-1 F) for reliable and consistent temperature
- Multiple staging options to provide comfort or energy savings
