| Actuator Type | : | Close-Off |
| Body Material | : | BRASS |
| Connection Type | : | Sweat |
| Disc Material | : | Buna-N |
| End Connection | : | 1/2 INCH SWEAT X 1/2 INCH SWEAT |
| Flow Coefficient (Cv) | : | 2.5 Cv |
| Material | : | Brass |
| Nominal Size | : | 1/2 in |
| Normal Condition | : | OPEN |
| Number of Ways/Position | : | 2-Way |
| Overall Length | : | 2 5/8 INCH |
| Packing Material | : | EPDM |
| Pressure Rating | : | 300 psi |
| Seal Material | : | EPDM |
| Seat Material | : | Brass |
| Service | : | WATER, GLYCOL |
| Specifications | : | Nominal Size: 1/2 INCH|End Connection: 1/2 INCH SWEAT X 1/2 INCH SWEAT|Temperature Rating: 34 TO 125 DEG F|Pressure Rating: MAXIMUM 300 PSIG|Body Material: BRASS|Stem Material: BRASS |
| Stem Material | : | Brass |
| Temperature Rating | : | 34 to 125 deg F |
Two-way, high pressure,Fan Coil zone valves (VU52 and VU523), are used to control flow of hot/chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors. IMPORTANT: Not for use in systems containing dissolved oxygen.

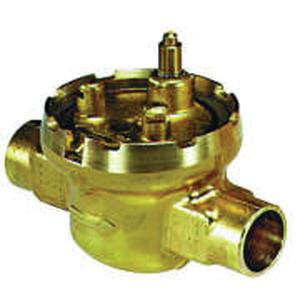

Honeywell Home Fan Coil Valve, 1/2 in Nominal, Sweat Connection, Number of Ways/Position: 2-Way, 300 psi, 2.5 Cv Flow Coefficient (Cv), Brass Stem, EPDM Packing, Buna-N Disc, Brass Seat, EPDM Seal, Brass, Close-Off Actuator, 34 to 125 deg F
- Compact construction for easy installation
- Fits under the cover of most baseboard convectors with actuator fitted to valve body
- VU52 and VU53 provide 2-way, straight-through control of water
- Available in normally closed (VU53) or normally open (VU52) configurations
- 300 psi (2,000 kPa, PN20) operating pressure rating
- Patented ball seal provides long service life, soft close off
- Triple O-ring seal provides three lines of defense against corrosion and water leakage around drive shaft
- Quick opening flow curve
- Available with NPT end connections for iron or steel piping
