| Actuator Type | : | On-Off |
| Additional Information | : | 5 to 95% RH, Non-Condensing Operating Humidity Range |
| Body Material | : | Plastic |
| Configuration | : | SPST |
| Dimensions | : | 2-3/4 in H x 3-3/4 in W x 2-3/4 in |
| Electrical Connection | : | 39 in Cable |
| Enclosure Type | : | IP40 |
| Frequency Rating | : | 50/60 Hz |
| Number of Ways/Position | : | 2-Position |
| Operator Type | : | Manual |
| Power Consumption | : | 6 VA |
| Pressure Rating | : | 60 psid |
| Rotation Angle | : | 45 deg |
| Series | : | VC Series |
| Stroke | : | 0.4 in |
| Temperature Rating | : | -40 to 150 deg F |
| Timing Range | : | 6 s |
| VA Rating | : | 6 VA |
| Voltage Rating | : | 100/130 V |
Control central heating and/or cooling systems, fan coil systems, radiators and convectors. Depending on the model selected, it can be controlled by either a low or line voltage SPST or SPDT controller such as a room thermostat.

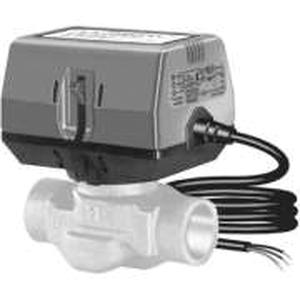

Honeywell Home Electric Zone Valve Actuator, VC Series, Number of Ways/Position: 2-Position, 100/130 V, 50/60 Hz, VA Rating: 6 VA, SPST, 39 in Cable Electrical Connection, Manual Operator, 6 VA Power Consumption, 6 s Timing, 0.4 in Stroke, On-Off Actuator, 60 psid, IP40 Enclosure, 45 deg Rotation Angle, Plastic Body, -40 to 150 deg F, 2-3/4 in H x 3-3/4 in W x 2-3/4 in, Additional Information: 5 to 95% RH, Non-Condensing Operating Humidity Range
- Use with two-way or three-way valves
- Minimal actuator power consumption
- Quick-connect or one meter cable electrical connections available
- Quick and easy replacement of moving parts
- Actuator head installation does not require draining the system
- On/Off models with six second nominal timing
- Use two-position actuators with 1000 Series 2 way and 6000 Series 3-way VC valve bodies only
- All VC Series actuator-valve combinations provide 60 psi close-off
