| Alarm Load Rating | : | 75 VA |
| Amperage Rating | : | 3.7 A, 7.4 A |
| Dimensions | : | 4-3/8 in H x 4-1/8 in W x 2-1/2 in D |
| Domestic/Import | : | Domestic |
| Flame Establishing Period | : | 45 Second |
| Frequency Rating | : | 50/60 Hz |
| Fuel Type | : | Oil |
| Ignition Type | : | Intermittent |
| Mounting Type | : | Junction Box |
| Operating Temperature | : | -40 to 130 Deg F |
| Pilot Type | : | Intermittent |
| Size | : | 4-1/8 Inch Width x 2-1/2 Inch Depth x 4-3/8 Inch Height |
| Specifications | : | Flame Establishing Period: 45 Second|Pilot Type: Intermittent |
| Temperature Rating | : | -40 to 130 deg F |
| Timing Range | : | 45 s |
| Type | : | Automatic, Non-Recycling |
| Voltage Rating | : | 120/240 V |

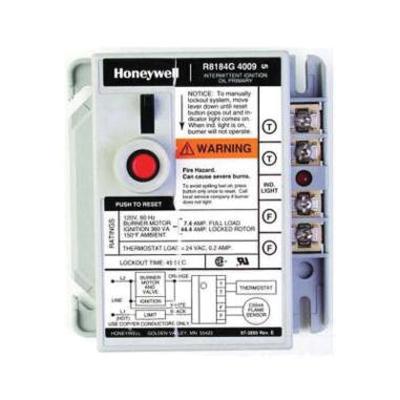

Honeywell Home Protectorelay® Burner Control, Oil Fuel, 120/240 V, 3.7 A, 7.4 A, 75 VA Alarm Load Rating, 50/60 Hz, -40 to 130 deg F, 45 s Timing, Intermittent Ignition, Junction Box Mounting, Domestic/Import: Domestic, 4-3/8 in H x 4-1/8 in W x 2-1/2 in D
- Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat
- Solid state flame sensing circuit
- LED on terminal strip indicates system lockout (available on some models)
- Remote lockout indication (available on some models)
- Enclosed safety switch with external reset button
- Manual trip lever opens safety switch for system maintenance
- Mounts on standard 4 x 4 in. junction box; select models may be mounted directly on burner housing
- C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required.
