| Compressor Type | : | Scroll |
| Configuration | : | Convertible, Horizontal |
| Decibel Rating | : | 79 dB |
| Dimensions | : | 88-1/8 in L |
| Drain Connection | : | 3/4 in |
| Drive Type | : | Direct |
| EER Rating | : | 11.2 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/4 hp |
| IEER Rating | : | 15.2 |
| Input BTU Rating | : | 120000 Btu/hr |
| Number of Stages | : | 2 |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 14 |
| Series | : | RGV Series |
| Tonnage | : | 10 ton |
| Voltage Rating | : | 208/230 V |
RGV/RAV/RGW/RAW rooftop units fit on our existing roof curbs dating back to 1989. Intuitive controls make setting the required fan speed simple and accurate. Access to blower section is not required. The new Vane Axial fan and direct drive ECM motor eliminate the need to adjust belts or pulleys. This frees up maintenance and installation time. Sloped, composite drain pan won't rust. RGV units are designed with a naturally draining heat exchanger. Unlike positive pressure heat exchangers, RGV heat exchangers do not need to be periodically, manually drained. This feature reduces labor and maintenance costs. X-Vane Unit Control Board places all connections and troubleshooting points in one place. Setting the fan is simple using the switch and rotary dial. This new Vane Axial design compared to past belt drive systems has 75% fewer moving parts and uses up to 40% less energy.

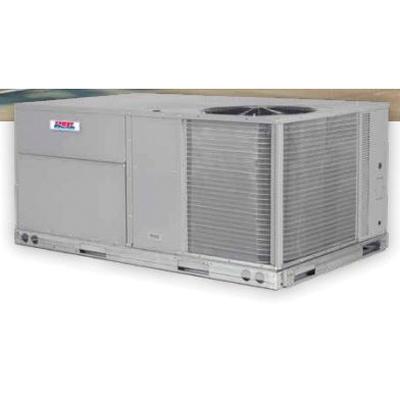

HEIL® Packaged Gas/Electric Unit, RGV Series, Input BTU Rating: 120000 Btu/hr, 208/230 V, 1/4 hp, 60 Hz, 3 ph Phase, Scroll Compressor, Convertible, Horizontal, 15.2 IEER, 11.2 EER Rating, 14 SEER, Tonnage: 10 ton, 2 Stages, R-410A Refrigerant, 79 dB Decibel, Direct Drive, 3/4 in Drain Connection, 88-1/8 in L
- Heil rooftop units utilize fully hermetic scroll compressors. Compressors are designed with internal isolation and have internal thermal line break, current overload, and highpressure differential protection
- Standard on every unit, the integrated terminal simplifies the installation of pre-engineered and certified field-installed accessories, including economizers, by providing clearly labeled connection points for easy plug-in connection
- Handles located on all major access panels provide quick, convenient and safe access to components for easy maintenance and service
- To prevent misalignment and stripped metal panels, screws are guided into collars. This increased screw engagement also makes panels easier to remove and replace
- The light and compact design has full-perimeter base rails that help in moving, transporting and rigging
- Heil models up to 12.5 tons are specifically designed to fit on many similar roof curbs dating back over 30 years, which makes replacement easy and eliminates the need for curb adapters or changing utility connections
- Heil commercial rooftops are capable of either vertical or horizontal airflow to meet nearly every application
- Heil commercial rooftops can be ordered with factory preengineered and certified options like stainless steel heat exchangers, smoke detectors and economizers
- Other factoryinstalled options include convenience outlets, non-fused disconnects and motorized two-position dampers. Protective E-Coat is also available for caustic applications
- For humid applications, Heil commercial rooftop units offer hot gas re-heat dehumidification in both standard and high efficiency models
