| CFM Rating | : | 1600 cfm |
| Compressor Type | : | Scroll |
| Configuration | : | Down Flow, Horizontal |
| Cooling BTU Rating | : | 48000 Btu/hr |
| Dimensions | : | 54-3/4 in H x 47 in W x 42-15/16 in D |
| EER Rating | : | 11.5 |
| Filter Size | : | 24 x 36 x 1 in |
| Finish | : | Pre-Painted |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/5 hp |
| HSPF Rating | : | 7.7 |
| Material | : | Steel |
| Model | : | PHB5 |
| Mounting Type | : | Ground, Rooftop |
| Nominal Capacity | : | 4 ton |
| Number of Stages | : | 2 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-454B |
| Rotational Speed | : | 810 rpm |
| SEER Rating | : | 15.5 |
| Series | : | QuietComfort® Series |
| Sound Level | : | 71 dB |
| Voltage Rating | : | 208/230 V |
Now you can enjoy comfort in any season with our highest-efficiency packaged electric heating and cooling heat pump. It features a two-stage scroll compressor and a multi-speed blower motor to quietly optimize home temperature control and reduce humidity. It's ENERGY STAR® qualified, which means efficient, year-round comfort.

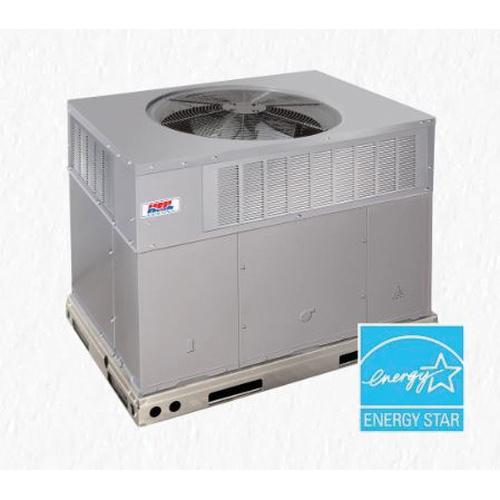

HEIL® Packaged Heat Pump, QuietComfort® Series, Model: PHB5, 4 ton Nominal Capacity, 48000 Btu/hr Cooling, 208/230 V, 1/5 hp, 60 Hz, 1 ph Phase, 810 rpm Rotational Speed, Scroll Compressor, 1600 cfm, 15.5 SEER, 7.7 HSPF, 11.5 EER Rating, Down Flow, Horizontal, R-454B Refrigerant, 2 Stages, 71 dB Sound Level, Ground, Rooftop Mounting, 24 x 36 x 1 in Filter, Steel, Finish: Pre-Painted, 54-3/4 in H x 47 in W x 42-15/16 in D
- Quiet performance (as low as 71 decibels)
- Two-stage heating and cooling with multi-speed blower motor for the best temperature control and comfort
- Blower and compressor work together for our best cooling dehumidification
- Durably built to withstand bad weather and debris
- Designed for corrosion resistance and lasting performance
- 5-Year No Hassle Replacement™ Limited Warranty
- 10-Year Parts Limited Warranty
- Optional- Exceptional dehumidification for enhanced humidity control
- High-efficiency two-stage scroll compressor
- Efficient multi-speed ECM blower motor
- Advanced electronic control quietly switches between heating, cooling and defrost modes
- System protecting high and low-pressure switches
- Louvered grille and raised coil design for protection against weather and debris
- Corrosion-resistant tin-plated copper evaporator coil tubing
- Sound-reducing features: vibration-reducing top panel, soft mounted compressor and blower motor, and Quiet Shift defrost
- Compatible thermostat: two-stage heat/cool with humidity sensing
- Rooftop or ground level installation
- Cooling/heating capacity: 2-5 tons
