| AFUE Rating | : | 96.7 % |
| Amperage Rating | : | 7 A |
| Blower Size | : | 11 in Dia x 7 in W |
| CFM Rating | : | 1000 cfm |
| Cabinet Dimensions | : | 35 in H x 14-3/16 in W x 29-1/2 in D |
| Configuration | : | Horizontal, Up Flow |
| Connection Size | : | 1/2 in |
| Connection Type | : | NPT |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas, Propane |
| HP Rating | : | 1/2 hp |
| Ignition System | : | Hot Surface |
| Ignition Type | : | Silicon Nitride |
| Input BTU Rating | : | 40000 Btu/hr |
| Material | : | Steel |
| Model | : | G96VTN |
| Motor Type | : | ECM |
| Number of Burners | : | 2 |
| Number of Speeds | : | 25 |
| Number of Stages | : | 2 |
| Output BTU Rating | : | 39000 Btu/hr |
| Phase | : | 1 ph |
| Series | : | QuietComfort® Series |
| Temperature Rise | : | 40 to 70 deg F |
| Tonnage | : | 2.5 ton |
| Transformer Rating | : | 40 VA |
| Vent, Ducted or Ductless | : | Vent |
| Voltage Rating | : | 115 V |

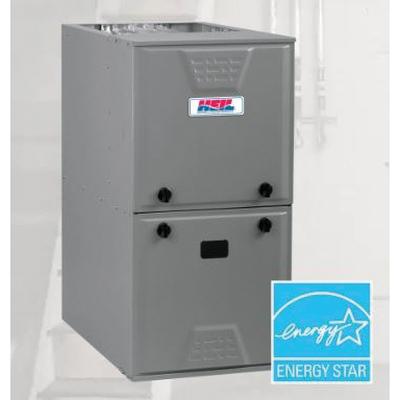

Keep cozy when it's cold outside with our high-efficiency gas furnace. Its reliable two-stage operation and variable 25-speed blower provide enhanced temperature control for your comfort. The variable-speed blower also means you'll enjoy better summer dehumidification as your furnace works with your cooling unit to help pull moisture out of the air.
HEIL® Gas Furnace, QuietComfort® Series, Model: G96VTN, Input BTU Rating: 40000 Btu/hr, Output BTU Rating: 39000 Btu/hr, 115 V, 7 A, 1000 cfm, 1/2 hp, 96.7 % AFUE Rating, 1 ph Phase, 60 Hz, 2 Stages, Horizontal, Up Flow, NPT Connection, 1/2 in Connection, Natural Gas, Propane Fuel, 2 Burners, 25 Speed, Blower Size: 11 in Dia x 7 in W, 35 in H x 14-3/16 in W x 29-1/2 in D Cabinet, ECM Motor, Vent, Ducted or Ductless: Vent, Tonnage: 2.5 ton, 40 VA Transformer, Hot Surface Ignition System, Silicon Nitride Ignition, Steel, 40 to 70 deg F Temperature Rise
- Variable 25-speed blower motor and two-stage gas valve provide enhanced levels of even temperature control and comfort
- Dual fuel capable with a compatible heat pump and thermostat for energy-saving heating performance
- Fully insulated cabinet helps keep the heat moving to your ductwork
- Air purifier and humidifier compatible
- High temperature limit control prevents overheating
- Wi-Fi® enabled remote access with the Ion™ Gray Smart Thermostat
- 5-Year No Hassle Replacement™ Limited Warranty
- 10-Year Parts Limited Warranty upon timely registration
- Lifetime Heat Exchanger Limited Warranty upon timely registration
- Variable 25-speed, constant torque ECM blower motor
- Two-stage heat for energy savings
- RPJ® (Rigid Press Joint) primary heat exchanger, stainless steel secondary heat exchanger
- Solid, pre-painted steel insulated cabinet with tight fit door latch system
- Sound-reducing features: soft mounted blower and inducer motor
- Heating capacity: 60,000-120,000 BTUh
