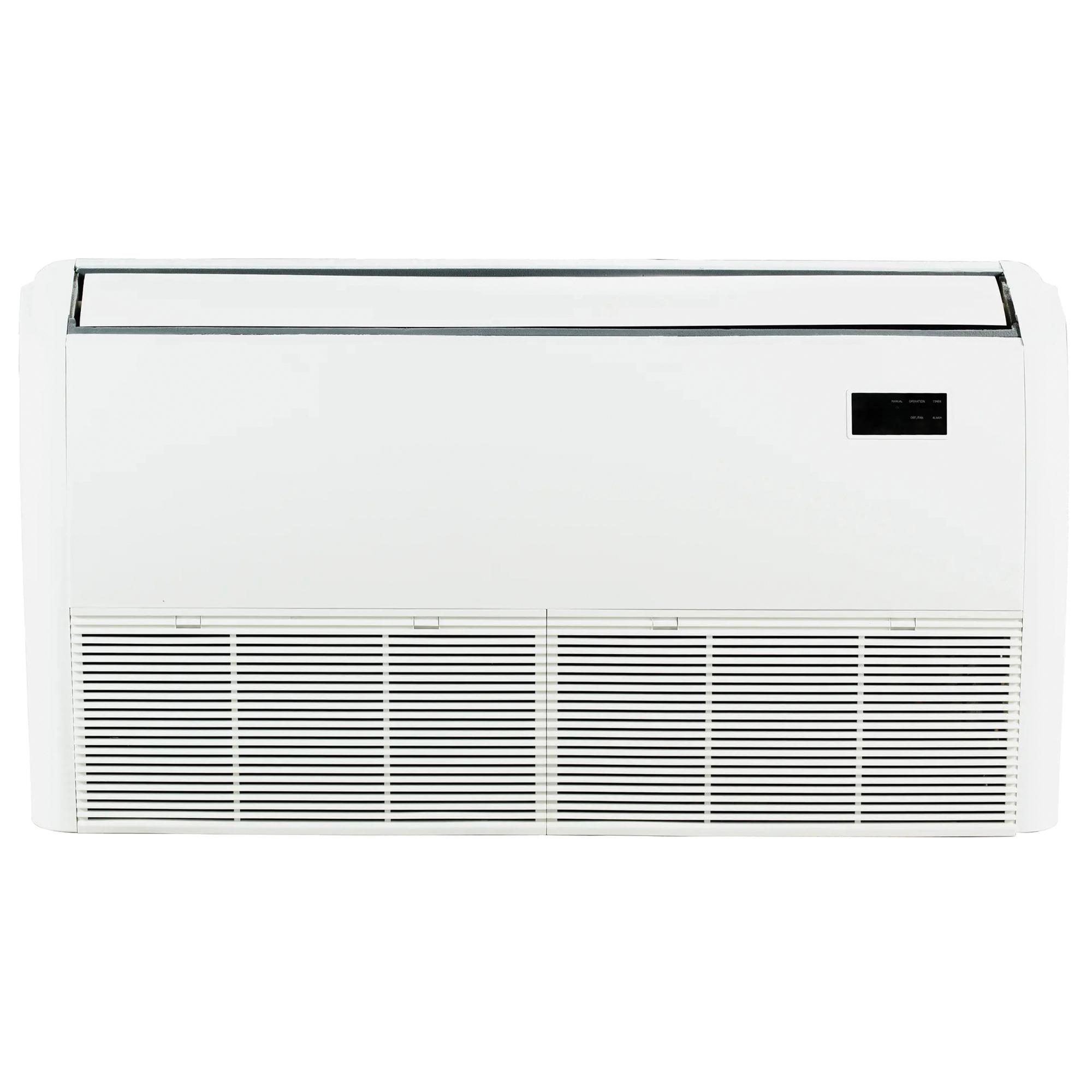

HEIL® QuietComfort® Series D5FCFAH36XAK Ceiling and Floor Console Indoor Unit, 208/230 V, 36000 Btu, 1 ph-Phase

HEIL® QuietComfort® Series D5FCFAH36XAK Ceiling and Floor Console Indoor Unit, 208/230 V, 36000 Btu, 1 ph-Phase

Brand: HEIL®
Part #: 98523
Customer Part #:
BTU Rating      :      36000 Btu
Finish      :      Fin-Coated
Frequency Rating      :      60 Hz
Material      :      Polystyrene
Number of Fan Speeds      :      3
Overall Height      :      9-1/4 in
Overall Length      :      26.57 in
Overall Width      :      64.96 in
Phase      :      1 ph
Refrigerant Type      :      R-454B
Series      :      QuietComfort® Series
Sound Level      :      29 dBA
Temperature Rating      :      46 deg F
Tonnage      :      3 ton
Voltage Rating      :      208/230 V

You want quiet, efficient, and cutting-edge features and this unit delivers. This floor console comes equipped with three fan speeds, operates in five heating and cooling modes, and cutting-edge technology like Follow Me which senses temperature at the handheld remote location. Unlike most floor consoles, this unit gives you the option of installing it on the floor or in the ceiling. Think about the possibilities.

HEIL® Ceiling and Floor Console Indoor Unit, QuietComfort® Series, 208/230 V, 60 Hz, 1 ph Phase, 3 Fan Speeds, 36000 Btu, R-454B Refrigerant, Tonnage: 3 ton, 29 dBA Sound Level, Polystyrene, Finish: Fin-Coated, 46 deg F, 26.57 in Overall Length, 64.96 in Overall Width, 9-1/4 in Overall Height

  • Modes: Cool, Heat, Dry, Fan, Auto
  • Single-zone and multi-zone compatible
  • Auto-restart function
  • Capable to be mounted on the floor and in ceiling
  • Louver control (fixed or swing)
  • Three fan speeds
  • Humidity control
  • Vertical swing
  • Refrigerant leak detection system
  • Follow Me (senses temperature at handheld remote)
  • Heating Setback (46 deg F Heating Mode)
  • Quiet indoor operation
  • Anti-corrosive fin coating
  • Compatible with R-454B refrigerant which continues our legacy of dedication to environmental stewardship. This refrigerant achieves a remarkable 75% reduction in global warming potential while preserving the non-ozone depleting properties of our previous refrigerant
  • 10-Year Parts Limited Warranty 2
  • 5-Year No Hassle Replacement™ Limited Warranty
  • Sound: as low as 29 decibels
  • Attractively styled, high-impact polystyrene
