| Color | : | White |
| Cooling BTU Rating | : | 30000 Btu/hr |
| Cooling Operating Temperature | : | 22 to 122 deg F |
| Cooling Sound Level | : | 61 dBA |
| EER Rating | : | 15 |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 29 |
| Heating Operating Temperature | : | 22 to 75 deg F |
| Liquid Line Size | : | 5 x 1/4 in |
| Material | : | Steel |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 33.1 |
| Series | : | Deluxe Series |
| Suction Line Size | : | 3 x 3/8 in |
| Tonnage | : | 2.5 ton |
| Voltage Rating | : | 208/230 V |

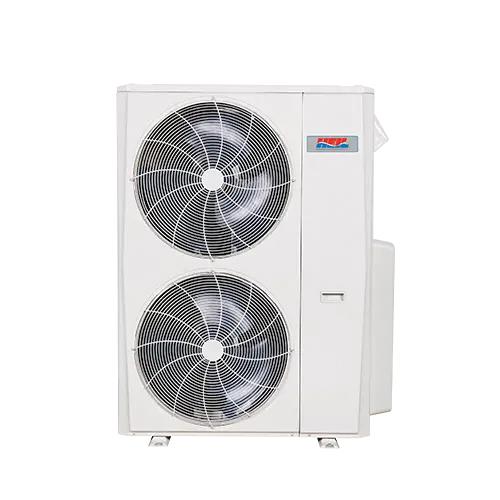

Bring comfort to multiple spaces with this multi-zone heat pump. This energy-efficient unit provides ratings of up to 25 SEER2 and up to 15 EER2 with the flexibility to be connected from two to six indoor units. Equipped with Condenser High-temperature Protection, Refrigerant Leakage Detection and available in sizes from 18 to 60, there is certainly a size to meet your cooling and heating needs.
HEIL® Multi-Zone Heat Pump, Deluxe Series, 208/230 V, 60 Hz, 1 ph Phase, 30000 Btu/hr Cooling, 15 EER Rating, 33.1 SEER, 29 HSPF, R-454B Refrigerant, 5 x 1/4 in Liquid Line, 3 x 3/8 in Suction Line, Tonnage: 2.5 ton, 61 dBA Cooling Sound Level, Steel, Finish: Galvanized, White, 22 to 75 deg F Heating Operating Temperature, 22 to 122 deg F Cooling Operating Temperature
- All sizes are ENERGY STAR® certified
- Built-in basepan heater
- Condenser high-temperature protection
- Refrigerant leakage detection
- Quiet outdoor operation
- Anti-corrosive fin coating
- R-454B refrigerant continues our legacy of dedication to environmental stewardship. This refrigerant achieves a remarkable 75% reduction in global warming potential while preserving the non-ozone depleting properties of our previous refrigerant
- One additional indoor unit can be attached
- 10-Year Parts Limited Warranty
- 10-Year No Hassle Replacement™ Limited Warranty
