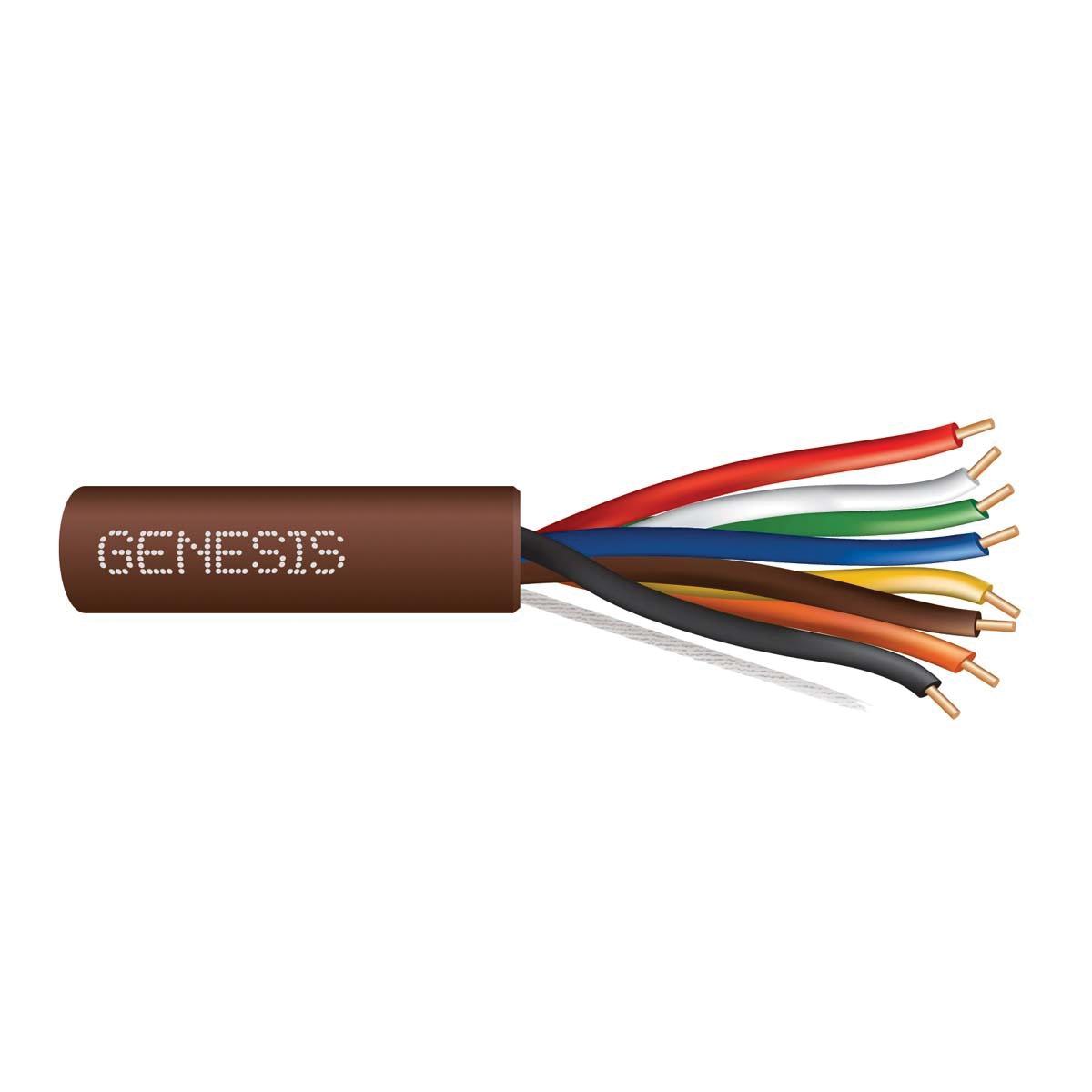

Genesis 47160307 Thermostat Cable, 150 V, 8-Conductor, 18 AWG Conductor, Solid, Copper Conductor, 250 ft L
Genesis 47160307 Thermostat Cable, 150 V, 8-Conductor, 18 AWG Conductor, Solid, Copper Conductor, 250 ft L

Genesis 47160307 Thermostat Cable, 150 V, 8-Conductor, 18 AWG Conductor, Solid, Copper Conductor, 250 ft L

Genesis 47160307 Thermostat Cable, 150 V, 8-Conductor, 18 AWG Conductor, Solid, Copper Conductor, 250 ft L

Brand: Genesis
Part #: 80709
Customer Part #:
Capacitance      :      22.8 pF/ft
Conductor Material      :      Copper
Conductor Size      :      18 AWG
Conductor Type      :      Solid
Insulation Material      :      Polypropylene
Insulation Thickness      :      0.005 in
Jacket Color      :      Brown
Jacket Material      :      PVC
Jacket Thickness      :      0.018 in
Length      :      250 ft
Number of Conductors      :      8
Outside Diameter      :      0.205 in
Resistance      :      6.52 Ohm
Solid/Stranded      :      Solid
Temperature Rating      :      -20 to 60 deg F
Voltage Rating      :      150 V

Genesis Thermostat Cables guarantee reliable signal transmission between thermostats and heating/cooling systems, keeping today's indoor environments comfortable and energy efficient.

Genesis Thermostat Cable, 150 V, 8 Conductors, Copper Conductor, Solid Conductor, 18 AWG Conductor, 0.205 in Outside Dia, 250 ft Length, 0.005 in Insulation Thickness, 0.018 in Jacket Thickness, Solid/Stranded: Solid, 6.52 Ohm, 22.8 pF/ft, Polypropylene Insulation, PVC, Brown, -20 to 60 deg F

  • Bare Copper conductors for excellent conductivity and low voltage drop
  • Polypropylene insulation
  • PVC jacket
  • Durable rip cord for efficient jacket stripping and removal
  • Sequential length marking for easy tracking of usage
  • Rated for 150 Volts
  • Rated for -20 deg C to 60 deg C
