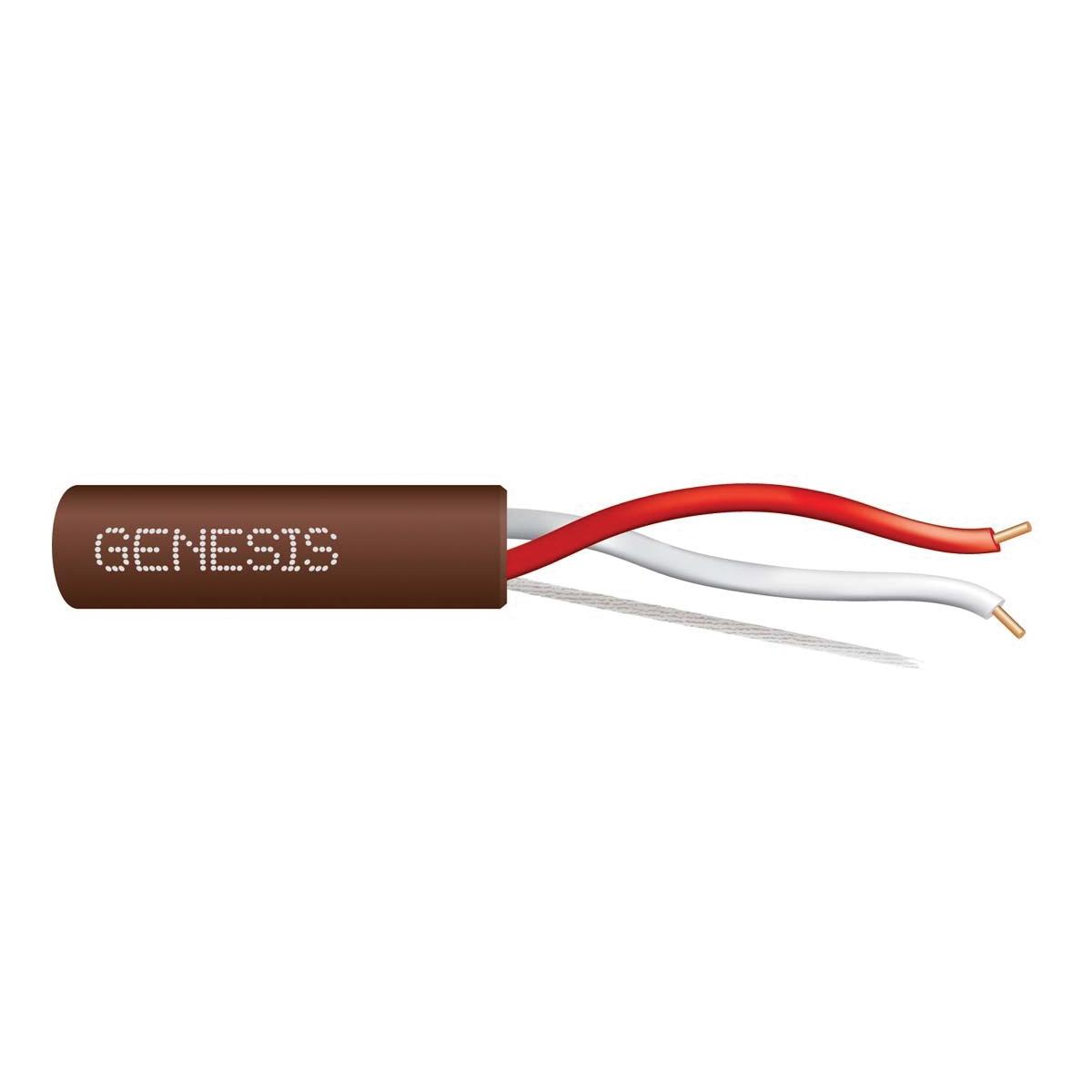

Genesis 47104807 Thermostat Cable, 150 V, 2 -Conductor, 18 AWG Conductor, Solid, Bare Copper Conductor, 500 ft L
Genesis 47104807 Thermostat Cable, 150 V, 2 -Conductor, 18 AWG Conductor, Solid, Bare Copper Conductor, 500 ft L

Genesis 47104807 Thermostat Cable, 150 V, 2 -Conductor, 18 AWG Conductor, Solid, Bare Copper Conductor, 500 ft L

Genesis 47104807 Thermostat Cable, 150 V, 2 -Conductor, 18 AWG Conductor, Solid, Bare Copper Conductor, 500 ft L

Brand: Genesis
Part #: 80719
Customer Part #:
Capacitance      :      22.8 pF
Conductor Material      :      Bare Copper
Conductor Size      :      18 AWG
Conductor Type      :      Solid
Insulation Material      :      Polypropylene
Insulation Thickness      :      0.005 in
Jacket Color      :      Brown
Jacket Material      :      PVC
Jacket Thickness      :      0.015 in
Length      :      500 ft
Number of Conductors      :      2
Outside Diameter      :      0.134 in
Package Type      :      Reel
Resistance      :      6.52 Ohm
Solid/Stranded      :      Solid
Temperature Rating      :      -20 to 60 deg C
Voltage Rating      :      150 V

Genesis Thermostat Cables guarantee reliable signal transmission between thermostats and heating/cooling systems, keeping today's indoor environments comfortable and energy efficient.

Genesis Thermostat Cable, 150 V, 2 Conductors, Bare Copper Conductor, Solid Conductor, 18 AWG Conductor, 0.134 in Outside Diameter, 500 ft Length, 0.005 in Insulation Thickness, 0.015 in Jacket Thickness, Solid, 6.52 Ohm Resistance, 22.8 pF, Polypropylene Insulation, PVC Jacket, Brown Jacket, -20 to 60 deg C, Reel Package

  • Bare Copper conductors for excellent conductivity and low voltage drop
  • Durable rip cord for efficient jacket stripping and removal
  • Sequential length marking for easy tracking of usage
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Genesis_47104807_Specification_Sheet.pdf
