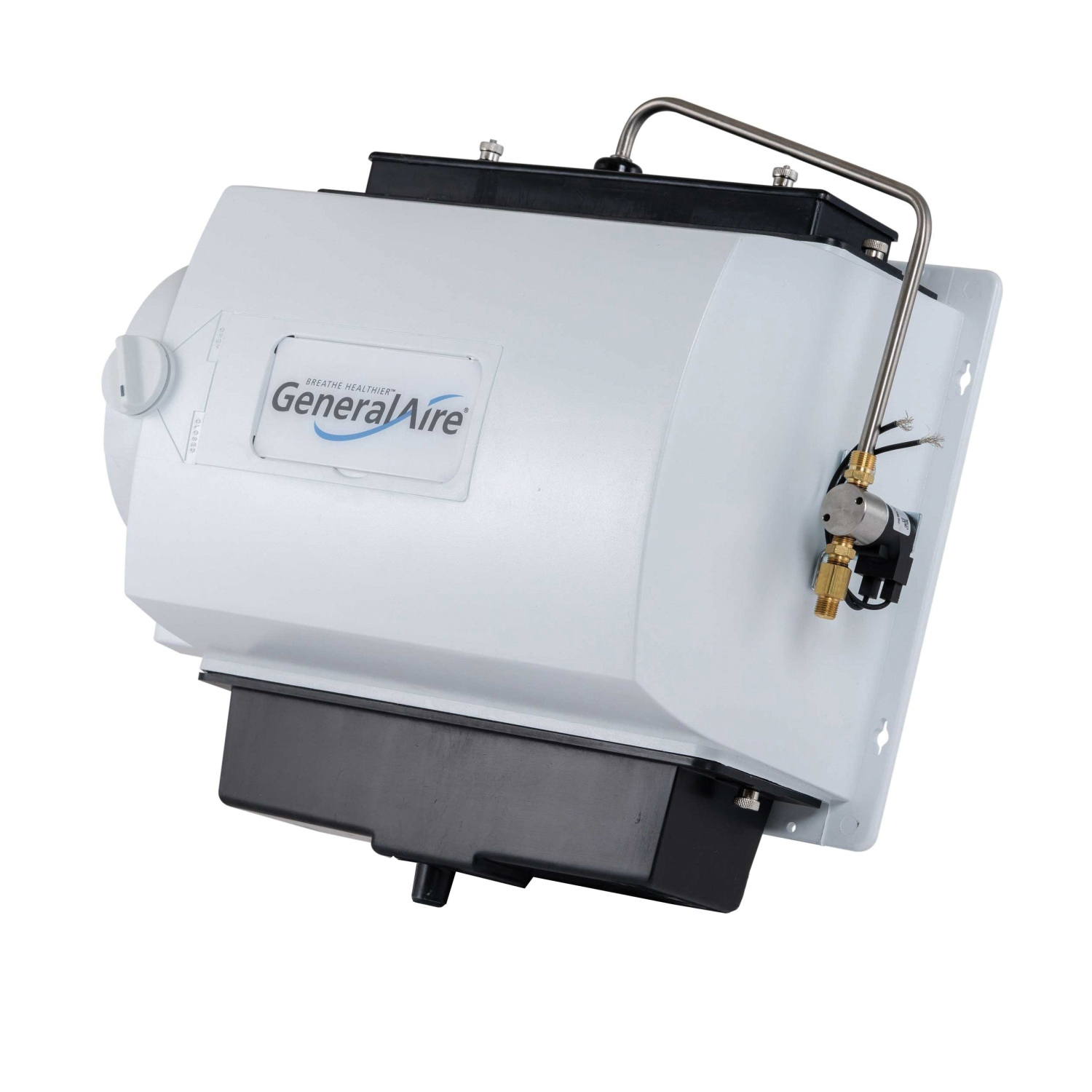

GeneralAire® Legacy Series 5144 Whole House Humidifier, 24 V, Manual Control, 17 gpd Capacity, Plastic
GeneralAire® Legacy Series 5144 Whole House Humidifier, 24 V, Manual Control, 17 gpd Capacity, Plastic
Manufacturer: General Filters
Brand: GeneralAire®
Part #: 383505
MPN: 5144
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Capacity | : | 17 gpd |
| Control Type | : | Manual |
| Coverage Area | : | 2800 sq-ft |
| Dimensions | : | 11-1/2 in H x 15 in W x 9 in D |
| Duct Opening Size | : | 6 in |
| Humidity Rating | : | 30 to 70 % |
| Material | : | Plastic |
| Plenum Opening | : | 9-1/2 in H x 10-1/4 in W |
| Series | : | Legacy Series |
| Voltage Rating | : | 24 V |
Water is dispersed evenly throughout a Vapor Pad inside the 1042LH. A portion of the heated air from the furnace passes through the water-soaked pad where it absorbs additional moisture and then returns for distribution throughout your home. Newly-moistened and healthier air is provided to you and your family.
GeneralAire® Whole House Humidifier, Series: Legacy Series, 24 V, 9-1/2 in H x 10-1/4 in W Plenum Opening, Manual Control, 17 gpd Capacity, 2800 sq-ft Coverage Area, 30 to 70 % Humidity Rating, 6 in Duct Opening, Plastic, 11-1/2 in H x 15 in W x 9 in D
- Replacement vapor pad number 990-13 (GFI #7002), replace 1-2 times per season
- Shut-off damper
- Remove screws, lift off water distribution tube and trough to replace vapor pad
- Distributes water evenly throughout Vapor Pad for maximum evaporation
- Cover made with DuraPlast an ultra-violet stable automotive-grade plastic for long-lasting durability
- Bypass duct-mount to left or right
- Damper control knob open during use
- Inspection window Simply remove the GeneralAire badge
- Water is automatically drains from your humidifier
- Water intake tube - brings water into the unit
- Mounting hole for-mounting on return air duct or warm air plenum
- Delivers water to the water distribution trough
- Water evaporation via furnace heat
- Saddle valve and solenoid valve
- 6 in duct opening (assembly supplied)
- Return air duct or warm air plenum-mounting
