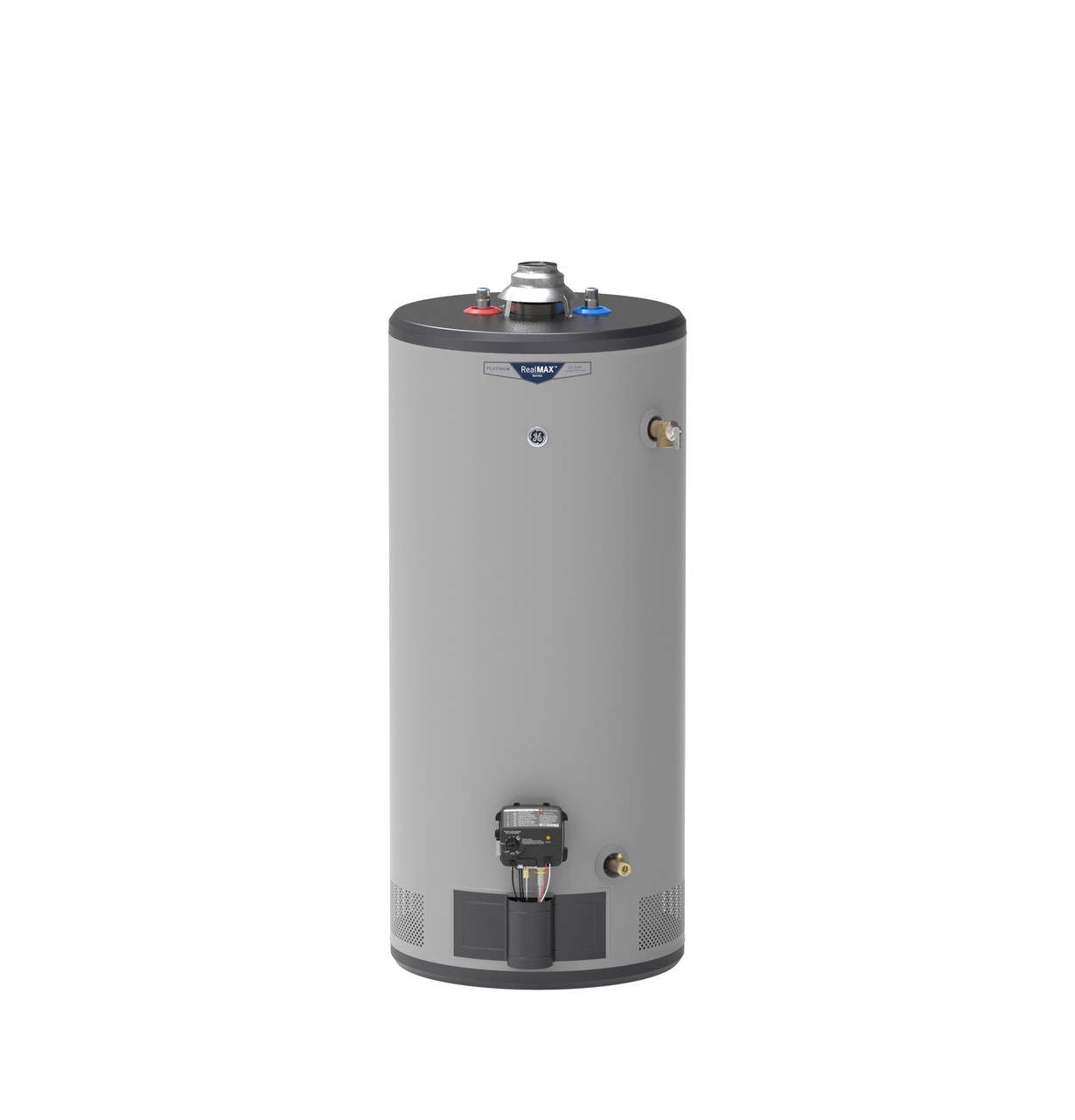

General Electric RealMAX Platinum GG40S12BXR Short Natural Gas Water Heater, 40 Gallons Capacity, 38,000 BTU/hr, Natural Gas, 78 GPH First Hour Delivery, 39.5 GPH Recovery Rate, No Energy Star Compliant, Atmospheric Vent Type
General Electric RealMAX Platinum GG40S12BXR Short Natural Gas Water Heater, 40 Gallons Capacity, 38,000 BTU/hr, Natural Gas, 78 GPH First Hour Delivery, 39.5 GPH Recovery Rate, No Energy Star Compliant, Atmospheric Vent Type
Manufacturer: General Electric Company
Brand: GE
Part #: 387207
MPN: GG40S12BXR
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Altitude | : | 10,100 ' |
| BTU Rating | : | 38,000 BTU/hr |
| Capacity | : | 40 gallons |
| Color | : | Gray |
| Connection Type | : | 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection) |
| Dimensions | : | 52-1/4" H x 22" W x 22" D |
| Domestic/Import | : | Domestic |
| Efficiency | : | 64% (UEF), 78% (Recovery Efficiency) |
| Energy Factor | : | 0.64 UEF |
| Energy Star Compliant | : | No |
| First Hour Delivery | : | 78 GPH |
| Fuel Type | : | Natural Gas |
| Ignition System | : | Standing Pilot |
| Ignition Type | : | Standing Pilot |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Steel (Tank), Magnesium (Anode Rod) |
| Model | : | GG40S12BXR |
| Mounting Type | : | Floor Mount |
| Recovery Efficiency | : | 78 % |
| Recovery Rate | : | 39.5 GPH |
| Series | : | RealMAX Platinum |
| Temperature Rating | : | 45-160 °F (Adjustable Setting) |
| Vent Diameter | : | 3 " |
| Vent Size | : | 3 " |
| Vent Type | : | Atmospheric |
General Electric Short Natural Gas Water Heater, Model: RealMAX Platinum, 40 Gallons Capacity, 38,000 BTU/hr, Natural Gas, 78 GPH First Hour Delivery, 39.5 GPH Recovery Rate, No Energy Star Compliant, Atmospheric Vent Type, 3" Vent Size, 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection), 52-1/4" H x 22" W x 22" D Dimensions, Floor Mount, 45-160 °F (Adjustable Setting), Standing Pilot, Steel (Tank), Magnesium (Anode Rod), 10,100' Altitude, Domestic, Lead-Free, Gray, 64% (UEF), 78% (Recovery Efficiency)
Designed for households of 2 to 4 people with a true 40-gallon capacity.High-performance 38,000 BTU burner ensures quick recovery and a 78 GPH first hour rating.SmartShieldâ„¢ Safety System monitors ambient air and shuts down the unit if abnormal temperatures are detected.Self-diagnostic system with LED indicator simplifies troubleshooting.Includes a durable magnesium anode rod and a rust-proof brass drain valve for extended tank life.Standard 3/4" water and 1/2" gas connections facilitate easy installation.Backed by a 12-year limited tank and parts warranty.
