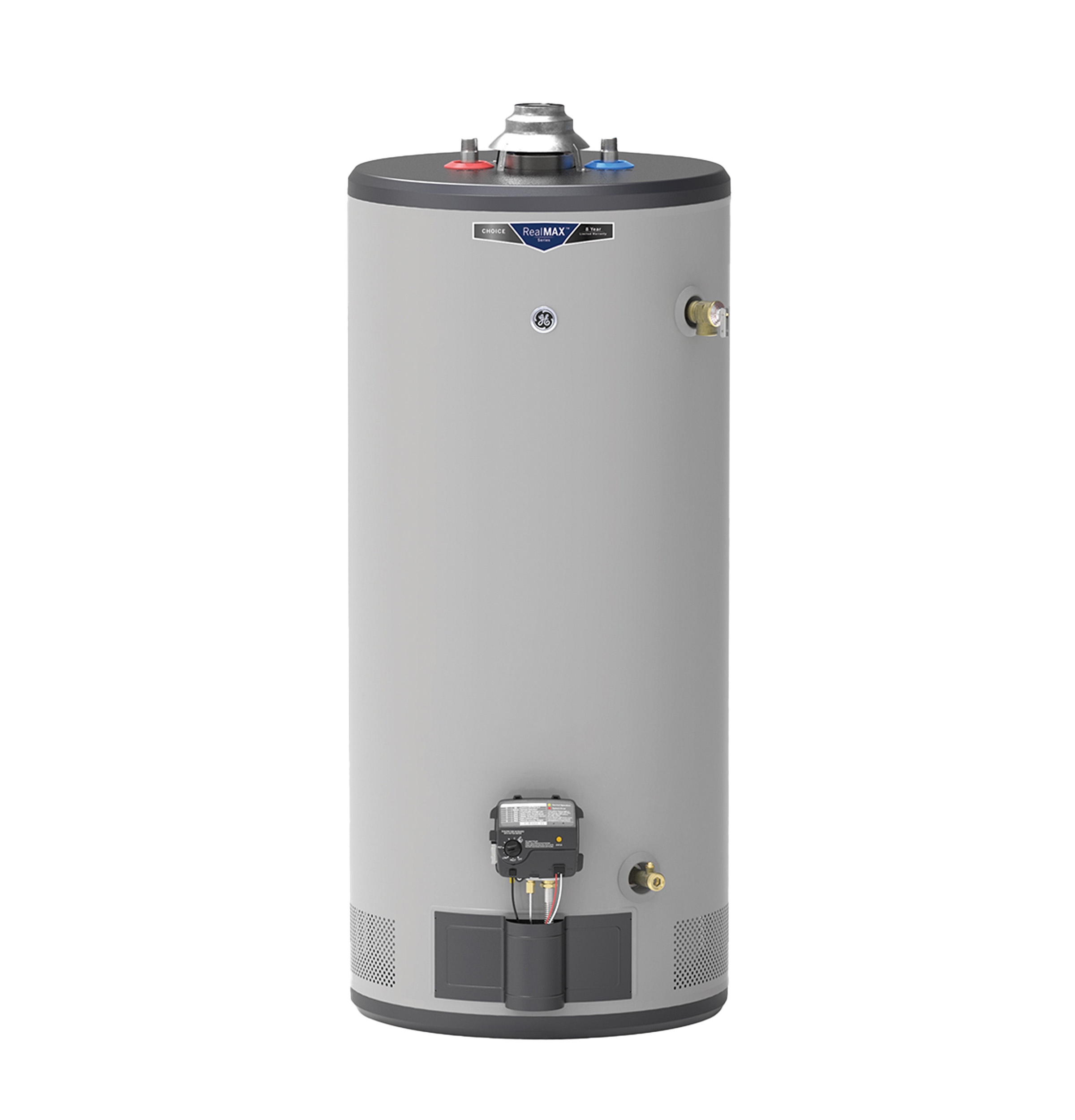

General Electric RealMAX Choice GG40S08BXR Short Natural Gas Water Heater, 40 Gallons Capacity, 38,000 BTU/hr, Natural Gas, 78 GPH First Hour Delivery, 39.5 GPH Recovery Rate, 0.64 UEF, No Energy Star Compliant
General Electric RealMAX Choice GG40S08BXR Short Natural Gas Water Heater, 40 Gallons Capacity, 38,000 BTU/hr, Natural Gas, 78 GPH First Hour Delivery, 39.5 GPH Recovery Rate, 0.64 UEF, No Energy Star Compliant
Manufacturer: General Electric Company
Brand: GE
Part #: 387205
MPN: GG40S08BXR
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Additional Information | : | Magnesium Anode Rod, High Bin Testing, LED Indicator Controls, Gas Valve Self Powered, 0.64 UEF, 3/4 x 3/4 in Connection |
| Altitude | : | 10,100 ' |
| BTU Rating | : | 38,000 BTU/hr |
| Capacity | : | 40 gallons |
| Color | : | Gray |
| Connection Type | : | 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection) |
| Dimensions | : | 52-1/4" H x 22" W x 22" D |
| Domestic/Import | : | Domestic |
| Efficiency | : | 64% (UEF), 78% (Recovery Efficiency) |
| Energy Factor | : | 0.64 UEF |
| Energy Star Compliant | : | No |
| First Hour Delivery | : | 78 GPH |
| Fuel Type | : | Natural Gas |
| Ignition System | : | Standing Pilot |
| Ignition Type | : | Standing Pilot |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Steel (Tank), Magnesium (Anode Rod) |
| Model | : | GG40S08BXR |
| Mounting Type | : | Floor Mount |
| Recovery Efficiency | : | 78 % |
| Recovery Rate | : | 39.5 GPH |
| Series | : | RealMAX Choice |
| Temperature Rating | : | 45-160 °F (Adjustable Setting) |
| Vent Diameter | : | 3 " |
| Vent Size | : | 3 " |
| Vent Type | : | Atmospheric |
General Electric Short Natural Gas Water Heater, Model: RealMAX Choice, 40 Gallons Capacity, 38,000 BTU/hr, Natural Gas, 78 GPH First Hour Delivery, 39.5 GPH Recovery Rate, 0.64 UEF, No Energy Star Compliant, Atmospheric Vent Type, 3" Vent Size, 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection), 52-1/4" H x 22" W x 22" D Dimensions, Floor Mount, 45-160 °F (Adjustable Setting), Standing Pilot, Steel (Tank), Magnesium (Anode Rod), 10,100' Altitude, 0.78 Recovery Efficiency, Domestic, Lead-Free, Gray

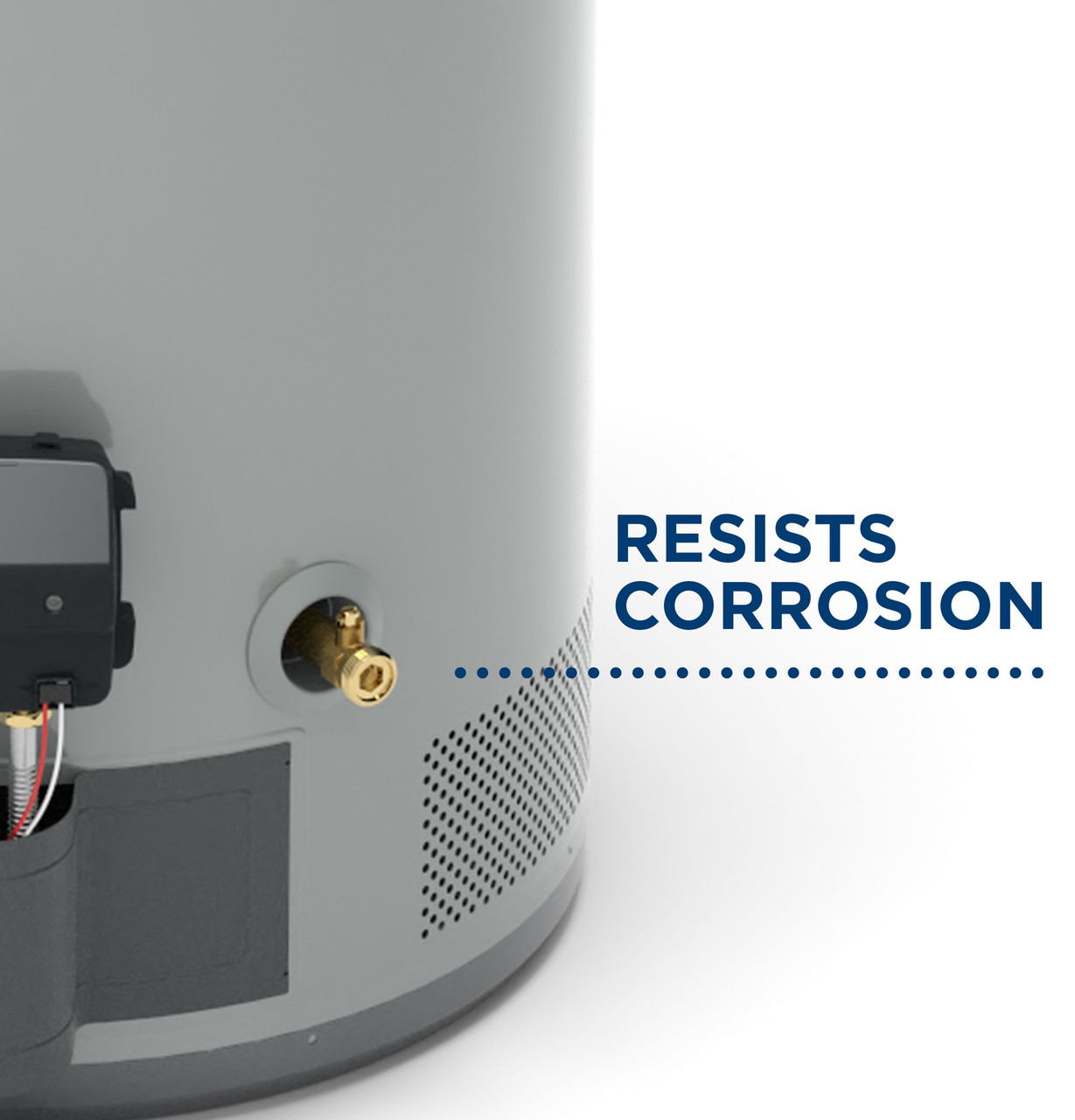

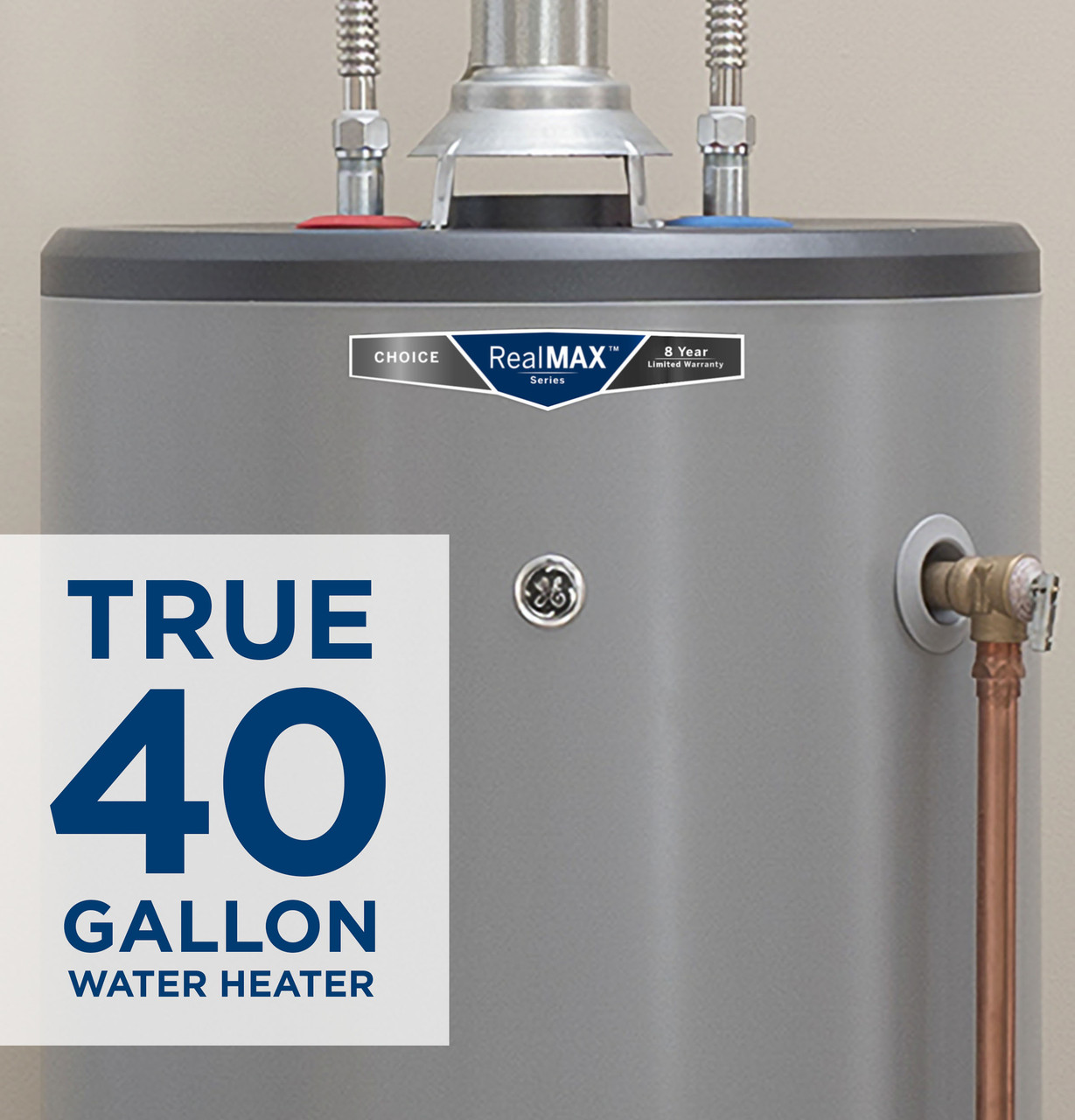

True 40-gallon capacity ensures ample hot water supply.Provides quick recovery with a 38,000 BTU natural gas burner, delivering 78 GPH first hour rating.Short configuration (52.25" overall height) allows for installation in spaces with height restrictions.Features SmartShieldâ„¢ and FVIR safety systems for enhanced protection.Self-diagnostic LED indicator monitors gas system status.Includes a durable magnesium anode rod and rust-proof drain valve for extended tank life.UL Listed and certified to NSF/ANSI 372 for lead-free compliance.Covered by an 8-year limited tank and parts warranty.
