| Additional Information | : | Smooth Belt Back Side, Notched Belt Inside, Single Sided, 84 in L Effective, 84 in Inside Circumference |
| Angle | : | 38 deg |
| Color | : | Black |
| Construction | : | Bandless |
| Domestic/Import | : | Domestic |
| Material | : | Ethylene Elastomeric |
| Number of Ribs | : | 1 |
| Outside Length | : | 86 in |
| Reinforced Material | : | Polyester |
| Resists | : | Heat, Oil |
| Rib Width | : | 1/2 in |
| Section Size | : | AX |
| Series | : | 9012 Series |
| Temperature Rating | : | -60 to 250 deg F |
| Thickness | : | 0.35 in |
| Top Width | : | 1/2 in |

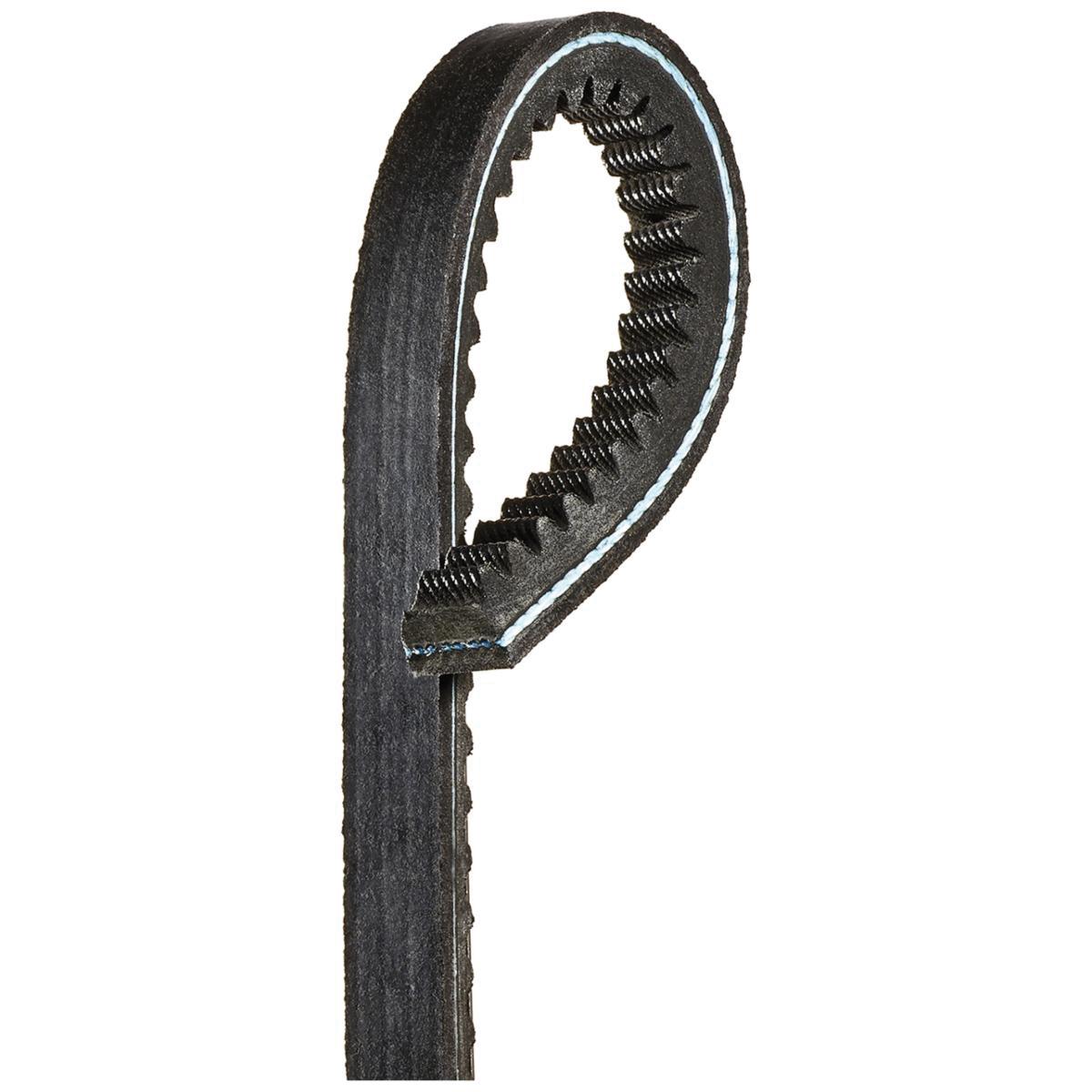

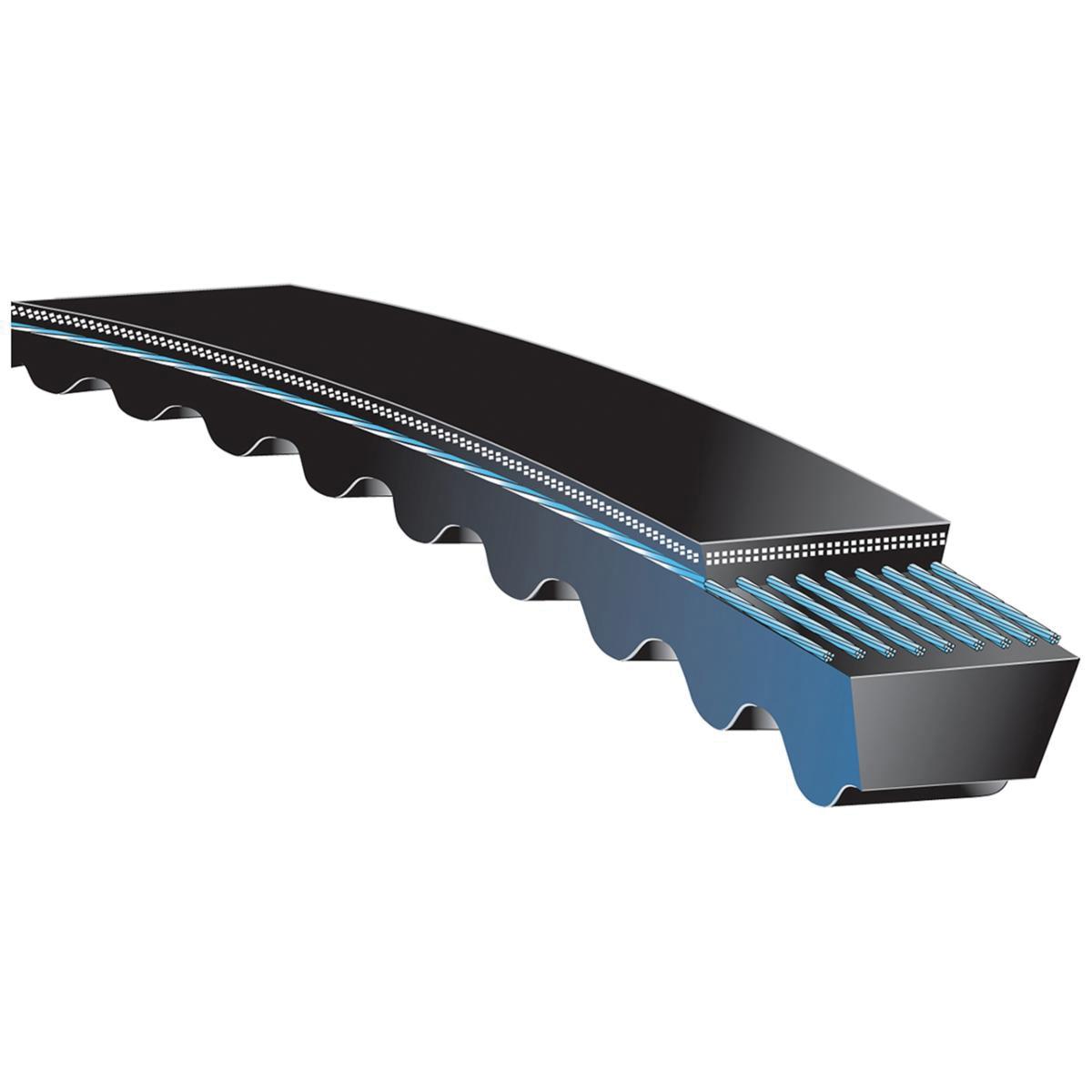

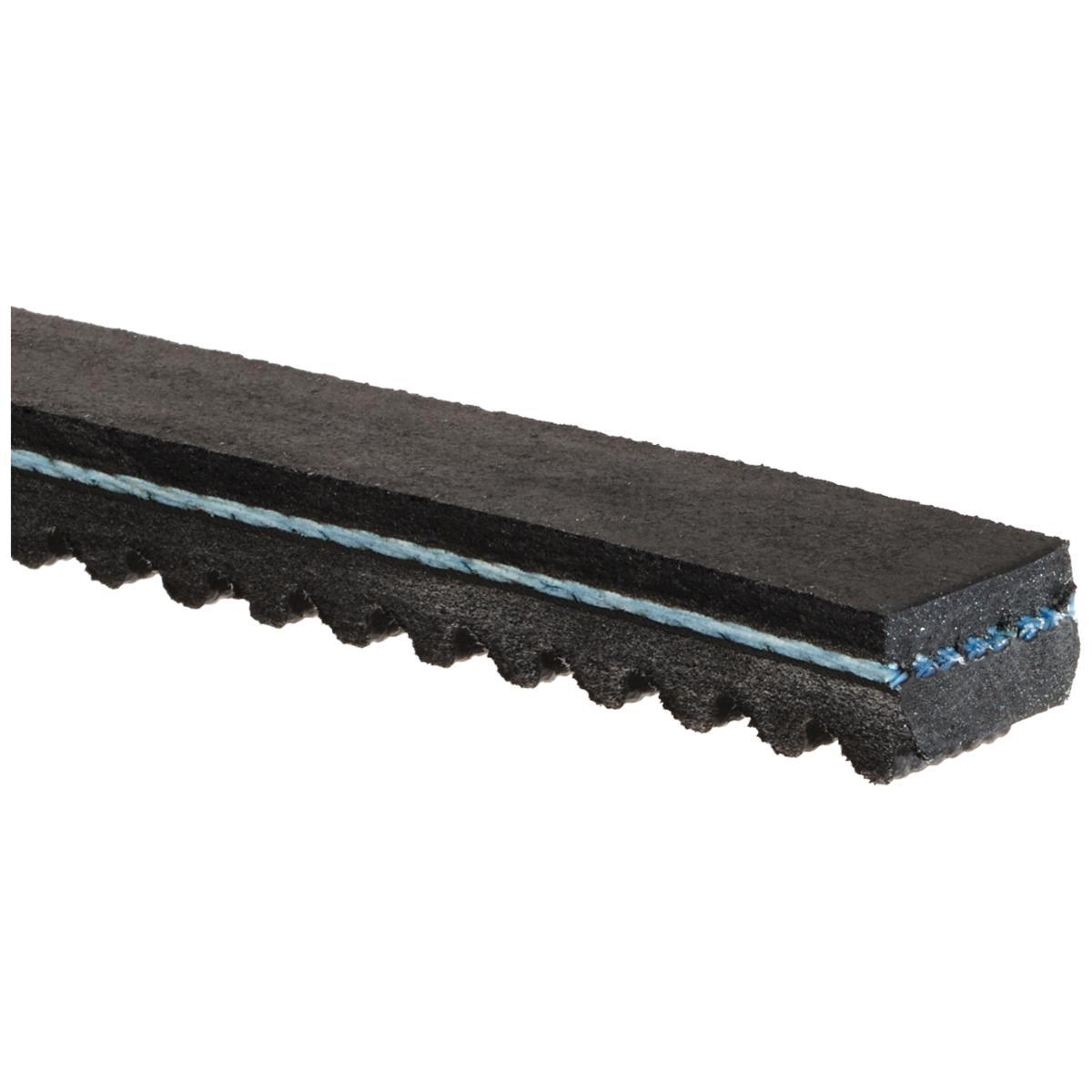

Built for superior performance on heavy-duty classical cross-section drives. The raw edge, ethylene elastomer construction and special notch design makes the Tri-Power® belt especially suited for small diameter pulleys and backside idler drives.
Gates® V-Belt, Series: 9012 Series, AX Section Size, 86 in Outside Length, 1/2 in Top Width, 0.35 in Thickness, 1/2 in Rib Width, 38 deg, 1 Ribs, Bandless Construction, Polyester Reinforced Material, Resists: Heat, Oil, Ethylene Elastomeric, -60 to 250 deg F, Black, Domestic, Additional Information: Smooth Belt Back Side, Notched Belt Inside, Single Sided, 84 in L Effective, 84 in Inside Circumference
- Belt edge is machined for even sheave groove contact, resulting in smoother running and less slip and wear
- Flex bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- 15% capacity increase over wrapped belts
- Notches molded into the belt during manufacturing increase flexibility, making this belt well-suited for drives with smaller diameter sheaves
- Suitable for all industrial applications, particularly where small or sub-minimal sheave diameters are required
