| Depth | : | 4 in |
| Filter Type | : | Pleated |
| Final Resistance | : | 1 in-WG |
| Height | : | 31-1/4 in |
| Initial Resistance | : | 0.35 in-WG |
| MERV | : | 8 |
| Media Material | : | Synthetic |
| Pleats per Linear Feet | : | 9 |
| Rated Velocity | : | 625 fpm |
| Temperature Rating | : | 200 deg F |
| Width | : | 17-1/2 in |

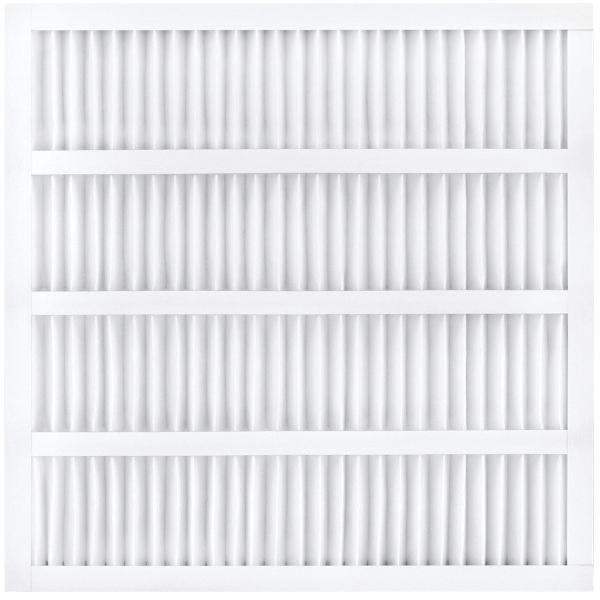

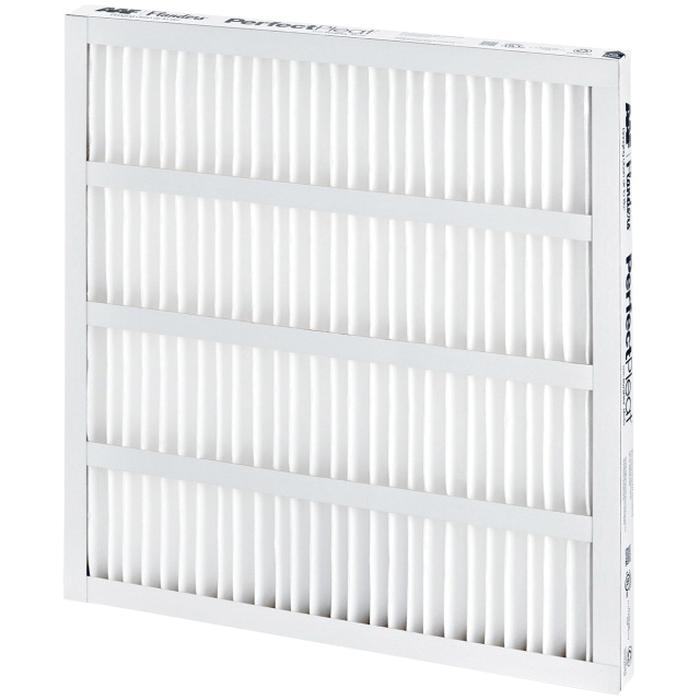

The PerfectPleat SC M8 is a high-performing, self-supported filter with a strong, metal-free design for even dust-loading. The low-pressure drop and high dust-holding capacity can help reduce energy use and overall operating costs.
Flanders® PerfectPleat® SC M8 Standard Capacity Air Filter, Pleated Filter, Synthetic Media, 17-1/2 in Width, 31-1/4 in Height, 4 in Depth, 8 MERV, Pleats per Linear Feet: 9, 625 fpm Velocity, 0.35 in-WG Initial Resistance, 1 in-WG Final Resistance, 200 deg F
- High-performing self-supported pleated filter
- Low-pressure drop and high dust-holding capacity reduce energy consumption and overall operating cost
- Pleats stay evenly spaced for full media utilization
- Mechanical efficiency - does not rely on electric charge
- Self-supporting DuraFlex media made from 100% virgin synthetic fiber
- Controlled fiber size and blend for consistent performance
- No wire backing for safer handling and no chance of rust downstream
- Environmentally friendly - fully incinerable or compactable
- MERV 8 efficiency
- Filter depth 1", 2" & 4"
- Special sizes available
- Maximum operating temperature: 150 deg F (66 deg C)
