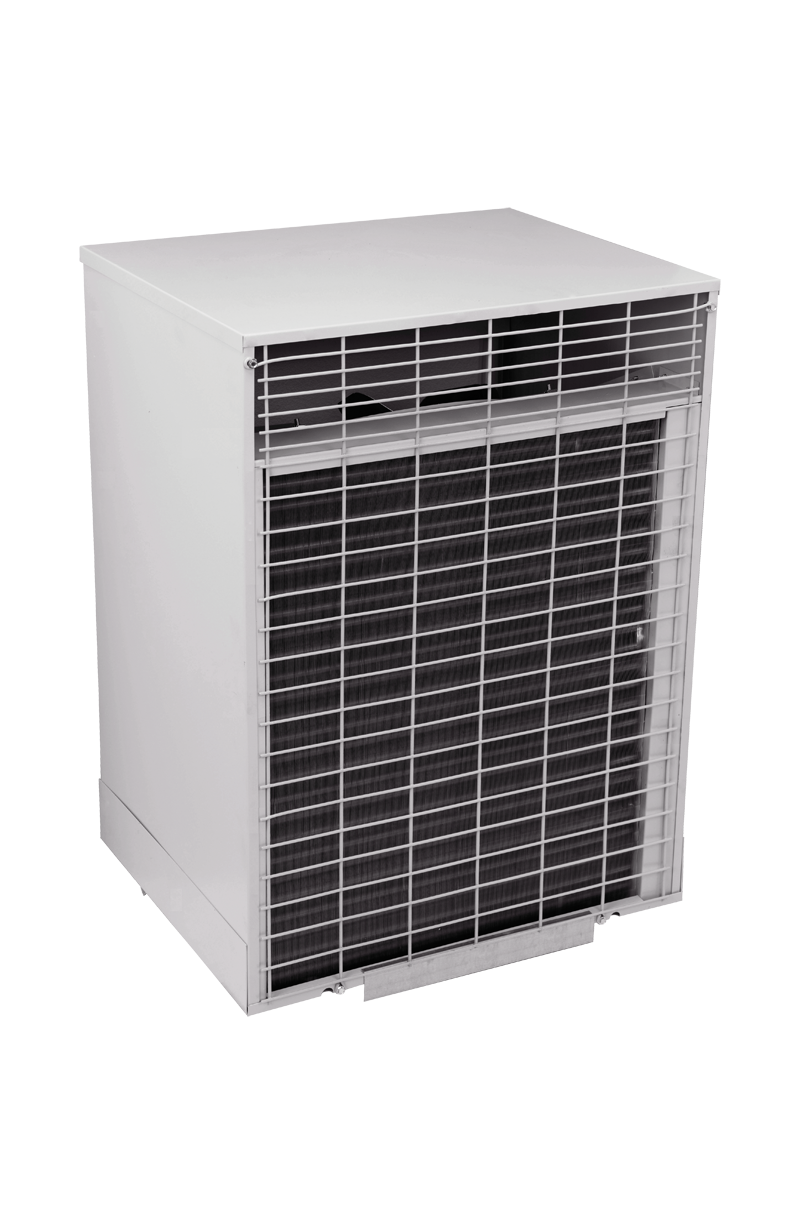

First Co WCX12 24WCXA12BB Thru-the-Wall Split Condensing Unit, 2 Tons Nominal Capacity, 12 SEER, R-410A, Through-The-Wall Configuration, 1, 208/230 V, Sweat/Braze
First Co WCX12 24WCXA12BB Thru-the-Wall Split Condensing Unit, 2 Tons Nominal Capacity, 12 SEER, R-410A, Through-The-Wall Configuration, 1, 208/230 V, Sweat/Braze

First Co WCX12 24WCXA12BB Thru-the-Wall Split Condensing Unit, 2 Tons Nominal Capacity, 12 SEER, R-410A, Through-The-Wall Configuration, 1, 208/230 V, Sweat/Braze

First Co WCX12 24WCXA12BB Thru-the-Wall Split Condensing Unit, 2 Tons Nominal Capacity, 12 SEER, R-410A, Through-The-Wall Configuration, 1, 208/230 V, Sweat/Braze

Manufacturer: First Company Products
Brand: First Co.®
Part #: 382627
MPN: 24WCXA12BB
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Amperage Rating      :      18 A (MCA)
BTU Rating      :      23,800 BTU/hr
Base Size      :      25-3/4" x 19"
Compressor Type      :      Scroll, Reciprocating
Configuration      :      Through-the-Wall
Connection Type      :      Sweat/Braze
Cooling Capacity      :      23,800 BTU/hr
Dimensions      :      28" H x 25-3/4" W x 19" D
Frequency Rating      :      60 Hz
Fuse Rating      :      30 A
HP Rating      :      1/4 HP (Condenser Fan)
Liquid Line Size      :      3/8 "
Model Number      :      24WCX
Model      :      24WCXA12BB
Mounting Type      :      Through-The-Wall
Nominal Capacity      :      2 Tons
Phase      :      1
Refrigerant Type      :      R-410A
SEER Rating      :      12 SEER
SEER2 Range      :      12
Series      :      WCX12
Suction Line Size      :      3/4" (O.D.)
Suitable For Use With      :      Blower Coil and Air Handler Units (With ECM Motors); Example Indoor Coil: 32VOHBX
Tonnage      :      2.0 Ton
Voltage Rating      :      208/230 V
Voltage      :      208/230 V

First Co Thru-the-Wall Split Condensing Unit, Model: WCX12, 2 Tons Nominal Capacity, 12 SEER, R-410A, Through-The-Wall Configuration, 1, 208/230 V, Sweat/Braze, Scroll, Reciprocating, 23,800 BTU/hr, 1/4 HP (Condenser Fan), 28" H x 25-3/4" W x 19" D Dimensions, 25-3/4" x 19" Base Size, Through-The-Wall, 3/8" (O.d.) Liquid Line Size, 3/4" (O.d.) Suction Line Size, 18 A (MCA), 30 A Fuse Rating, 60 Hz

Ideal replacement for existing through-the-wall condensing units.Utilizes R-410A refrigerant.Features an extra-high efficiency scroll or reciprocating compressor.Includes a sloped base pan for positive water drainage away from the building.Equipped with a plastic-coated coil guard for enhanced durability.Comes standard with a filter drier and high-pressure switch.Compatible With: Blower coil and air handler units with ECM motors (e.g., First Co. 32VOHBX).Optional architectural grille (Part# G200BBA) available for a clean exterior appearance.
