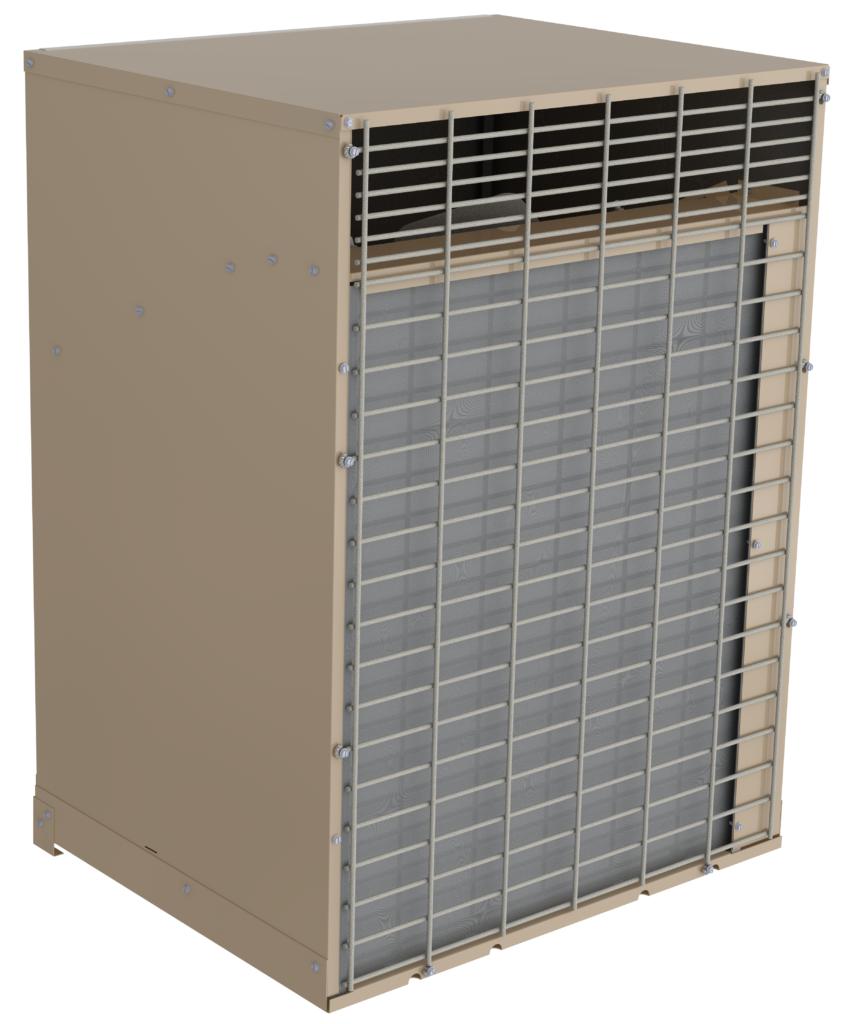

First Co WCX2 Series 24WCX2BB200F Split Condensing Unit, 2 Tons Nominal Capacity, 12 SEER2, R-454B, Through-The-Wall Configuration, 1, 208/230 V, Sweat/Braze

Amperage Rating	:	9.17 A (RLA), 13 A (MCA)
BTU Rating	:	24,000 BTU/hr
Base Size	:	25-3/4" x 19"
Compressor Type	:	Scroll, Reciprocating
Configuration	:	Through-the-Wall
Connection Type	:	Sweat/Braze
Cooling Capacity	:	24,000 BTU/hr
Dimensions	:	28" H x 25-3/4" W x 19" D
Domestic/Import	:	Domestic
Drive Type	:	Direct Drive
Frequency Rating	:	60 Hz
Fuse Rating	:	20 A
HP Rating	:	1/4 HP (Condenser Fan)
Liquid Line Size	:	3/8 "
Model Number	:	24WCX
Model	:	24WCX2BB200F
Mounting Type	:	Through-The-Wall
Nominal Capacity	:	2 Tons
Phase	:	1
Refrigerant Type	:	R-454B
SEER Rating	:	12 SEER2
Series	:	WCX2 Series
Suction Line Size	:	3/4" (O.D.)
Suitable For Use With	:	Blower Coil and Air Handler Units (with ECM Motors)
Tonnage	:	2.0 Ton
Voltage Rating	:	208/230 V
Voltage	:	208/230 V

First Co Split Condensing Unit, Model: WCX2 Series, 2 Tons Nominal Capacity, 12 SEER2, R-454B, Through-The-Wall Configuration, 1, 208/230 V, Sweat/Braze, Scroll, Reciprocating, 24,000 BTU/hr, 1/4 HP (Condenser Fan), Direct Drive, 28" H x 25-3/4" W x 19" D Dimensions, Through-The-Wall, Domestic, 3/8" (O.d.) Liquid Line Size, 3/4" (O.d.) Suction Line Size, 9.17 A (RLA), 13 A (MCA), 20 A Fuse Rating, 60 Hz

Designed for through-the-wall installation, ideal for replacement applications.Features an efficient scroll or reciprocating compressor and uses R-454B refrigerant.Propeller-type fan delivers efficient airflow over the condenser coil at lower operating watts.Unique cabinet design with sloped base pan enhances water drainage and containment.Includes a high-pressure switch for system protection.Equipped with a plastic-coated coil guard for added durability.Factory charged with R-454B refrigerant (charge requires field verification/adjustment).Compatible With: First Co blower coil and air handler units with ECM motors and R-454B TXVs.
