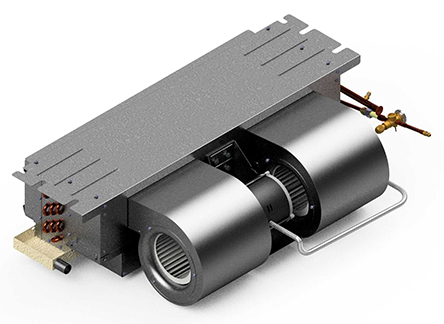

First Co HX Series 24HXS0502UAP000AAF Fan Coil Unit, 2 Tons Tonnage, 208-230 V, Recessed Ceiling Mount (Horizontal), 1 Phase, 800 CFM (Nominal), 24,000 BTU/hr, 5,000 W (Electric Heat)
First Co HX Series 24HXS0502UAP000AAF Fan Coil Unit, 2 Tons Tonnage, 208-230 V, Recessed Ceiling Mount (Horizontal), 1 Phase, 800 CFM (Nominal), 24,000 BTU/hr, 5,000 W (Electric Heat)
Manufacturer: First Company Products
Brand: First Co.®
Part #: 382625
MPN: 24HXS0502UAP000AAF
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 22.8 A (FLA), 25 A (MCA, 208V), 30 A (MCA, 240V) |
| BTU Rating | : | 24,000 BTU/hr |
| CFM Rating | : | 800 CFM |
| Coil Type | : | Horizontal Fan Coil |
| Color | : | Off White |
| Connection Type | : | 3/4" NPT (Drain Pan) |
| Domestic/Import | : | Domestic |
| Drive Type | : | PSC |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 25 A (208V), 30 A (240V) |
| HP Rating | : | 1/4 HP |
| Material | : | Galvanized Steel (Drain Pan), Copper/Aluminum (Coils) |
| Metering Device | : | TXV |
| Model | : | 24HXS0502UAP000AAF |
| Mounting Type | : | Recessed Ceiling Mount (Horizontal) |
| Overall Length | : | 37-1/4 " |
| Phase | : | 1 |
| Power Rating | : | 5,000 W (Electric Heat) |
| Refrigerant Type | : | R-410A |
| Series | : | HX Series |
| Suitable For Use With | : | Most Split System Condensing Units and Heat Pumps (Heat Pumps Require Field Kit #942-1); R-410A Refrigerant |
| Tonnage | : | 2 tons |
| Voltage Rating | : | 208-230 V |
| Width | : | 22 in |
First Co Fan Coil Unit, Model: HX Series, 2 Tons Tonnage, 208-230 V, Recessed Ceiling Mount (Horizontal), 1 Phase, 800 CFM (Nominal), 24,000 BTU/hr, 5,000 W (Electric Heat), PSC Drive Type, 1/4 HP, Galvanized Steel (Drain Pan), Copper/Aluminum (Coils), 3/4" NPT (Drain Pan) Connection Type, 22.8 A (FLA), 25 A (MCA, 208V), 30 A (MCA, 240V), 25 A (208V), 30 A (240V) Fuse Rating, 60 Hz, Galvanized, Off White, Domestic, 37-1/4" Overall Length
Designed for horizontal recessed ceiling installation, saving valuable floor space.Includes a factory-installed 5 kW electric heat package and a 240/24V transformer.Features a reliable PSC blower motor delivering up to 800 CFM nominal airflow.Equipped with high-efficiency copper tube/aluminum fin cooling coils.Sloped, insulated galvanized steel drain pan with primary and secondary 3/4" NPT fittings ensures proper condensate management.Compatible with most standard split-system condensing units using R-410A refrigerant (field kit required for heat pump applications).UL Listed for installation with zero clearance to combustible materials.
