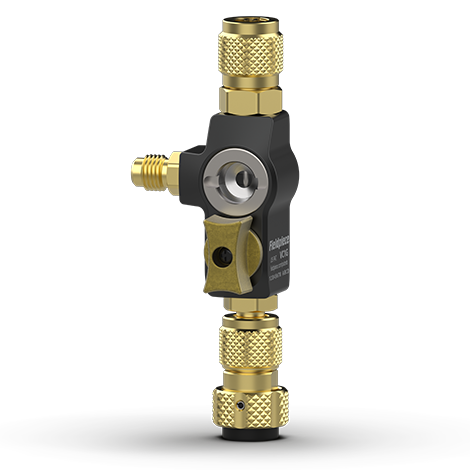

Fieldpiece Instruments VC1G Valve Core Removal Tool, 1/4" Size, 800 PSI, 1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 5/16" Female SAE Flare (Service Port), Brass, 5-3/50" Length, 2" Width, 1-1/2" Height
Fieldpiece Instruments VC1G Valve Core Removal Tool, 1/4" Size, 800 PSI, 1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 5/16" Female SAE Flare (Service Port), Brass, 5-3/50" Length, 2" Width, 1-1/2" Height
Fieldpiece Instruments VC1G Valve Core Removal Tool, 1/4" Size, 800 PSI, 1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 5/16" Female SAE Flare (Service Port), Brass, 5-3/50" Length, 2" Width, 1-1/2" Height
Fieldpiece Instruments VC1G Valve Core Removal Tool, 1/4" Size, 800 PSI, 1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 5/16" Female SAE Flare (Service Port), Brass, 5-3/50" Length, 2" Width, 1-1/2" Height
Fieldpiece Instruments VC1G Valve Core Removal Tool, 1/4" Size, 800 PSI, 1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 5/16" Female SAE Flare (Service Port), Brass, 5-3/50" Length, 2" Width, 1-1/2" Height

Fieldpiece Instruments VC1G Valve Core Removal Tool, 1/4" Size, 800 PSI, 1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 5/16" Female SAE Flare (Service Port), Brass, 5-3/50" Length, 2" Width, 1-1/2" Height

Fieldpiece Instruments VC1G Valve Core Removal Tool, 1/4" Size, 800 PSI, 1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 5/16" Female SAE Flare (Service Port), Brass, 5-3/50" Length, 2" Width, 1-1/2" Height

Manufacturer: Fieldpiece Instruments
Brand: Fieldpiece
Part #: 391848
MPN: VC1G
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Additional Information      :      20 um Vacuum Rated
Color      :      Brass, Black
Connection Type      :      1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 5/16" Female SAE Flare (Service Port)
Height      :      1-1/2 "
Length      :      5-3/50 "
Material      :      Brass
Model      :      VC1G
Pressure Rating      :      800 PSI
Size      :      1/4 "
Suitable For Use With      :      HVACR Technicians; Charging & Recovery Operations; 1/4" Standard Service Ports; 5/16" Service Ports (Requires RVC5 Fitting for Mini-Splits); High Pressure Refrigerants (Including R410A); A2L Compatible Systems
Width      :      2 "

Fieldpiece Instruments Valve Core Removal Tool, 1/4" Size, 800 PSI, 1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 5/16" Female SAE Flare (Service Port), Brass, 5-3/50" Length, 2" Width, 1-1/2" Height, Brass, Black

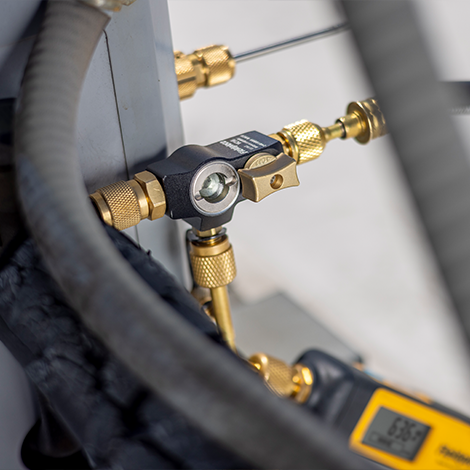

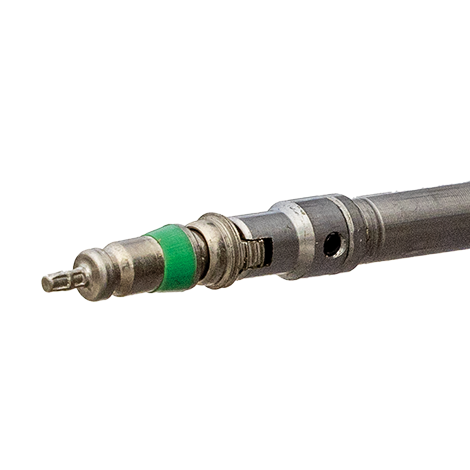

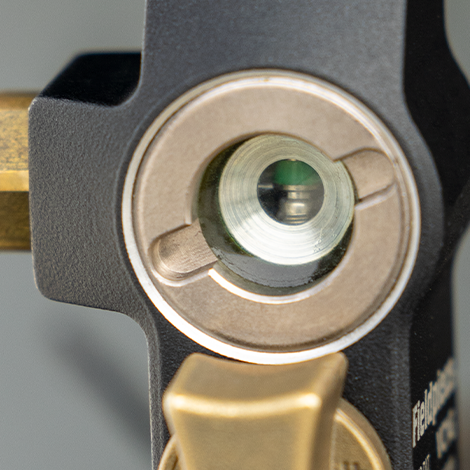

Integrated sight glass allows visual verification of core engagement and refrigerant flow.Reliably captures the valve core on the first try with a gasket-secured pin.Features a comfort spinner cap for easier removal and insertion against pressure.Standard 1/4" female service port fitting can be swapped with an optional 5/16" fitting (RVC5) for mini-splits.Vacuum-rated to 20 microns for deep system evacuation.Includes a 1/4" male side port with a removable valve core.Magnetic cap conveniently holds the removed valve core during service.Compatible with high-pressure refrigerants, including R-410A, and A2L systems.
