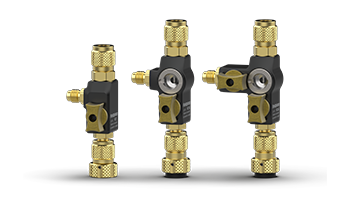

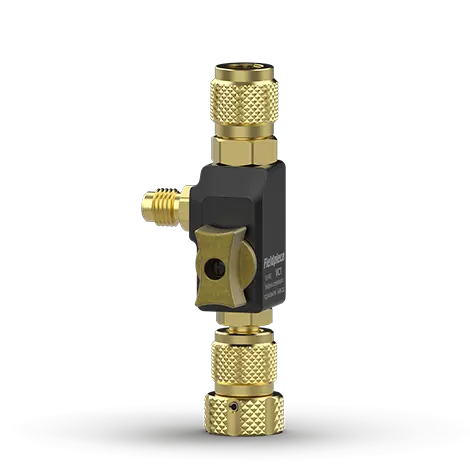

Fieldpiece Instruments VC1 Valve Core Removal Tool, 1/4" Size, 800 PSI, 1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 1-14/25" Length, 1-1/2" Width, 4-1/4" Height, Brass, Black

Additional Information	:	20 um Vacuum Rating
Color	:	Brass, Black
Connection Type	:	1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose)
Height	:	4-1/4 "
Length	:	1-14/25 "
Material	:	Aluminum
Model	:	VC1
Pressure Rating	:	800 PSI
Size	:	1/4 "
Suitable For Use With	:	High Pressure Refrigerants (Including R410A), A2L Systems, Mini-Split Systems (With Optional 5/16" Fitting), Refrigerant Access Valves (Valve Cores)
Temperature Rating	:	-20 to 200 deg F
Width	:	1-1/2 "

Fieldpiece Instruments Valve Core Removal Tool, 1/4" Size, 800 PSI, 1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 1-14/25" Length, 1-1/2" Width, 4-1/4" Height, Brass, Black

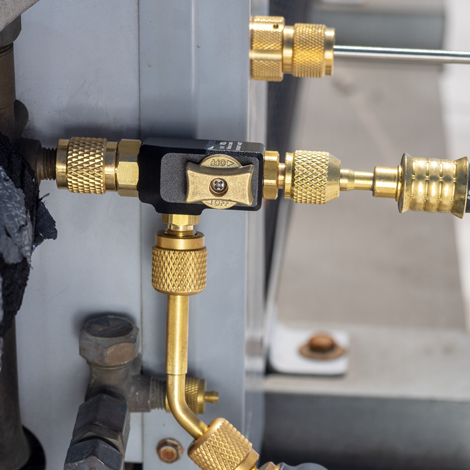

Ultra-compact design fits easily into tight service areas.Features a standard 1/4" female service port fitting, swappable with an optional 5/16" fitting for mini-splits (sold separately).Reliably captures the valve core on the first try with a secure gasket seal.Magnetic cap conveniently holds the removed valve core during service.Vacuum-rated down to 20 microns for thorough system evacuations.Compatible with A2L systems and rated for high-pressure refrigerants including R410a.Designed for a maximum working pressure of 800 psi.
