| Accuracy | : | +/-1 to 2 deg F Temperature, +/-0.2 in-HgV to +/-0.3% of Reading Plus 1 psi Pressure, +/-5% of Reading Plus 5 um, 50 to 1000 um Vacuum |
| Connection Type | : | MNPT Flared |
| Material | : | ABS |
| Measuring Range | : | -95 to 999.9 deg F Temperature, 29 inHgV to 580 psi Pressure, 0 to 9999 um Mercury |
| Number of Ports/Ways | : | 4 |
| Resolution | : | 0.1 deg F/deg C Temperature, 0.1 psi/in-Hg, 1 kPa/cm-Hg 0.001 MPa 0.01 Bar Pressure, 1 to 1000 um Vacuum |
| Series | : | SMAN400 Series |
| Temperature Rating | : | 32 to 122 deg F |

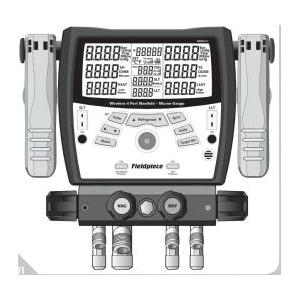

The SMAN460 wireless four-port digital manifold is the top-of-the-line Fieldpiece manifold. It has more features and benefits than any other manifold on the market. With target superheat automatically calculated, simultaneous superheat and subcooling, all 9 measurements displayed on the large, easy-to-read screen, extra large 3/8 ft full bore and 4th VAC port, and wireless measurements for real-time system diagnosis and charging, the SMAN460 is the manifold HVACR pros trust to do more.
Fieldpiece Digital Manifold With Micron Gauge, SMAN400 Series, MNPT Flared Connection, 32 to 122 deg F, +/-1 to 2 deg F Temperature, +/-0.2 in-HgV to +/-0.3% of Reading Plus 1 psi Pressure, +/-5% of Reading Plus 5 um, 50 to 1000 um Vacuum Accuracy, 0.1 deg F/deg C Temperature, 0.1 psi/in-Hg, 1 kPa/cm-Hg 0.001 MPa 0.01 Bar Pressure, 1 to 1000 um Vacuum Resolution, Number of Ports/Ways: 4, -95 to 999.9 deg F Temperature, 29 inHgV to 580 psi Pressure, 0 to 9999 um Mercury Measuring, ABS
- Extra rugged design
- Live real-time adjustments with wireless measurements
- Micron vacuum gauge with alarms, stopwatch and rate indicator
- Large 3/8 in full bore and VAC port
- All measurements on screen at one time
- Reliable regardless of elevation
- Easy future refrigerant updates via mini USB cable (cable not included)
- Mini-USB port for updating to newer versions of firmware
- 5 in diagonal display, blue backlight (On for 3 min unless turned off manually)
- 6 x AA, 350 hr (without vacuum, backlight and wireless) battery life
- An indicator is displayed when the battery voltage drops below the operating level
- 30 min of inactivity when APO is activated
- 0 - 9999 um of mercury
