| Additional Information | : | LCD 5 in Diagonal Display, Blue Backlight, 405 hr Battery Life, 2.4 GHz Radio Frequency, 1000 ft Wireless Range, USB-C 4-Port, 50 to 9999 um Vacuum |
| Connection Size | : | 1/4 in |
| Dimensions | : | 8-1/2 in H x 8-3/4 in W x 3-3/4 in D |
| Pressure Rating | : | 870 psig |
| Temperature Rating | : | 14 to 122 deg F |

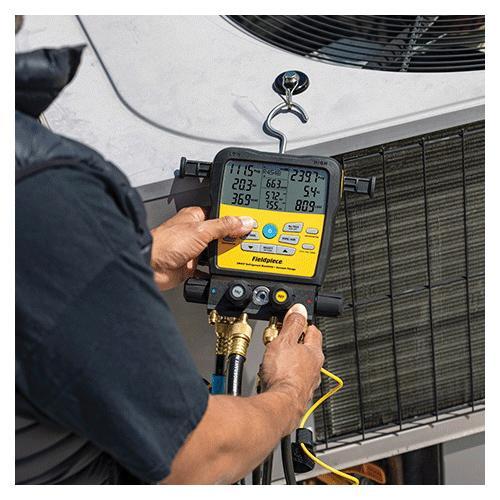

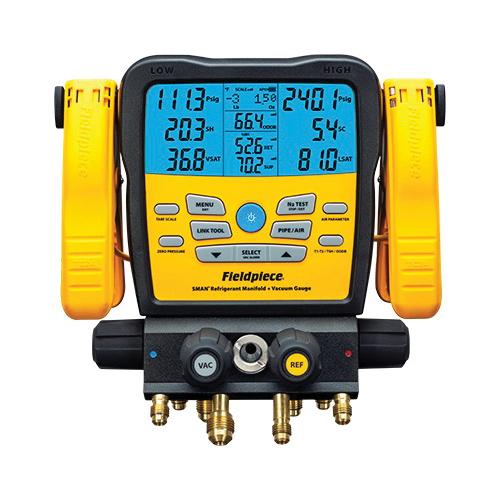

Knowledge, power and experience are packed into the SMAN® Refrigerant 2-valve Manifolds. Years of feedback from A/C and refrigeration specialists is combined with Fieldpiece's laser focus on continuous improvement to bring you the toughest, most advanced digital refrigerant manifold on the market. With wireless capabilities, data logging, and tightness testing, the SM382V is built so you can do your job easier, faster and better. The SM382V 2-valve Manifold is simply strong. The heavy-duty casing, reinforced hook, IP55 dust and water resistance, impact resistant screen, protected thermocouple jacks, and hermetically sealed sight glass, all ensure the SMANs are ready to go to work. The SM382V is designed to work the way you do with advanced features to streamline your job and provide the answers you need.
Fieldpiece SMAN® Wireless Refrigerant Manifold, 1/4 in Connection, 870 psig, 14 to 122 deg F, 8-1/2 in H x 8-3/4 in W x 3-3/4 in D, Additional Information: LCD 5 in Diagonal Display, Blue Backlight, 405 hr Battery Life, 2.4 GHz Radio Frequency, 1000 ft Wireless Range, USB-C 4-Port, 50 to 9999 um Vacuum
- Supports over 70 refrigerants
- A2L Compatible
- Features an integral vacuum gauge
- Logs hours of data
- Runs a temperature compensated nitrogen pressure test
- Displays in 12 languages
- Serves as a central data hub for Job Link® wireless tools and connects to the Job Link® system app
- Dust and water resistant (IP55)
