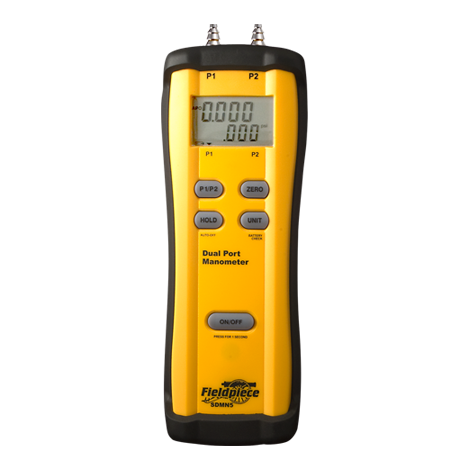

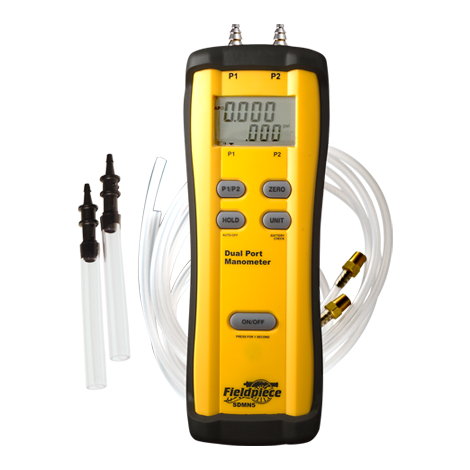

Fieldpiece Instruments SDMN5 SDMN5 Dual Port Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c., At 32-122°F), ± 1.5% FS (2-60 In. W.c., At 32-122°F), ± 0.001 PSI (0-0.07 PSI, At 32-122°F), ± 1.5% FS (0.07-2 PSI, At 32-122°F) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (5mm/3/16" ID Flexible Tubing), LCD, Battery, 200 Hrs Battery Life

Fieldpiece Instruments SDMN5 SDMN5 Dual Port Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c., At 32-122°F), ± 1.5% FS (2-60 In. W.c., At 32-122°F), ± 0.001 PSI (0-0.07 PSI, At 32-122°F), ± 1.5% FS (0.07-2 PSI, At 32-122°F) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (5mm/3/16" ID Flexible Tubing), LCD, Battery, 200 Hrs Battery Life

Manufacturer: Fieldpiece Instruments
Brand: Fieldpiece
Part #: 389317
MPN: SDMN5
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Accuracy      :      ± 0.02 in. w.c. (0-2 in. w.c., at 32-122°F), ± 1.5% FS (2-60 in. w.c., at 32-122°F), ± 0.001 PSI (0-0.07 PSI, at 32-122°F), ± 1.5% FS (0.07-2 PSI, at 32-122°F)
Battery Life      :      200 hrs
Battery Type      :      9V
Color      :      Yellow, Black
Connection Type      :      Tube Connector (5mm/3/16" ID Flexible Tubing)
Dimensions      :      7-1/16" H x 2-3/8" W x 1-3/16" D
Display Type      :      LCD
Fitting Size      :      3/16" (I.D. Flexible Tubing)
Fluid Type      :      Dry Non-Corrosive Gases
Material      :      Rubber (Boot)
Measuring Range      :      +/- 60 in. wc.
Mounting Type      :      Handheld, Magnetic Mount
Power Source      :      Battery
Resolution      :      0.01 in. wc.
Series      :      SDMN5
Suitable For Use With      :      Gas Pressure Measurement, Static Pressure Measurement, Differential Pressure Measurement, Furnace Testing, Balancing Air Flow (Ducts), Checking Gas Regulator Pressure, HVAC/R Field Service
Temperature Rating      :      32-122 °F (Operating)

Fieldpiece Instruments Dual Port Manometer, Model: SDMN5, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c., At 32-122°F), ± 1.5% FS (2-60 In. W.c., At 32-122°F), ± 0.001 PSI (0-0.07 PSI, At 32-122°F), ± 1.5% FS (0.07-2 PSI, At 32-122°F) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (5mm/3/16" ID Flexible Tubing), LCD, Battery, 200 Hrs Battery Life, 9V Battery, Dry Non-Corrosive Gases, 32-122 °F (Operating), Handheld, Magnetic Mount, Rubber (Boot), 7-1/16" H x 2-3/8" W x 1-3/16" D Dimensions, Yellow, Black

Measures gas pressure, static pressure, and differential pressure (P1, P2, P1-P2).Offers a wide measurement range from -60 in. wc. to +60 in. wc.High resolution of 0.01 in. wc. enables precise static pressure measurements.Features a zero adjust button, data hold function, and auto power-off to conserve battery life.Built for field use with a rugged rubber boot and integrated magnetic hanger.Displays readings in multiple units: inWC, mmWC, mBar, and PSI.Provides approximately 200 hours of battery life with a low battery indicator.
