| AC Current Accuracy | : | +/-2 % |
| Additional Information | : | Alkaline Battery Type |
| Counts | : | 5000 |
| Dimensions | : | 287.5 mm H x 79.5 mm W x 50 mm D |
| Display Type | : | Backlit |
| Frequency Rating | : | 500 Hz to 1 MHz |
| Jaw Capacity | : | 1.2 in |
| Operating Temperature | : | 32 to 122 deg F |
| Power Supply | : | 9 V |
| Resistance | : | 500 Ohm to 50 MOhm |
| Safety Rating | : | CAT III 600 V, Class 2 |
| Voltage Accuracy | : | +/-0.5%, +/-1.2% |

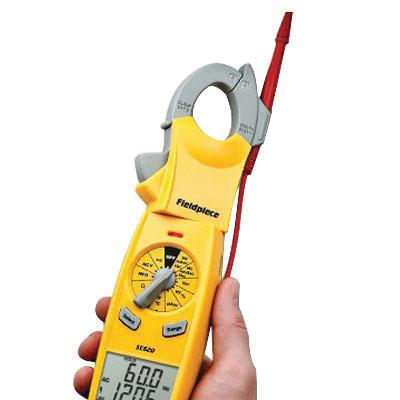

The SC620 swivel-head clamp meter is packed with all the electrical measurements HVACR professionals use everyday. It also includes a host of safety features like a high-voltage LED and beeper, a continuity warning, push button non-contact voltage (NCV), a lead holder with detachable leads, and alligator probe tips for easy one-handed testing. As far as ranges go, the SC620 clamp meter has temperature, capacitance, and microamps DC for flame diode tests. Its a rugged workhorse you can count on to get the job done easier, faster, and more safely.
Fieldpiece Clamp Meter, 500 Ohm to 50 MOhm Resistance, 1.2 in Jaw, 5000, 500 Hz to 1 MHz, Backlit Display, +/-2% AC Current Accuracy, +/-0.5%, +/-1.2% Voltage Accuracy, CAT III 600 V, Class 2, 9 V, 32 to 122 deg F Operating, 287.5 mm H x 79.5 mm W x 50 mm D, Additional Information: Alkaline Battery Type
- The SC620 is fast reacting, easy-to-use and rugged, with extended temperature tolerances that allow for testing in freezers and on hot rooftops, designed specifically for HVACR field service
- The SC620 is a dedicated digital multimeter that offers specific features and benefits to help HVACR professionals do more, everyday - volts AC/DC, swivel clamp, magnetic strap, dual display, temperature F/C, capacitance, duty cycle %, 400 A AC, microamps DC, frequency via leads and clamp, non-contact voltage, 50 Mohm with 0.1 resolution, continuity, diode test, hold, clamp probe holder, low battery indicator, high-voltage warning
- Lead storage
- Swivel-head clamp
- Magnetic strap
- Frequency via leads and clamp
- 60 sec duration with auto-off blue color backlight
- Approximately 30 min auto power off
- 100 hr typical alkaline battery life
- Battery icon blinks and "LO.bt" is displayed when the battery voltage drops below the operating level
- Up to 6562 ft altitude
- 600 VDC or 600 VAC rms unless otherwise stated
- Automatic zeroing
- 3.3 times per second, nominal measurement rate
- 500 um DC
- 5 - 95% duty cycle
- 5 uF - 5 MF capacitance
- 500 ohm continuity
- 0.8 mA diode test
- SC620 meter, ADLS2 deluxe silicone lead set with gold-plated tips and removable sheath, ATB1 Wrap-Tab K-type thermocouple, ASA2 short alligator lead extensions, velcro strap, 9 V battery and ANC7 padded case
