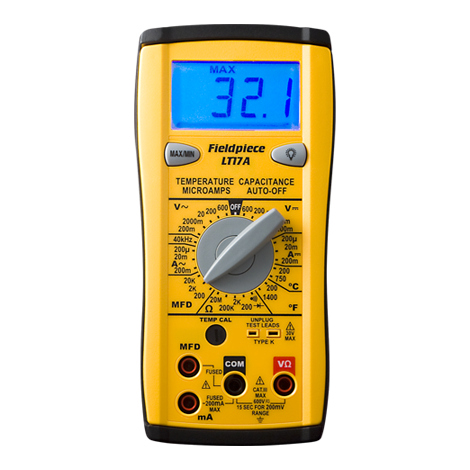

Fieldpiece Instruments LT Series LT17A Digital Multimeter, 600 V, 400 A, LCD, Yes Diode Test, 0.1 mV Resolution, 0.5% + 1 Digit, 1.0% + 1 Digit Current Accuracy

Amperage Rating	:	400 A
Battery Type	:	9V
Capacitance Accuracy	:	4% + 10 digits
Capacitance	:	20,000,000 MFD
Color	:	Yellow
Current Accuracy	:	1.0% + 1 digit
Dimensions	:	9-1/2" L x 7" W x 3-2/5" D
Diode Accuracy	:	1.5% + 3 digits
Diode Test	:	Yes
Display Type	:	LCD
Frequency Accuracy	:	0.1% + 3 digits
Frequency Rating	:	10 - 40,000 Hz
Humidity Rating	:	70 %
Material	:	ABS, Rubber (Boot)
Model	:	LT17A
Resistance Accuracy	:	±1.0% + 4 Digits
Resistance	:	40,000,000 Ohms
Resolution	:	0.1 mV
Series	:	LT Series
Temperature Accuracy	:	±1°F
Temperature Rating	:	32-122 °F
Voltage Accuracy	:	0.5% + 1 digit
Voltage Rating	:	600 V

Fieldpiece Instruments Digital Multimeter, Model: LT Series, 600 V, 400 A, LCD, Yes Diode Test, 0.1 mV Resolution, 0.5% + 1 Digit, 1.0% + 1 Digit Current Accuracy, ±1.0% + 4 Digits Resistance Accuracy, 0.1% + 3 Digits Frequency Accuracy, ±1°F Temperature Accuracy, 4% + 10 Digits Capacitance Accuracy, 1.5% + 3 Digits, 10 - 40,000 Hz, 0.1 x (Specified Accuracy)1°F/°c, 40,000,000 Ohms, 20,000,000 MFD, 32-122 °F Temperature Rating, ≤70% Humidity Rating, 9-1/2" L x 7" W x 3-2/5" D Dimensions, ABS, Rubber (Boot), Yellow, 9V

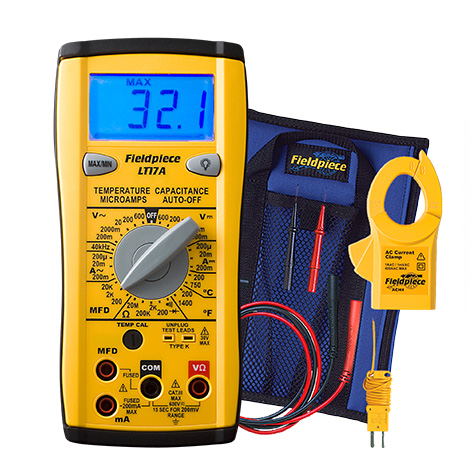

Measures key HVACR parameters including AC/DC voltage (up to 600V), AC current (up to 400A with included clamp), resistance, capacitance, frequency, and temperature.Features a microamps DC range specifically for testing flame rectification sensors.Includes a K-type thermocouple for direct temperature measurement up to 1400°F.Bright blue backlight, tilt stand, and magnetic hanger allow for easy viewing and hands-free operation.Compatible with Fieldpiece accessory heads to expand measurement capabilities.Rugged ABS case with protective rubber boot ensures durability on the job site.Auto power-off function conserves battery life (approx. 150 hours typical).Includes deluxe silicone test leads, 400A clamp accessory, thermocouple, alligator clips, and carrying case.
