| Accuracy | : | +/-0.2 inHgV, +/-1 cmHgV, +/-1 psig, +/-7 kPa, +/-2 psig, +/-14 kPa |
| Auto Power Off | : | 2 hr |
| Connection Type | : | FNPT |
| Enclosure Type | : | IP55 |
| Fitting Size | : | 1/4 in |
| Humidity Rating | : | <75 % |
| Measuring Range | : | 29 inHgV to 580 psig, 74 cmHgV to 0 to 4000 kPa |
| Pressure Rating | : | 800 psig |
| Temperature Rating | : | 32 to 122 deg F |

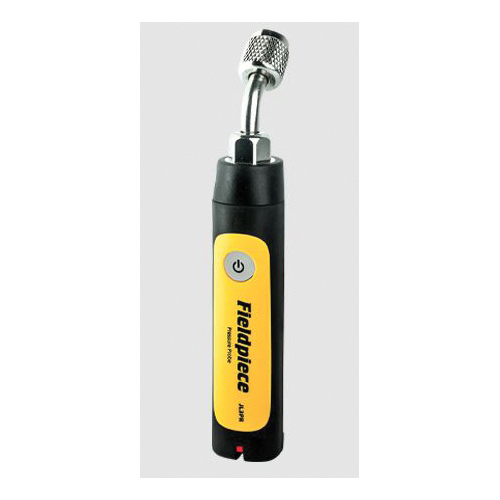

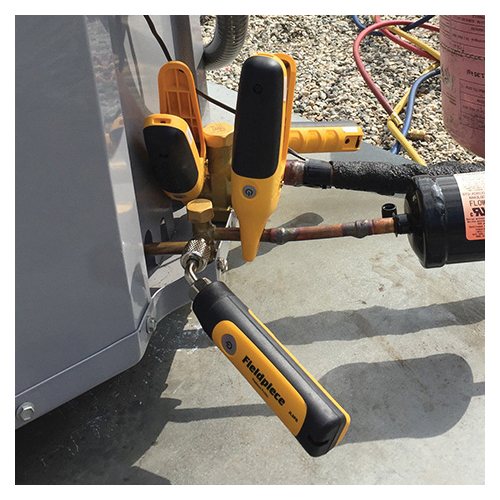

Easily access service ports at odd angles and/or tight spaces with the Job Link® system pressure probes. Pressure sensors are accurate at any elevation so your readings are spot-on no matter your location.
Fieldpiece Pressure Probe, 800 psig, <75 % Humidity Rating, 2 hr Auto Power Off, FNPT Connection, 1/4 in Fitting, +/-0.2 inHgV, +/-1 cmHgV, +/-1 psig, +/-7 kPa, +/-2 psig, +/-14 kPa Accuracy, IP55 Enclosure, 29 inHgV to 580 psig, 74 cmHgV to 0 to 4000 kPa Measuring, 32 to 122 deg F
- Powerful 1000 ft wireless range with no transmitter required

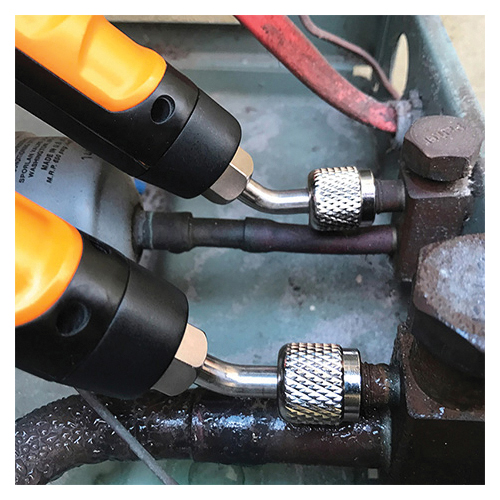

- 45 deg angled fitting easily connects in tight spaces
- Pressure sensors are accurate at any elevation
- Field replaceable gasket
- Great for critically charged systems
- A2L compatible
- Water-resistant
- Calibrates automatically to barometric pressure

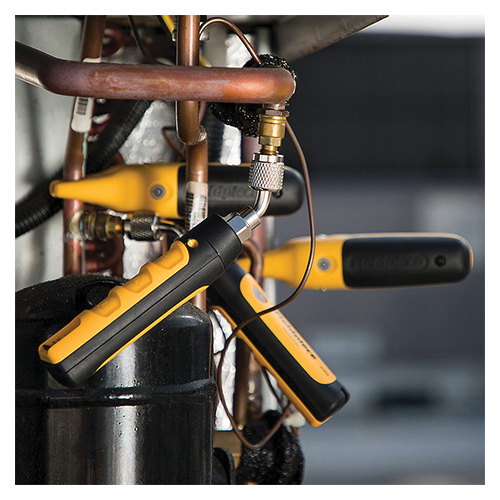

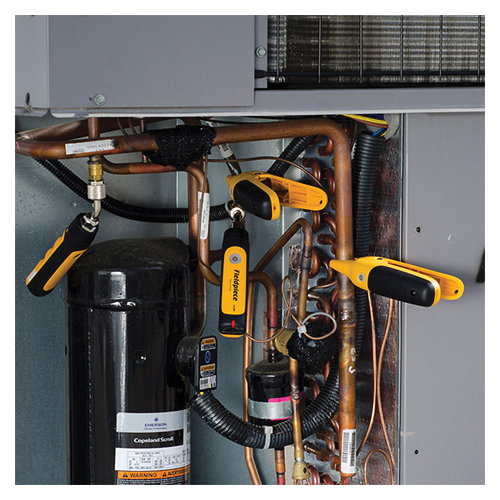

- Quickly connect onto suction and liquid line pressures for instant measurements
- Monitor pressures up to 1000 ft away
- Send measurements directly to your mobile device with the Job Link® system app
- A direct connect to service port means no need for hoses so there is little to no refrigerant loss
- Excellent for servicing critically charged systems
- The indicator switch automatically tells the Job Link® system which side you're testing, select red for liquid side and blue for suction side
