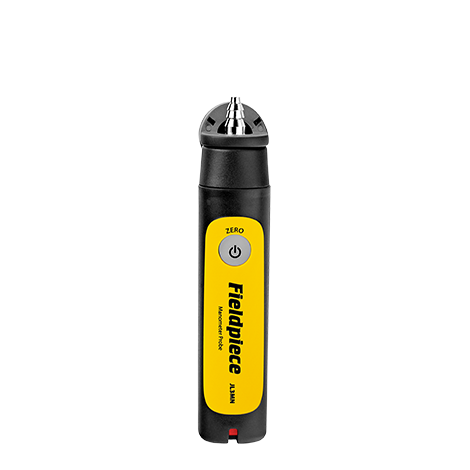

Fieldpiece Instruments JL3MN Single Port Wireless Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c.), ± 1.5% FS (2-60 In. W.c.), ± 0.001 PSI (0-0.072 PSI), ± 1.5% FS (0.072-2.165 PSI) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (Flexible Tubing), 0.177"-0.315" (ID, Tubing) Fitting Size, App-Based (Job Link), Battery
Fieldpiece Instruments JL3MN Single Port Wireless Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c.), ± 1.5% FS (2-60 In. W.c.), ± 0.001 PSI (0-0.072 PSI), ± 1.5% FS (0.072-2.165 PSI) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (Flexible Tubing), 0.177"-0.315" (ID, Tubing) Fitting Size, App-Based (Job Link), Battery
Fieldpiece Instruments JL3MN Single Port Wireless Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c.), ± 1.5% FS (2-60 In. W.c.), ± 0.001 PSI (0-0.072 PSI), ± 1.5% FS (0.072-2.165 PSI) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (Flexible Tubing), 0.177"-0.315" (ID, Tubing) Fitting Size, App-Based (Job Link), Battery
Fieldpiece Instruments JL3MN Single Port Wireless Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c.), ± 1.5% FS (2-60 In. W.c.), ± 0.001 PSI (0-0.072 PSI), ± 1.5% FS (0.072-2.165 PSI) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (Flexible Tubing), 0.177"-0.315" (ID, Tubing) Fitting Size, App-Based (Job Link), Battery
Fieldpiece Instruments JL3MN Single Port Wireless Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c.), ± 1.5% FS (2-60 In. W.c.), ± 0.001 PSI (0-0.072 PSI), ± 1.5% FS (0.072-2.165 PSI) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (Flexible Tubing), 0.177"-0.315" (ID, Tubing) Fitting Size, App-Based (Job Link), Battery

Fieldpiece Instruments JL3MN Single Port Wireless Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c.), ± 1.5% FS (2-60 In. W.c.), ± 0.001 PSI (0-0.072 PSI), ± 1.5% FS (0.072-2.165 PSI) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (Flexible Tubing), 0.177"-0.315" (ID, Tubing) Fitting Size, App-Based (Job Link), Battery

Fieldpiece Instruments JL3MN Single Port Wireless Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c.), ± 1.5% FS (2-60 In. W.c.), ± 0.001 PSI (0-0.072 PSI), ± 1.5% FS (0.072-2.165 PSI) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (Flexible Tubing), 0.177"-0.315" (ID, Tubing) Fitting Size, App-Based (Job Link), Battery

Manufacturer: Fieldpiece Instruments
Brand: Fieldpiece
Part #: 387501
MPN: JL3MN
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Accuracy      :      ± 0.02 in. w.c. (0-2 in. w.c.), ± 1.5% FS (2-60 in. w.c.), ± 0.001 PSI (0-0.072 PSI), ± 1.5% FS (0.072-2.165 PSI)
Additional Information      :      AAA Battery Size
Battery Life      :      150 hrs (Typical Alkaline)
Battery Type      :      AAA
Color      :      Black, Yellow
Connection Type      :      Tube Connector (Flexible Tubing)
Display Type      :      App-Based (Job Link)
Fitting Size      :      0.177"-0.315" (ID, Tubing)
Fluid Type      :      Dry Non-Corrosive Gas
Humidity Rating      :      75 %
Measuring Range      :      +/- 60 in. wc.
Mounting Type      :      Magnetic Mount, Handheld
Power Source      :      Battery
Pressure Rating      :      321.08 in. wc.
Resolution      :      0.01 in. wc.
Suitable For Use With      :      Static/Gas/Draft Pressure Measurement in HVACR Systems (Furnaces, Air Handlers, Ductwork)
Temperature Rating      :      -10-122 °F

Fieldpiece Instruments Single Port Wireless Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c.), ± 1.5% FS (2-60 In. W.c.), ± 0.001 PSI (0-0.072 PSI), ± 1.5% FS (0.072-2.165 PSI) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (Flexible Tubing), 0.177"-0.315" (ID, Tubing) Fitting Size, App-Based (Job Link), Battery, 150 Hrs (Typical Alkaline) Battery Life, AAA Battery, Dry Non-Corrosive Gas, 321.08 In. Wc., -10-122 °F, Magnetic Mount, Handheld, ≤75% Humidity Rating, Black, Yellow

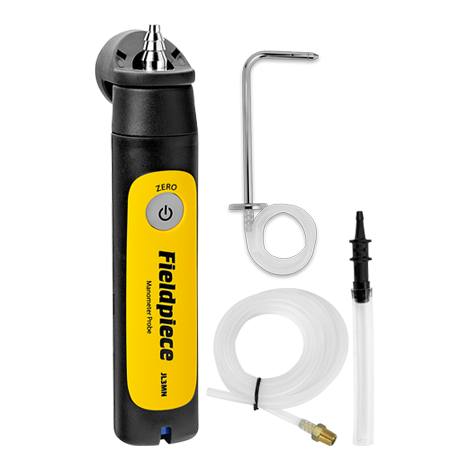

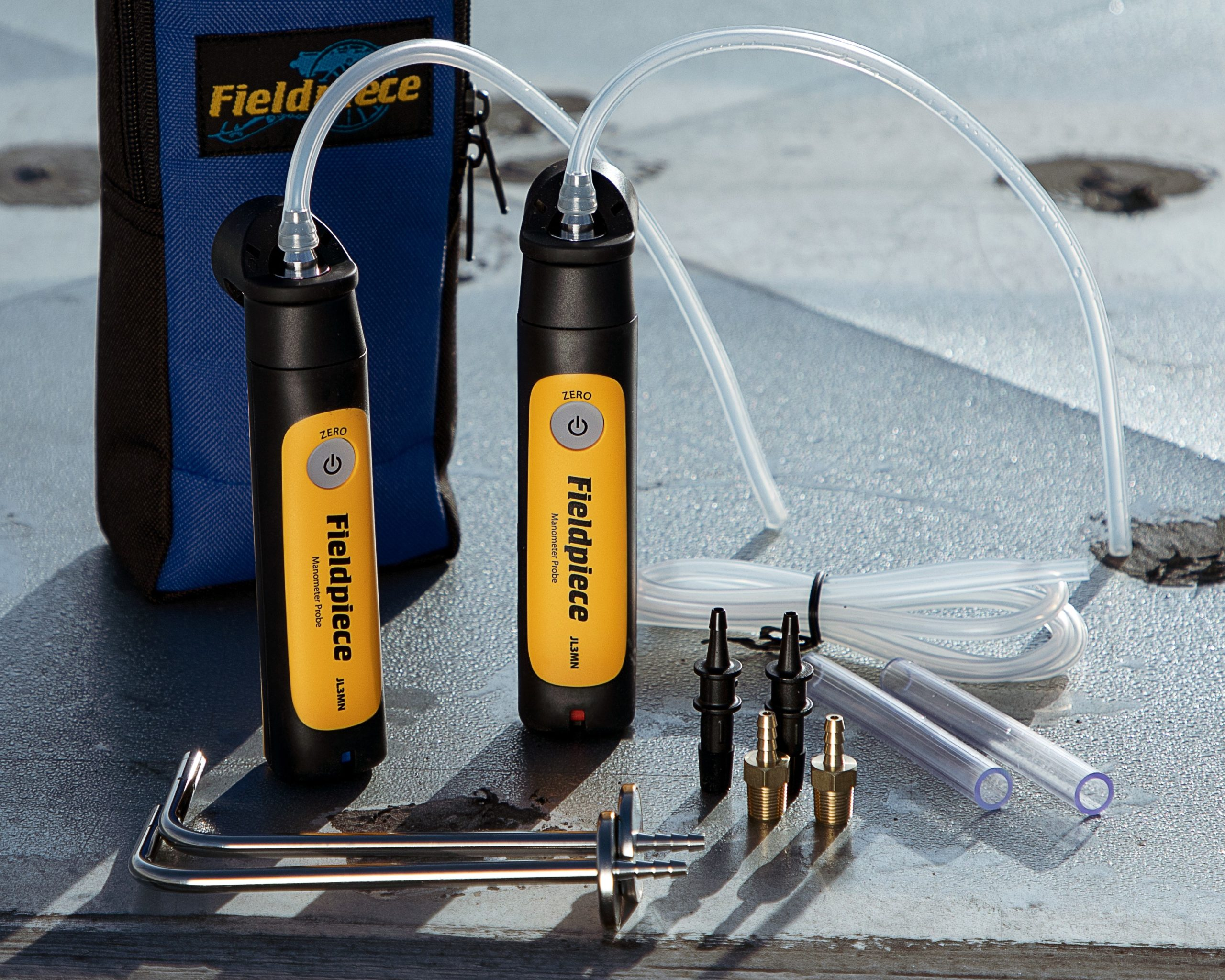

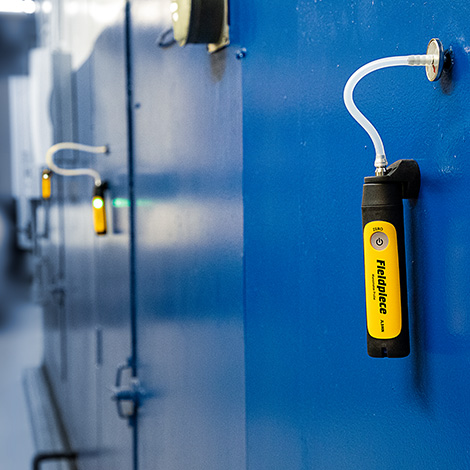

Features long-range wireless communication up to 1000 ft (line of sight) to the Job Link app.Provides versatile measurement for static pressure, gas pressure, and draft.Enables precise probe placement without restrictions from long hoses.Features a strong rotating magnet for secure, hands-free mounting.Compatible with the Fieldpiece Job Link® System App for viewing and documenting readings.Includes accessories for static and gas pressure applications (ASP2 probe, hose, brass fitting, gas adapter).Offers easy one-button zeroing to atmosphere.
