Nordic Technology FAST-STAT MODEL 9000 Wiring Extender, 20-28 VAC (Operating), 30 VAC (Max), 2 A (Max Load), Screw Terminals, Black
Nordic Technology FAST-STAT MODEL 9000 Wiring Extender, 20-28 VAC (Operating), 30 VAC (Max), 2 A (Max Load), Screw Terminals, Black

Nordic Technology FAST-STAT MODEL 9000 Wiring Extender, 20-28 VAC (Operating), 30 VAC (Max), 2 A (Max Load), Screw Terminals, Black

Nordic Technology FAST-STAT MODEL 9000 Wiring Extender, 20-28 VAC (Operating), 30 VAC (Max), 2 A (Max Load), Screw Terminals, Black

Manufacturer: Nordic Technology
Brand: FAST-STAT
Part #: 387856
MPN: MODEL 9000
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Amperage Rating      :      2 A (Max Load)
Color      :      Black
End Style      :      Screw Terminals
Series      :      FAST-STAT
Suitable For Use With      :      Air Conditioner to Single/2-Stage Heat Pump Conversions; Extending 2-Wire Cable Between Indoor (Furnace/Air Handler) and Outdoor Units; 24VAC Systems (Y1, Y2, O/B, W Signals), Zone Controllers, EIMs, Thermostats
Voltage Rating      :      20-28 VAC (Operating), 30 VAC (Max)

Nordic Technology Wiring Extender, Model: FAST-STAT, 20-28 VAC (Operating), 30 VAC (Max), 2 A (Max Load), Screw Terminals, Black

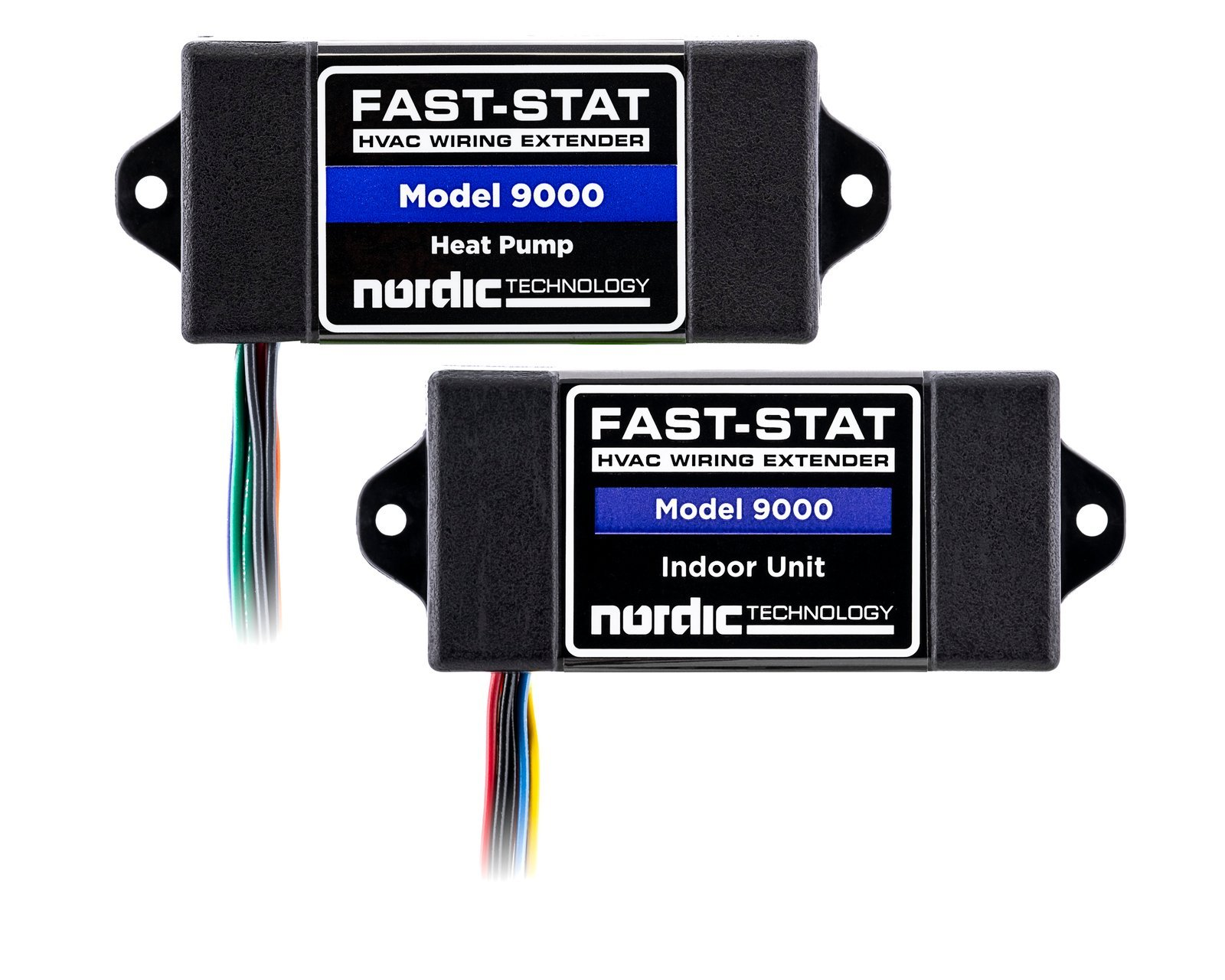

Simplifies AC to heat pump conversions by utilizing existing 2-wire condenser cables.Transmits Y1, Y2, O/B, and W signals for single or 2-stage heat pump operation.Eliminates the need to pull new wiring, reducing installation time and cost.Operates on standard 24 VAC control circuits (20-28 VAC).Features an optional built-in fossil fuel/supplemental heat control capability.Compatible with many thermostats, zone controllers, and Equipment Interface Modules (EIMs).Includes indoor unit and heat pump modules for straightforward installation.
