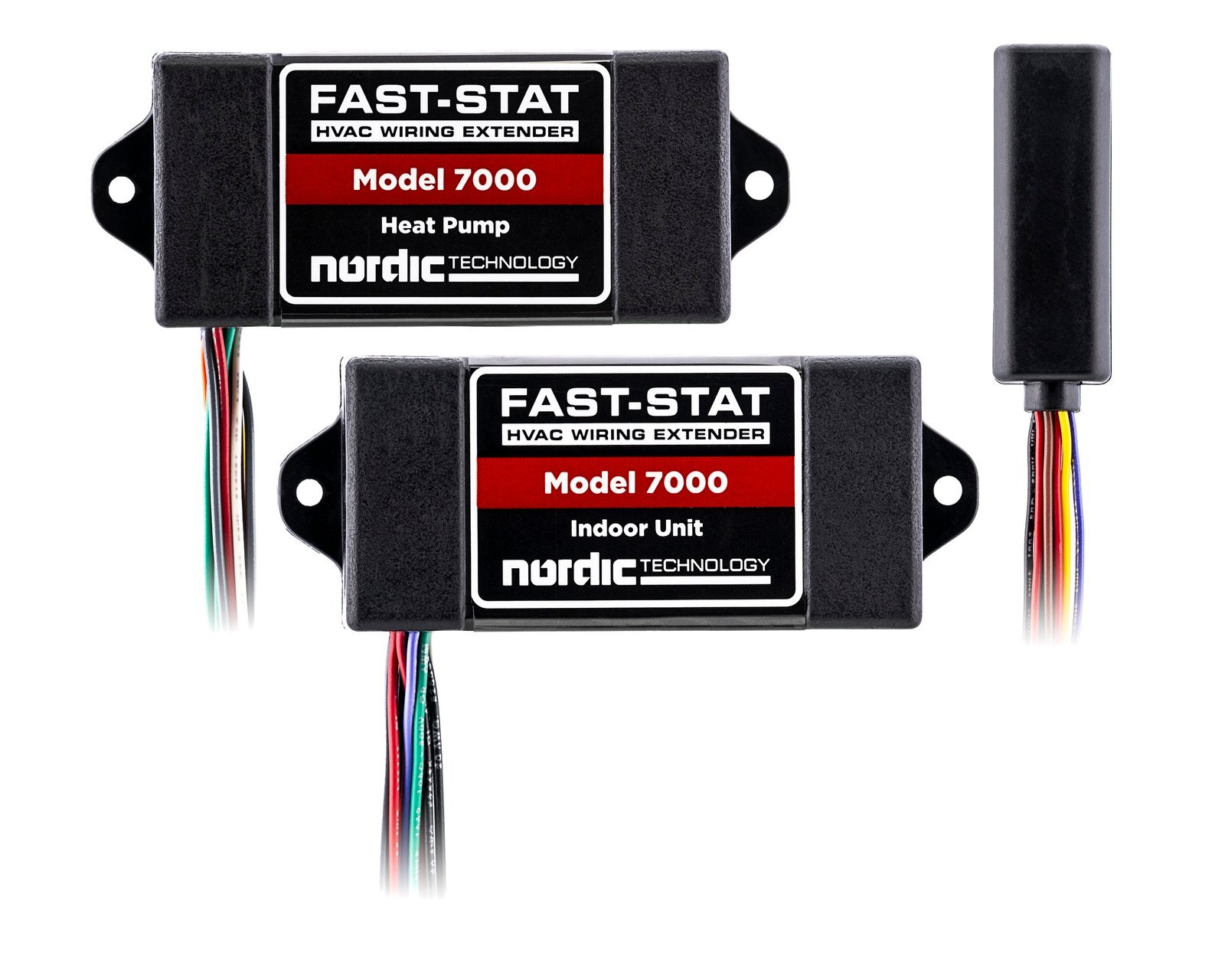

Nordic Technology FAST-STAT MODEL 7000 Wiring Extender, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Black

Amperage Rating	:	2 A (Max Load)
Color	:	Black
Series	:	FAST-STAT
Suitable For Use With	:	Air Conditioner to Heat Pump Conversions (Single or 2-Stage); Extending Wiring Between Thermostat, Indoor Unit, and Heat Pump
Voltage Rating	:	23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating)

Nordic Technology Wiring Extender, Model: FAST-STAT, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Black

Designed for single or two-stage air conditioner to heat pump conversions.Enables use of existing 4-wire thermostat and 2-wire condenser cables, saving installation time.Transmits full heat pump signals (R, C, G, Y1, Y2, W, O/B) over limited wiring.Provides R, C, G, Y1, Y2, W, and O/B over the 4-wire thermostat cable.Provides Y1, Y2, O/B, and W over the 2-wire condenser cable.Includes an integrated controller for optional fossil fuel or supplemental heat setups.Operates on standard Class 2 transformer power (23-38VAC) with a maximum load of 2 amps.
