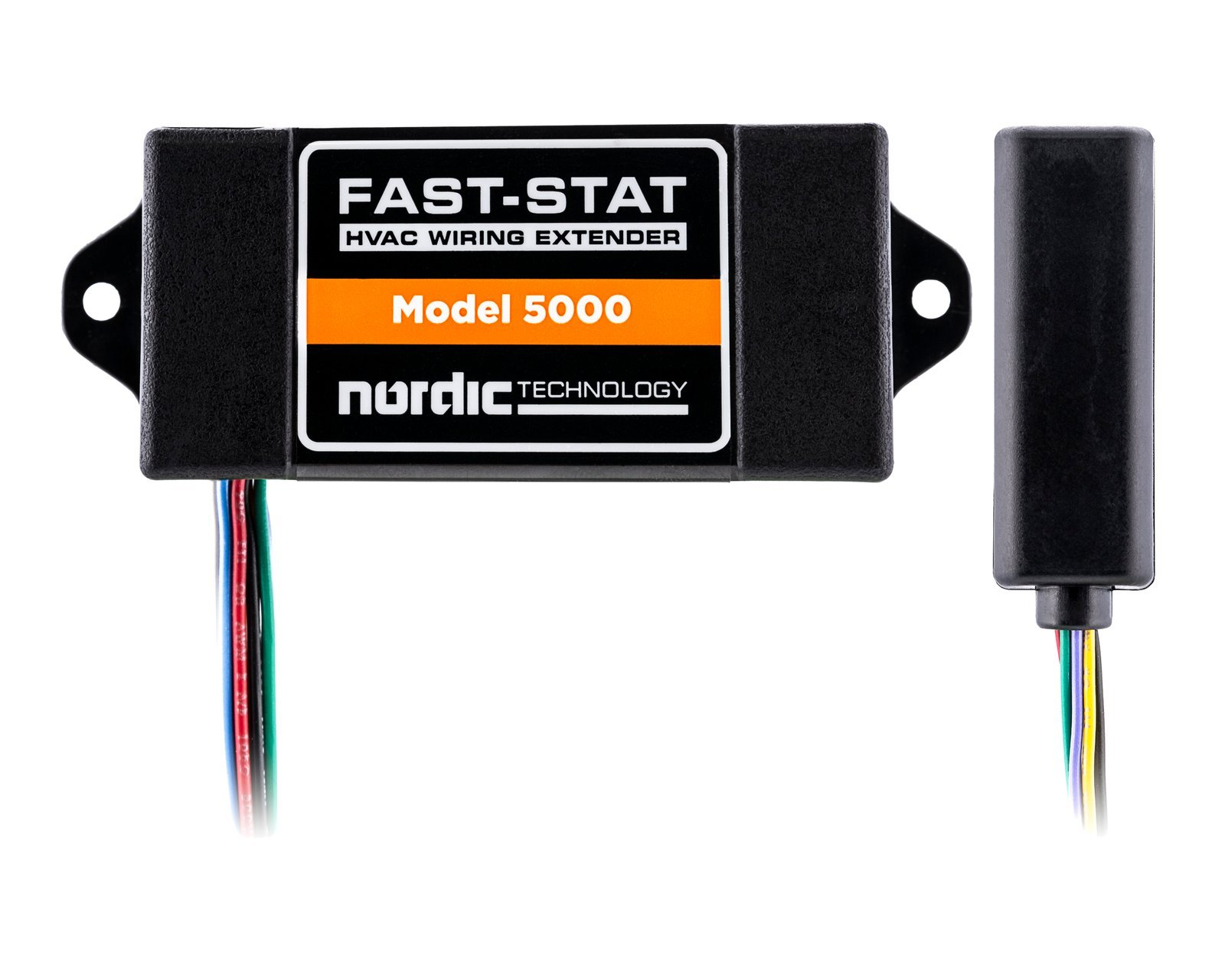

Nordic Technology FAST-STAT MODEL 5000 Wiring Extender, 4 (Adds, 3 Control + Common 'C' Using A 2-Wire Cable) Conductors, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Bare Wire, Copper, Black
Nordic Technology FAST-STAT MODEL 5000 Wiring Extender, 4 (Adds, 3 Control + Common 'C' Using A 2-Wire Cable) Conductors, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Bare Wire, Copper, Black

Nordic Technology FAST-STAT MODEL 5000 Wiring Extender, 4 (Adds, 3 Control + Common 'C' Using A 2-Wire Cable) Conductors, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Bare Wire, Copper, Black

Nordic Technology FAST-STAT MODEL 5000 Wiring Extender, 4 (Adds, 3 Control + Common 'C' Using A 2-Wire Cable) Conductors, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Bare Wire, Copper, Black

Manufacturer: Nordic Technology
Brand: FAST-STAT
Part #: 387854
MPN: MODEL 5000
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Amperage Rating      :      2 A (Max Load)
Color      :      Black
End Style      :      Bare Wire
Material      :      Copper
Number of Conductors      :      4 (Adds, 3 Control + Common 'C' Using A 2-Wire Cable)
Series      :      FAST-STAT
Suitable For Use With      :      Most 24VAC Heating And Cooling Systems; Thermostats; Indoor Units
Voltage Rating      :      23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating)

Nordic Technology Wiring Extender, Model: FAST-STAT, 4 (Adds, 3 Control + Common 'C' Using A 2-Wire Cable) Conductors, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Bare Wire, Copper, Black

Adds 3 control wires plus a common 'C' connection using an existing 2-wire thermostat cable.Enables 6-wire control (e.g., R, C, G, Y, W1, W2) over 2 wires, or 8-wire control over 4 wires.Eliminates the need to pull new thermostat wire, saving installation time and cost.Compatible with most standard 24VAC heating and cooling systems.Operates on 23-28 VAC power with a maximum connected load of 2 amps.Intended for extending wiring between the thermostat and indoor unit only.
