| Amperage Rating | : | 2 A Full Load |
| Bearing Type | : | Sleeve |
| Dimensions | : | 5 in Dia x 3-1/8 in L |
| Duty Type | : | Air Over |
| Frame Size | : | 42 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/20 hp |
| Insulation Class | : | A |
| Motor Enclosure Type | : | Totally Enclosed |
| Mounting Type | : | Stud |
| Number of Poles | : | 6 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 0.04 kW |
| Rotation Type | : | Clockwise Shaft End |
| Service Factor | : | 1 |
| Shaft Size | : | 3/8 in Dia x 3 in L |
| Shaft Type | : | Flat |
| Speed Rating | : | 1050 rpm |
| Starting Method | : | Across the Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115 V |

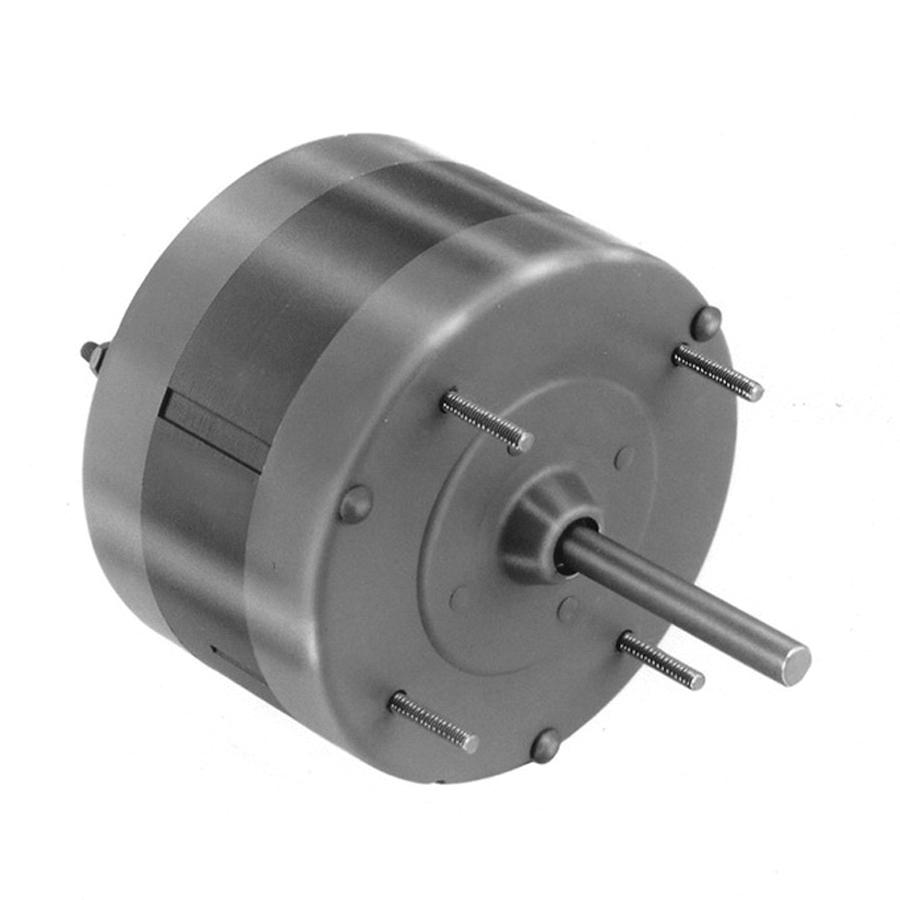

Fasco® Motor, 115 V, 2 A Full Load, 1/20 hp, 1050 rpm, 0.04 kW, 1 ph Phase, 60 Hz, Totally Enclosed Motor Enclosure, 42 Frame, 3/8 in Dia x 3 in L Shaft, Clockwise Shaft End Rotation, 1 Speed, Flat Shaft Type, Sleeve Bearing, Stud Mounting, Air Over, A Insulation Class, 6 Poles, 1 Service Factor, Across the Line Starting Method, 40 deg C, 5 in Dia x 3-1/8 in L
- Automatic thermal protection
