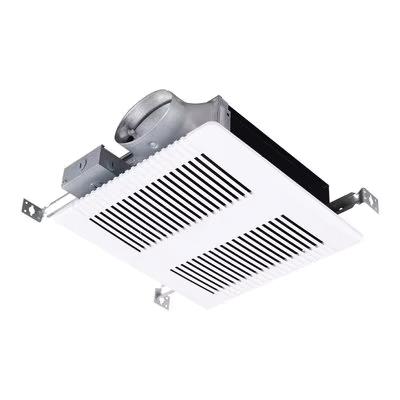

fantech® Pro Series 98500 Bathroom Fan, 120 V, 0.35 A

fantech® Pro Series 98500 Bathroom Fan, 120 V, 0.35 A

Brand: fantech®
Part #: 90082
Customer Part #:
Amperage Rating      :      0.35 A
CFM Rating      :      80 cfm
Coverage Area      :      130 sq-ft
Duct Size      :      4 in
Enclosure Type      :      IP44
Frequency Rating      :      60 Hz
Mounting Type      :      Ceiling, Wall
Overall Height      :      3-3/4 in
Overall Length      :      13 in
Overall Width      :      13-3/4 in
Phase      :      1 ph
Power Rating      :      26 W
Series      :      Pro Series
Speed Rating      :      1065 rpm
Temperature Rating      :      23 to 104 deg F
Voltage Rating      :      120 V

fantech® Bathroom Fan, Pro Series, 120 V, 0.35 A, 60 Hz, 26 W, Ceiling, Wall Mounting, 23 to 104 deg F, 4 in Duct, IP44 Enclosure, 80 cfm, 130 sq-ft Coverage Area, 1 ph Phase, 1065 rpm, 13 in Overall Length, 13-3/4 in Overall Width, 3-3/4 in Overall Height

  • Quiet Operation
  • Ceiling/Wall Mounting
  • Low Profile Design
  • High Efficiency
