| Additional Information | : | 8-3/4 in L x 1-3/4 in W |
| Amperage Rating | : | 0.145 A |
| Housing Material | : | Polystyrene |
| Suitable For Use With | : | Ultra-Zone® URD, ND and SID Dampers with MA-ND5 or MA-15S Floating Point Motors |
| Temperature Rating | : | 0 to 160 deg F |
| Voltage Rating | : | 24 V |

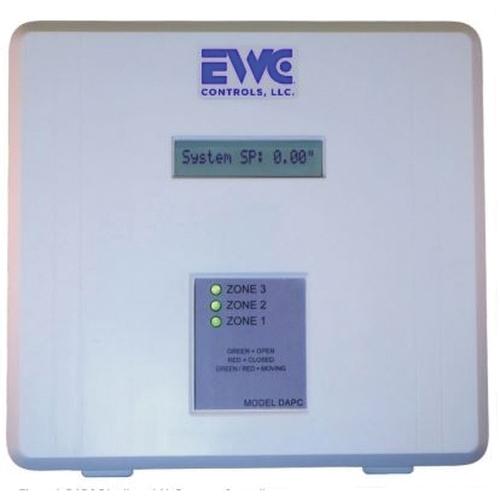

The model DAPC can monitor your HVAC system static pressure and the zone damper "Open and Close" commands from your EWC® zone controller. When the static pressure gets too high, the DAPC will modulate "Float" any closed zone dampers towards the open position, in order to control the static pressure. Use the DAPC's default static pressure set point (0.5 in-WC) or select a set point from the menu. If preferred, customize and let the DAPC "discover" the actual "non-zoned" static pressure of your HVAC system and adopt that value as the static pressure set-point. If you don't have enough room to install a bypass, the DAPC is your best airflow management solution.
EWC® Distributed Air Pressure Controller, 24 V, 0.145 A, 0 to 160 deg F, Polystyrene Housing, For Use With: Ultra-Zone® URD, ND and SID Dampers with MA-ND5 or MA-15S Floating Point Motors, Additional Information: 8-3/4 in L x 1-3/4 in W
