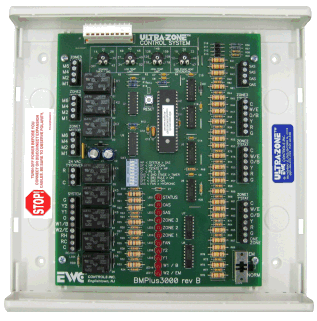

EWC Controls BMPlus BMPLUS-3000 Zone Control Panel, 3-7 (Expandable) Zones, 2 H / 2 C (Gas/Electric/Hydro), 3 H / 2 C (Heat Pump Conventional Or Dual Fuel), 18-30 VAC, Auto Changeover, 15 VA, 18 AWG (Solid Copper) Wire Size, -20-160 °F Temperature Rating

Amperage Rating	:	4 A
Changeover	:	Auto
Dimensions	:	9-7/8" H x 10" W x 1-7/10" D
Domestic/Import	:	Domestic
Frequency Rating	:	50 Hz, 60 Hz
Humidity Rating	:	0-95% RH (Non-Condensing)
Number of Zones	:	3-7 (Expandable)
Series	:	BMPlus
Stages	:	2 H / 2 C (Gas/Electric/Hydro), 3 H / 2 C (Heat Pump Conventional or Dual Fuel)
Temperature Rating	:	-20-160 °F
VA Rating	:	15 VA
Voltage Rating	:	18-30 VAC
Wire Size	:	18 AWG (Solid Copper)

EWC Controls Zone Control Panel, Model: BMPlus, 3-7 (Expandable) Zones, 2 H / 2 C (Gas/Electric/Hydro), 3 H / 2 C (Heat Pump Conventional Or Dual Fuel), 18-30 VAC, Auto Changeover, 15 VA, 18 AWG (Solid Copper) Wire Size, -20-160 °F Temperature Rating, 0-95% RH (Non-Condensing), 9-7/8" H x 10" W x 1-7/10" D Dimensions, 50 Hz, 60 Hz, Domestic

Controls up to 3 zones standard, expandable up to 7 zones with optional XM-2 modules.Compatible with conventional (up to 2H/2C), heat pump (up to 3H/2C), and dual fuel systems.Includes an adjustable supply air sensor (SAS) to protect HVAC equipment.Allows staging via adjustable on-board timer (7-42 min) or optional outdoor air sensor (OAS).Features on-board LEDs for easy system status diagnosis.Supports automatic changeover and works with standard single-stage thermostats.Offers a "one zone" mode for simplified operation during unoccupied periods.
