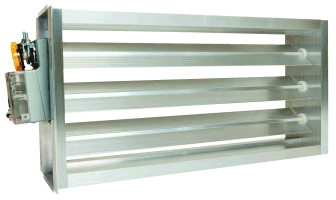

EWC Controls ND Series 16X12 ND Rectangular Motorized Damper, 16" x 12" Opening Size, Rectangular, 24 VAC, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return, 18 in-lb
EWC Controls ND Series 16X12 ND Rectangular Motorized Damper, 16" x 12" Opening Size, Rectangular, 24 VAC, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return, 18 in-lb

EWC Controls ND Series 16X12 ND Rectangular Motorized Damper, 16" x 12" Opening Size, Rectangular, 24 VAC, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return, 18 in-lb

EWC Controls ND Series 16X12 ND Rectangular Motorized Damper, 16" x 12" Opening Size, Rectangular, 24 VAC, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return, 18 in-lb

Manufacturer: EWC Controls, Inc
Brand: EWC®
Part #: 382336
MPN: 16X12 ND
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Amperage Rating      :      1.5 A
Blade Type      :      Overlapping Parallel
Color      :      Silver
Dimensions      :      12" H x 16" W x 4" D
Domestic/Import      :      Domestic
Electrical Connection      :      Quick Connecting Terminal Block, 3-Wire
Finish      :      Mill Finish (Extruded Aluminum)
Frequency Rating      :      50 Hz, 60 Hz
Height      :      21
Length      :      14
Material Standard      :      UL Listed (Motor Actuator), NEMA 1 (Motor Housing)
Material      :      Extruded Aluminum (Frame/Blades), Nylon (Bearings)
Model      :      16X12 ND
Motor Specifications      :      24 VAC, 3-Wire Power Open/Power Close (Floating Function), 18 in-lb Torque, NEMA 1 Housing, UL Listed
Motor Type      :      Power Open/Power Close, Non-Spring Return
Mounting Type      :      Slip-In, Side/Bottom Mount (Motor)
Opening Size      :      16" x 12"
Phase      :      1
Pressure Rating      :      1.5 in. wc.
Rated Velocity      :      1,500 fpm
Series      :      ND Series
Shape      :      Rectangular
Size      :      16" x 12"
Temperature Rating      :      185 °F (Maximum, Operating)
Timing Range      :      40 seconds
Torque Rating      :      18 in-lb
Voltage Rating      :      24 VAC
Width      :      7

EWC Controls Rectangular Motorized Damper, Model: ND Series, 16" x 12" Opening Size, Rectangular, 24 VAC, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return, 18 in-lb, 40 Seconds Timing Range, 24 VAC, 3-Wire Power Open/Power Close (Floating Function), 18 in-lb Torque, NEMA 1 Housing, UL Listed, 12" H x 16" W x 4" D Dimensions, Quick Connecting Terminal Block, 3-Wire Electrical Connection, Extruded Aluminum (Frame/Blades), Nylon (Bearings), UL Listed (Motor Actuator), NEMA 1 (Motor Housing), Mill Finish (Extruded Aluminum), Silver, Overlapping Parallel, 1,500 FPM, 1.5 A, 185 °F (Maximum, Operating), 50 Hz, 60 Hz, 1 Phase, Domestic

Heavy-duty extruded aluminum frame and overlapping parallel blades ensure durability and low leakage.Nylon bushings provide quiet damper operation.Reliable 24 VAC, 3-wire power open/power close motor delivers 18 in-lbs of torque.Integrated green and red LEDs visually indicate damper open and closed status.Quick-connect terminal block simplifies wiring installation.Adjustable end stops allow setting minimum and maximum open positions.UL Listed motor actuator ensures compliance and reliability.Includes a 5-year parts warranty.
