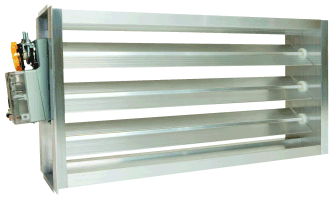

EWC Controls ND Series 14X14 ND Rectangular Motorized Damper, 14" x 14" Opening Size, Rectangular, 24 VAC, 820 CFM, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return

Amperage Rating	:	1.5 A
Blade Type	:	Overlapping Parallel
CFM Rating	:	820 CFM
Color	:	Silver
Dimensions	:	14" H x 14" W x 4" D
Domestic/Import	:	Domestic
Electrical Connection	:	Quick Connecting Terminal Block, 3-Wire
Finish	:	Mill Finish (Extruded Aluminum)
Frequency Rating	:	50 Hz, 60 Hz
Height	:	21
Length	:	14
Material Standard	:	UL Listed (Motor Actuator), NEMA 1 (Motor Housing)
Material	:	Extruded Aluminum (Frame/Blades), Nylon (Bearings)
Model	:	14X14 ND
Motor Specifications	:	24 VAC, 3-Wire Power Open/Power Close (Floating Function), 18 in-lb Torque, NEMA 1 Housing, UL Listed
Motor Type	:	Power Open/Power Close, Non-Spring Return
Mounting Type	:	Slip-In, Side/Bottom Mount (Motor)
Opening Size	:	14" x 14"
Phase	:	1
Pressure Rating	:	1.5 in. wc.
Rated Velocity	:	1,500 fpm
Series	:	ND Series
Shape	:	Rectangular
Size	:	14" x 14"
Temperature Rating	:	185 °F (Maximum, Operating)
Timing Range	:	40 seconds
Torque Rating	:	18 in-lb
Voltage Rating	:	24 VAC
Width	:	7

EWC Controls Rectangular Motorized Damper, Model: ND Series, 14" x 14" Opening Size, Rectangular, 24 VAC, 820 CFM, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return, 18 in-lb, 40 Seconds Timing Range, 24 VAC, 3-Wire Power Open/Power Close (Floating Function), 18 in-lb Torque, NEMA 1 Housing, UL Listed, 14" H x 14" W x 4" D Dimensions, Quick Connecting Terminal Block, 3-Wire Electrical Connection, Extruded Aluminum (Frame/Blades), Nylon (Bearings), UL Listed (Motor Actuator), NEMA 1 (Motor Housing), Mill Finish (Extruded Aluminum), Silver, Overlapping Parallel, 1,500 FPM, 1.5 A, 185 °F (Maximum, Operating), 50 Hz, 60 Hz, 1 Phase, Domestic

Heavy-duty 0.80†extruded aluminum frame and blades provide durability.Nylon bearings ensure quiet operation.Overlapping parallel blade design minimizes air leakage (rated up to 1.5" w.c.).Reliable 24 VAC, 18 in-lb power open/power close motor ensures consistent actuation.Integrated green and red LEDs provide visual confirmation of damper position.Adjustable end stops allow for minimum and maximum position settings for airflow control.UL Listed motor actuator with NEMA 1 housing ensures safety and compliance.
