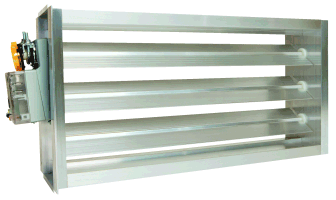

EWC Controls ND Series 10X10 ND Rectangular Motorized Damper, 10" x 10" Opening Size, Rectangular, 24 VAC, 360 CFM, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return
EWC Controls ND Series 10X10 ND Rectangular Motorized Damper, 10" x 10" Opening Size, Rectangular, 24 VAC, 360 CFM, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return
EWC Controls ND Series 10X10 ND Rectangular Motorized Damper, 10" x 10" Opening Size, Rectangular, 24 VAC, 360 CFM, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return

EWC Controls ND Series 10X10 ND Rectangular Motorized Damper, 10" x 10" Opening Size, Rectangular, 24 VAC, 360 CFM, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return

EWC Controls ND Series 10X10 ND Rectangular Motorized Damper, 10" x 10" Opening Size, Rectangular, 24 VAC, 360 CFM, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return

Manufacturer: EWC Controls, Inc
Brand: EWC®
Part #: 381911
MPN: 10X10 ND
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Amperage Rating      :      1.5 A
Blade Type      :      Overlapping Parallel
CFM Rating      :      360 CFM
Color      :      Silver
Dimensions      :      10" H x 10" W x 4" D
Domestic/Import      :      Domestic
Electrical Connection      :      Quick Connecting Terminal Block, 3-Wire
Finish      :      Mill Finish (Extruded Aluminum)
Frequency Rating      :      50 Hz, 60 Hz
Height      :      17
Length      :      14
Material Standard      :      UL Listed (Motor Actuator), NEMA 1 (Motor Housing)
Material      :      Extruded Aluminum (Frame/Blades), Nylon (Bearings)
Model      :      10X10 ND
Motor Specifications      :      24 VAC, 3-Wire Power Open/Power Close (Floating Function), 18 in-lb Torque, NEMA 1 Housing, UL Listed
Motor Type      :      Power Open/Power Close, Non-Spring Return
Mounting Type      :      Slip-In, Side/Bottom Mount (Motor)
Opening Size      :      10" x 10"
Phase      :      1
Pressure Rating      :      1.5 in. wc.
Rated Velocity      :      1,500 fpm
Series      :      ND Series
Shape      :      Rectangular
Size      :      10" x 10"
Temperature Rating      :      185 °F (Maximum, Operating)
Timing Range      :      40 seconds
Torque Rating      :      18 in-lb
Voltage Rating      :      24 VAC
Width      :      7

EWC Controls Rectangular Motorized Damper, Model: ND Series, 10" x 10" Opening Size, Rectangular, 24 VAC, 360 CFM, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return, 18 in-lb, 40 Seconds Timing Range, 10" H x 10" W x 4" D Dimensions, Quick Connecting Terminal Block, 3-Wire Electrical Connection, Extruded Aluminum (Frame/Blades), Nylon (Bearings), UL Listed (Motor Actuator), NEMA 1 (Motor Housing), Mill Finish (Extruded Aluminum), Silver, Overlapping Parallel, 1,500 FPM, 1.5 A, 185 °F (Maximum, Operating), 50 Hz, 60 Hz, 1 Phase, Domestic

Constructed with a heavy-duty extruded aluminum frame and blades for durability.Features nylon bushings for quiet, maintenance-free operation.Overlapping parallel blades provide a tight seal, rated at 97% leak-proof.Equipped with a reliable UL Listed 24 VAC, 3-wire, power-open/power-close motor actuator rated at 18 in-lbs torque.Bright LED indicators clearly show damper open and closed status for easy diagnostics.Includes integrated end-stop adjustments for setting minimum airflow or maximum open positions.Features a quick-connecting terminal block for simple, trouble-free wiring.Backed by a 5-year parts warranty.
