EWC Controls CLBD Series Constant Load Bypass Damper, 700 CFM, 10" Diameter, Manual, Barometric Bypass, Round, Round Duct Connection, In-Duct Mount, 0.3 In. Wc. - 0.8 In. Wc. (Adjustable) Pressure Rating
EWC Controls CLBD Series Constant Load Bypass Damper, 700 CFM, 10" Diameter, Manual, Barometric Bypass, Round, Round Duct Connection, In-Duct Mount, 0.3 In. Wc. - 0.8 In. Wc. (Adjustable) Pressure Rating
EWC Controls CLBD Series Constant Load Bypass Damper, 700 CFM, 10" Diameter, Manual, Barometric Bypass, Round, Round Duct Connection, In-Duct Mount, 0.3 In. Wc. - 0.8 In. Wc. (Adjustable) Pressure Rating

EWC Controls CLBD Series Constant Load Bypass Damper, 700 CFM, 10" Diameter, Manual, Barometric Bypass, Round, Round Duct Connection, In-Duct Mount, 0.3 In. Wc. - 0.8 In. Wc. (Adjustable) Pressure Rating

EWC Controls CLBD Series Constant Load Bypass Damper, 700 CFM, 10" Diameter, Manual, Barometric Bypass, Round, Round Duct Connection, In-Duct Mount, 0.3 In. Wc. - 0.8 In. Wc. (Adjustable) Pressure Rating

Manufacturer: EWC Controls, Inc
Brand: EWC®
Part #: 381842
MPN: 10 CLBD
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
CFM Rating      :      700 CFM
Connection Type      :      Round Duct
Control Type      :      Manual, Barometric Bypass
Diameter      :      10 "
Domestic/Import      :      Domestic
Finish      :      Galvanized
Height      :      12
Length      :      12 "
Material      :      Galvanized Steel
Model      :      10 CLBD
Mounting Type      :      In-Duct Mount
Pressure Rating      :      0.3 in. wc. - 0.8 in. wc. (Adjustable)
Series      :      CLBD Series
Shape      :      Round
Size      :      10" Diam x 12" L
Width      :      12

EWC Controls Constant Load Bypass Damper, Model: CLBD Series, 700 CFM, 10" Diameter, Manual, Barometric Bypass, Round, Round Duct Connection, In-Duct Mount, 0.3 In. Wc. - 0.8 In. Wc. (Adjustable) Pressure Rating, Galvanized Steel, 12" Length, Domestic, Galvanized

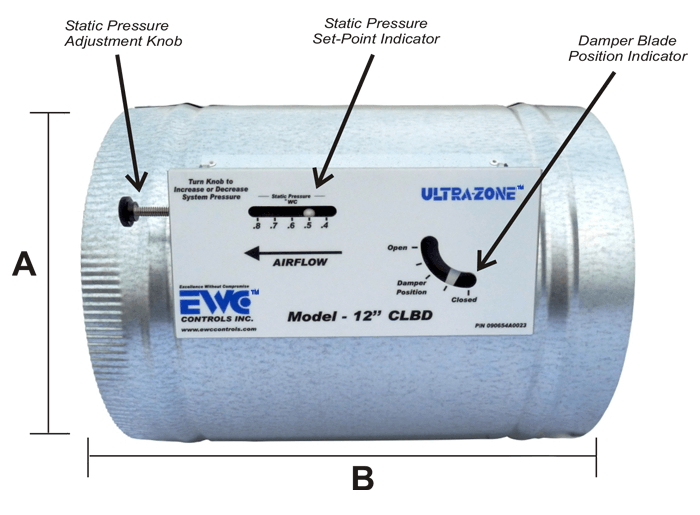

Provides an economical solution for managing static pressure in zoned HVAC systems.Features easy adjustment of static pressure settings from 0.3" WC to 0.8" WC.Unique constant load design and magnetic latch allow installation in any position.Minimizes bypass air volume while preventing static pressure from exceeding the set point.Suitable for both constant speed and variable speed zoned HVAC systems.Rated for 700 CFM airflow capacity.Factory set to 0.5" WC static pressure for quicker setup.
