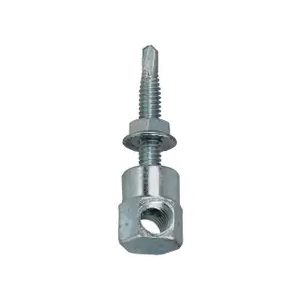

Dottie® SSM38SR Rod Hanger, 1/4-20 x 1-1/2 in Screw, 5/8 in Dia Head, Carbon Steel, Zinc-Plated
Dottie® SSM38SR Rod Hanger, 1/4-20 x 1-1/2 in Screw, 5/8 in Dia Head, Carbon Steel, Zinc-Plated
Manufacturer: L.H. Dottie
Brand: Dottie®
Part #: 389575
MPN: SSM38SR
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Additional Information | : | Side-Mount, 1/16 in THK Flange, 3/8 in Rod Size, UNC Thread, 1-1/2 in L Shank, 500 to 1500 rpm Drill Speed |
| Applicable Materials | : | Beams, Bar Joists and Steel Purlins |
| Finish | : | Zinc-Plated |
| Head Diameter | : | 5/8 in |
| Head Thread Length | : | 1-3/16 in |
| Material | : | Carbon Steel |
| Screw Size | : | 1/4-20 x 1-1/2 in |
| Screw Thread Length | : | 1-1/2 in |
Side-mount steel rod hangers are used in the sides of steel joists and beams to install threaded rod vertically. They feature a self-drilling tip that requires no pre-drilling and can easily be installed with a drill or screw gun. For proper installation and weight load data, reference the technical data sheet.
Dottie® Rod Hanger, 1/4-20 x 1-1/2 in Screw, 1-1/2 in Screw Thread Length, 1-3/16 in Head Thread Length, 5/8 in Head Dia, Carbon Steel, Zinc-Plated, Applicable Materials: Beams, Bar Joists and Steel Purlins, Additional Information: Side-Mount, 1/16 in THK Flange, 3/8 in Rod Size, UNC Thread, 1-1/2 in L Shank, 500 to 1500 rpm Drill Speed
- Self-drilling tip, no pre-drilling required, low torque to install
- Single-piece construction
